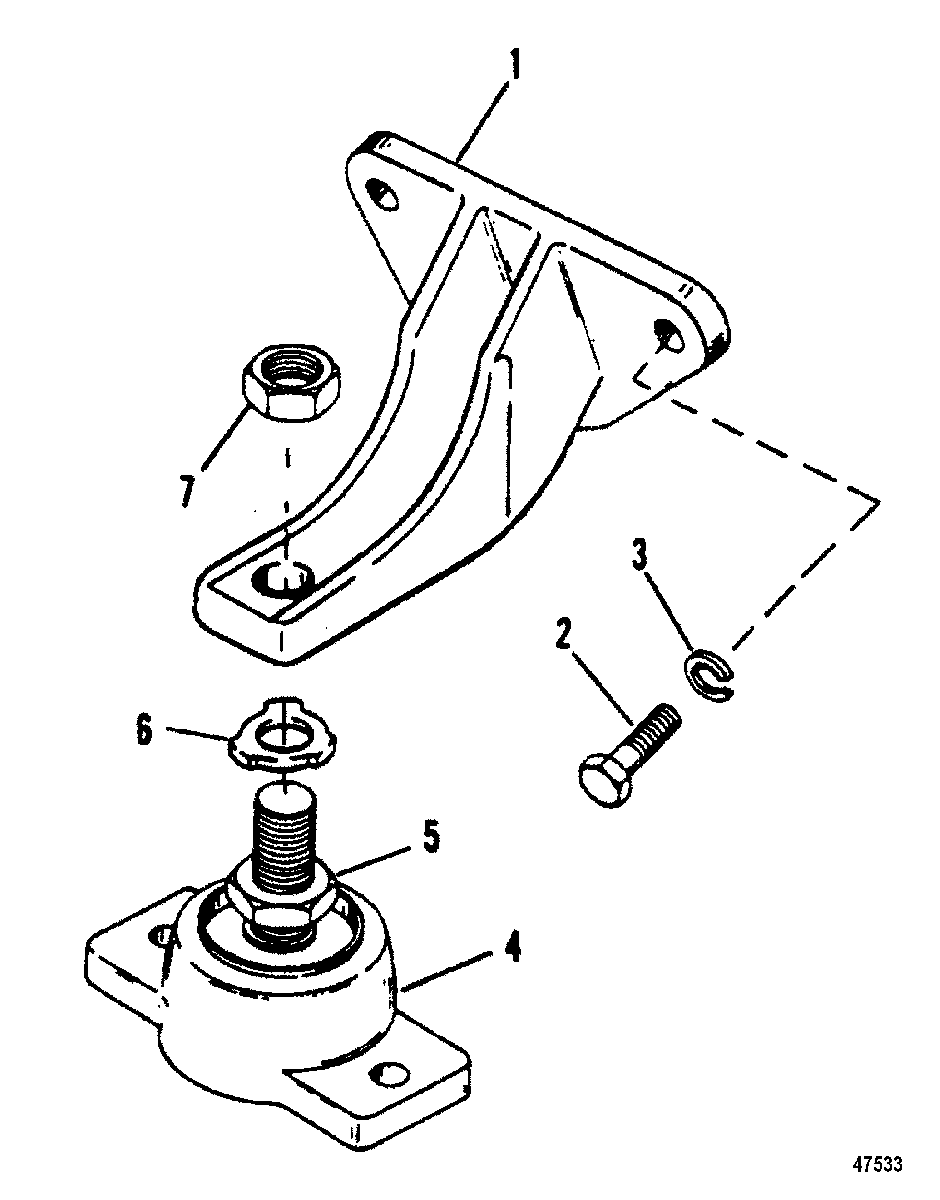

ENGINE MOUNTING для Mercruiser - 502 MAG. BRAVO (GEN. V) GM 502 V-8 1992-1993 0D824589 THRU 0F114528
-
№АртикулНазвание
-
179550A1 BRACKET (FRONT)BRACKET (FRONT)
-
210-68101 SCREW, (.375-16 x 1.375) (1-3/8")SCREW, (.375-16 x 1.375) (1-3/8")
-
313-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
4814263A1 BASE ASSEMBLYBASE ASSEMBLY
-
511-816331 NUT, (.750-16)NUT, (.750-16)
-
614-12657 TAB WASHERTAB WASHER
-
711-859126 NUTNUT
Все узлы модели:
- ALTERNATOR(MANDO)
- ALTERNATOR(MANDO) #AC155603
- ALTERNATOR(PRESTOLITE)
- AUDIO WARNING SYSTEM
- CARBURETOR AND LINKAGE
- CARBURETOR(WEBER)
- CRANKSHAFT, PISTONS, AND CONNECTION RODS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- • ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHASUT ELBOW
- EXHAUST PLATE
- FLAME ARRESTOR
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL FILTER AND ADAPTOR
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- SEA WATER PUMP
- SERVICE/SUPPORT MATERIAL
- SHIFT BRACKET
- STARTER AND ALTERNATOR
- STARTER MOTOR 2, 7/8" DIAMETER END CAP
- STARTER MOTOR 3, 1/4" DIAMETER END CAP
- THERMOSTAT HOUSING(STANDARD COOLING)
- WIRING HARNESS AND ELECTRICAL COMPONENTS(DISTRIBUTOR)
- WIRING HARNESS AND ELECTRICAL COMPONENTS(EXHAUST BELOW)
