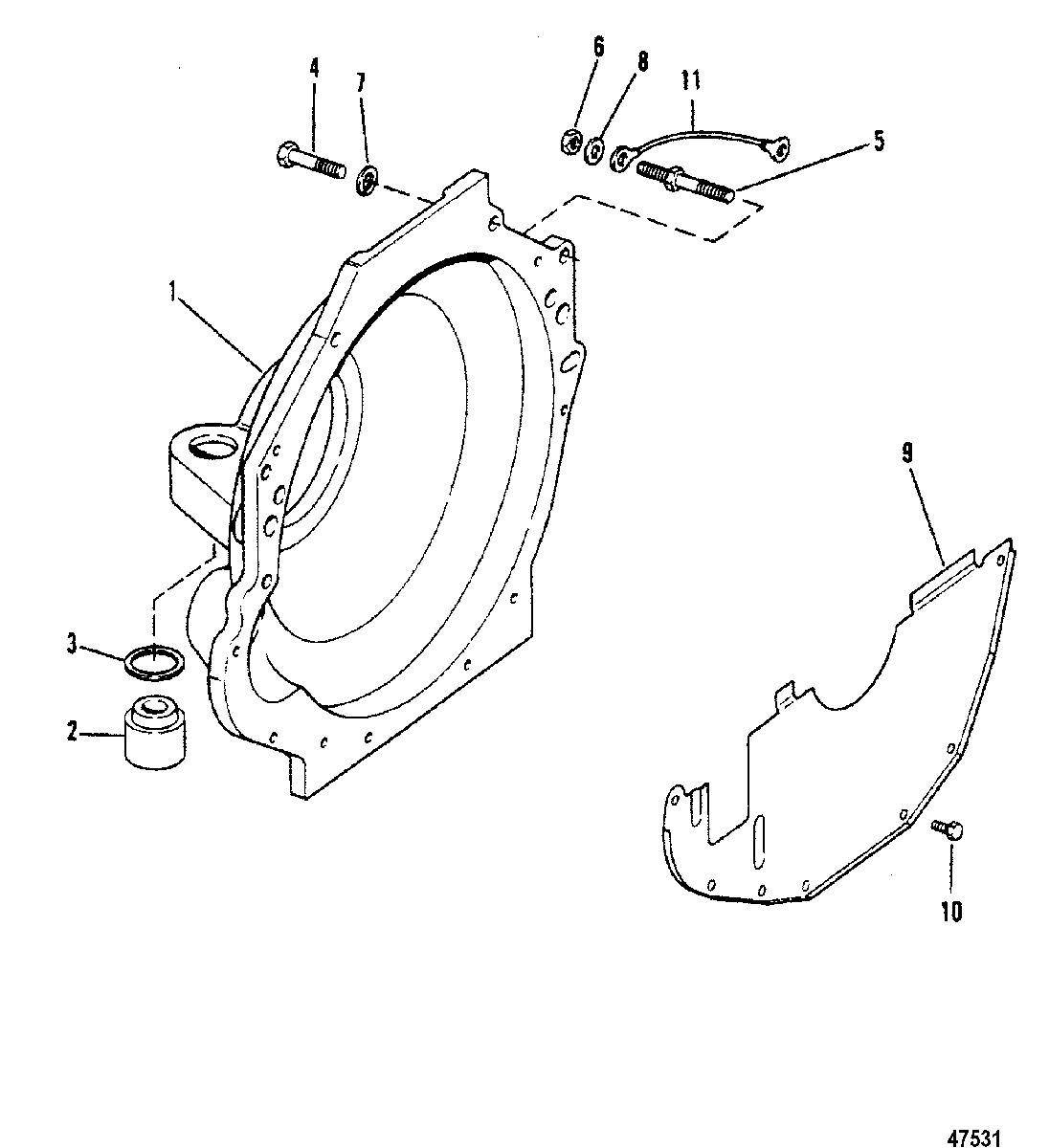

FLYWHEEL HOUSING для Mercruiser - 502 MAG. BRAVO (GEN. V) GM 502 V-8 1992-1993 0D824589 THRU 0F114528
-
№АртикулНазвание
-
1865657A04 HOUSING ASSEMBLY, FlywheelHOUSING ASSEMBLY, Flywheel
-
2865330A02 MOUNTMOUNT
-
323-99322 SPACERSPACER
-
410-37612 SCREW, (.375-16 x 1.250) (1-1/4")SCREW, (.375-16 x 1.250) (1-1/4")
-
410-358701 SCREW, (.375-16 x 2.00) (2")SCREW, (.375-16 x 2.00) (2")
-
516-861316 STUD, (.375-16 x 2.750) SpecialSTUD, (.375-16 x 2.750) Special
-
611-32219 NUT, (.375-16)NUT, (.375-16)
-
713-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
812-20572 WASHER, (.390 x .750 x .093)WASHER, (.390 x .750 x .093)
-
9807260A2 COVERCOVER
-
1010-32773 SCREW, (.250-20 x .875)SCREW, (.250-20 x .875)
-
1184-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) BlackCABLE ASSEMBLY, Ground (13.00 Inches) Black
