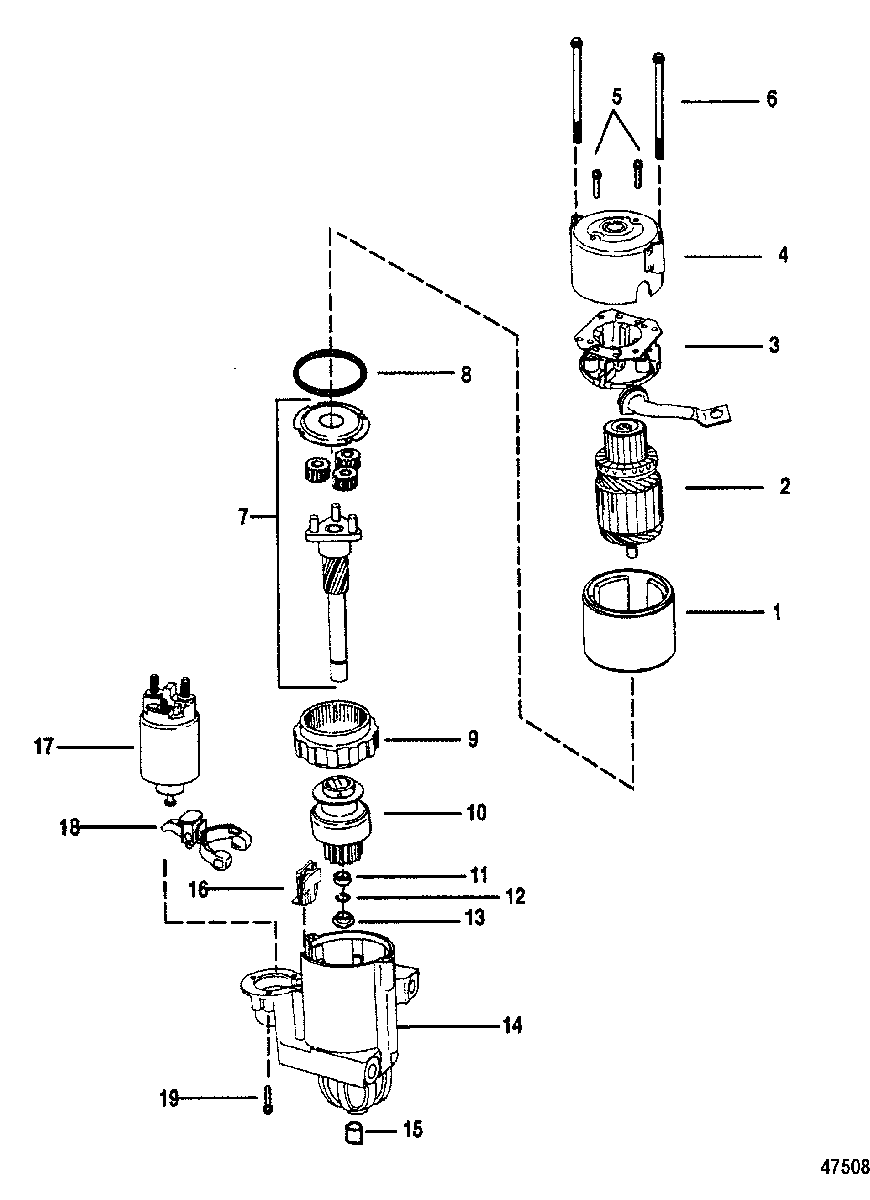

STARTER MOTOR 2, 7/8" DIAMETER END CAP для Mercruiser - 502 MAG. BRAVO (GEN. V) GM 502 V-8 1992-1993 0D824589 THRU 0F114528
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLY, 2-7/8 Diameter End CapSTARTER MOTOR ASSEMBLY, 2-7/8 Diameter End Cap
-
2809454 ARMATUREARMATURE
-
3809453 HOLDER, Brush And SpringHOLDER, Brush And Spring
-
4809452 FRAMEFRAME
-
510-809451 SCREWSCREW
-
610-809450 THRU BOLTTHRU BOLT
-
7809461 SHAFT AND GEARSHAFT AND GEAR
-
827-809460 GASKETGASKET
-
943-809455 GEARGEAR
-
10809456 DRIVEDRIVE
-
1133291 COLLARCOLLAR
-
1253-33290 RING, RetainingRING, Retaining
-
1323-809457 THRUST COLLARTHRUST COLLAR
-
14809459 HOUSINGHOUSING
-
1523-814476 BUSHINGBUSHING
-
1625-809465 GROMMETGROMMET
-
17809463A1 SOLENOIDSOLENOID
-
18809464 LEVERLEVER
-
1910-809466 SCREWSCREW
