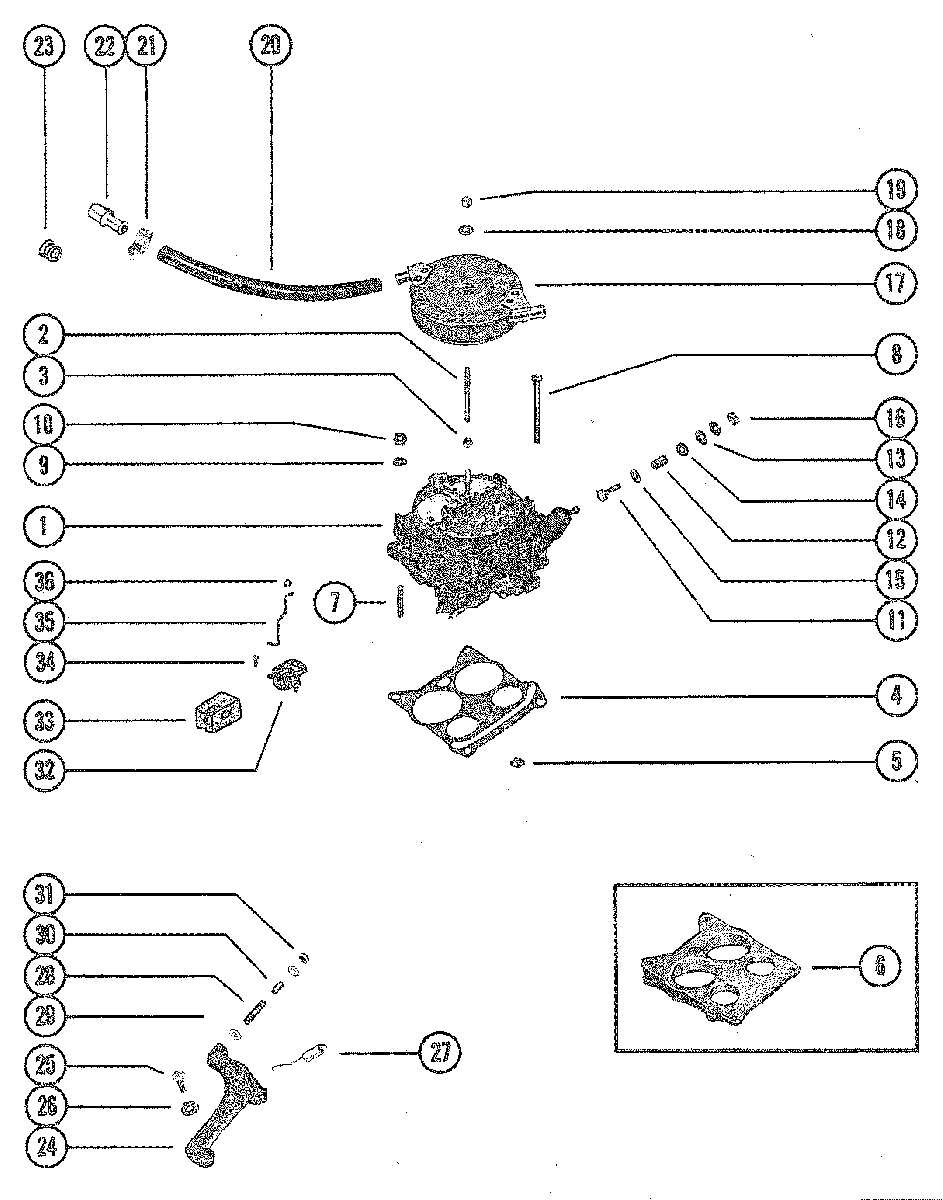

CARBURETOR AND AUTOMATIC CHOKE для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913
-
№АртикулНазвание
-
11347-804626R02 CARBURETOR ASSEMBLY (STERN DRIVE)CARBURETOR ASSEMBLY (STERN DRIVE)
-
11347-804626R02 CARBURETOR ASSEMBLY (INBOARD)CARBURETOR ASSEMBLY (INBOARD)
-
216-91842 STUD, FLAME ARRESTOR MOUNTING - CARBURETORSTUD, FLAME ARRESTOR MOUNTING - CARBURETOR
-
311-8267139 NUT, JAM - FLAME ARRESTOR MOUNTING STUD (BOTTOM)NUT, JAM - FLAME ARRESTOR MOUNTING STUD (BOTTOM)
-
427-524572 GASKET, CARBURETOR (FOR INBOARD ENGINE - QUANITITY OF 2)GASKET, CARBURETOR (FOR INBOARD ENGINE - QUANITITY OF 2)
-
522-12524 PLUG, INTAKE MANIFOLD VACUUM HOLEPLUG, INTAKE MANIFOLD VACUUM HOLE
-
653513A4 WEDGE, CARBURETOR MOUNTING (INBOARD)WEDGE, CARBURETOR MOUNTING (INBOARD)
-
716-46857 STUD, CARBURETOR MOUNTING (STERN DRIVE)STUD, CARBURETOR MOUNTING (STERN DRIVE)
-
716-63332 STUD, CARB. MTG. (1 1/4") INBOARDSTUD, CARB. MTG. (1 1/4") INBOARD
-
716-53722 STUD, CARB. MTG. (4 3/8") INBOARDSTUD, CARB. MTG. (4 3/8") INBOARD
-
716-54345 STUD, CARB. MTG. (1 5/16")INBOARD
SERIAL 00000000-04890179STUD, CARB. MTG. (1 5/16")INBOARD
SERIAL 00000000-04890179 -
716-53724 STUD, CARB. MTG. (1 3/4")INBOARD
SERIAL 04890180-09999999STUD, CARB. MTG. (1 3/4")INBOARD
SERIAL 04890180-09999999 -
810-74822 SCREW, CARBURETOR MOUNTING (STERN DRIVE)SCREW, CARBURETOR MOUNTING (STERN DRIVE)
-
912-20084 WASHER, CARB. (4 USED ON STERN DRIVE; 6 USED ON INBOARD)WASHER, CARB. (4 USED ON STERN DRIVE; 6 USED ON INBOARD)
-
1011-29250 NUT, CARB. (2 USED ON STERN DRIVE; 6 USED ON INBOARD)NUT, CARB. (2 USED ON STERN DRIVE; 6 USED ON INBOARD)
-
1110-98509 SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8")SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8")
-
1223-57938 BUSHING, THROTTLE CABLE SCREWBUSHING, THROTTLE CABLE SCREW
-
1323-34948 BUSHING, THROTTLE CABLE SCREWBUSHING, THROTTLE CABLE SCREW
-
1412-56681 WASHER, THROTTLE CABLE SCREWWASHER, THROTTLE CABLE SCREW
-
1512-847883 WASHER, THROTTLE CABLE SCREWWASHER, THROTTLE CABLE SCREW
-
1611-8267086 NUT, THROTTLE CABLE SCREWNUT, THROTTLE CABLE SCREW
-
17805298A1 FLAME ARRESTOR, CARUBRETORFLAME ARRESTOR, CARUBRETOR
-
1812-22937 WASGER, FLAME ARRESTOR STUD-METALWASGER, FLAME ARRESTOR STUD-METAL
-
1812-86400 WASHER, FLAME ARRESTOR STUD-RUBBERIZEDWASHER, FLAME ARRESTOR STUD-RUBBERIZED
-
1911-826709109 NUT, FLAME ARRESTOR STUDNUT, FLAME ARRESTOR STUD
-
2032-8M0062669 HOSE, VENT - CARBURETOR (9 3/4") -INBOARDHOSE, VENT - CARBURETOR (9 3/4") -INBOARD
-
2032-8M0062669 HOSE< VENT - CARBURETOR (8 1/4")
-2 USED ON STERN DRIVE; 1 USED ON INBOARDHOSE< VENT - CARBURETOR (8 1/4")
-2 USED ON STERN DRIVE; 1 USED ON INBOARD -
2154-53101 CLAMP, VENT HOSE ATTACHINGCLAMP, VENT HOSE ATTACHING
-
2247957 CONNECTOR, VENT HOSE TO ROCKER COVERCONNECTOR, VENT HOSE TO ROCKER COVER
-
2325-59987 GROMMET, ROCKER COVER TO VENT HOSE CONNECTORGROMMET, ROCKER COVER TO VENT HOSE CONNECTOR
-
24805359A02 BRACKET, MOUNTING - THROTTLE CABLE (STERN DRIVE)BRACKET, MOUNTING - THROTTLE CABLE (STERN DRIVE)
-
2457096 BRACKET, THROTTLE CABLE INBOARD
SERIAL 00000000-04890179BRACKET, THROTTLE CABLE INBOARD
SERIAL 00000000-04890179 -
2510-35386 SCREW, BRACKET TO MANIFOLD
SERIAL 00000000-04890179SCREW, BRACKET TO MANIFOLD
SERIAL 00000000-04890179 -
2449929 BRACKET, THROTTLE CABLE (INBOARD)
SERIAL 04890180-09999999BRACKET, THROTTLE CABLE (INBOARD)
SERIAL 04890180-09999999 -
2612-69056 WASHER, THROTTLE CABLE BRACKET SCREW AND STUDWASHER, THROTTLE CABLE BRACKET SCREW AND STUD
-
2724-897454 SPRING, THROTTLE RETURNSPRING, THROTTLE RETURN
-
2816-35897 STUD, THROTTLE CABLE TO MOUNTING BRACKET (1 11/16")STUD, THROTTLE CABLE TO MOUNTING BRACKET (1 11/16")
-
2912-69056 WASHER, THROTTLE CABLE STUDWASHER, THROTTLE CABLE STUD
-
3023-31866 SPACER, THROTTLE CABLE STUDSPACER, THROTTLE CABLE STUD
-
3111-826709109 NUT, THROTTLE CABLE STUDNUT, THROTTLE CABLE STUD
-
3266205 CHOKE, AUTOMATIC - CARBURETORCHOKE, AUTOMATIC - CARBURETOR
-
3363922 COVER, AUTOMATIC CHOKECOVER, AUTOMATIC CHOKE
-
3410-69235 SCREW, AUTOMATIC CHOKE THERMOSTAT (5/8")SCREW, AUTOMATIC CHOKE THERMOSTAT (5/8")
-
3577931 ROD, AUTOMATIC CHOKE (STERN DRIVE)ROD, AUTOMATIC CHOKE (STERN DRIVE)
-
3566197 ROD, AUTOMATIC CHOKE (INBOARD)ROD, AUTOMATIC CHOKE (INBOARD)
-
3654-59989 CLIP, AUTOMATIC CHOKE RODCLIP, AUTOMATIC CHOKE ROD
