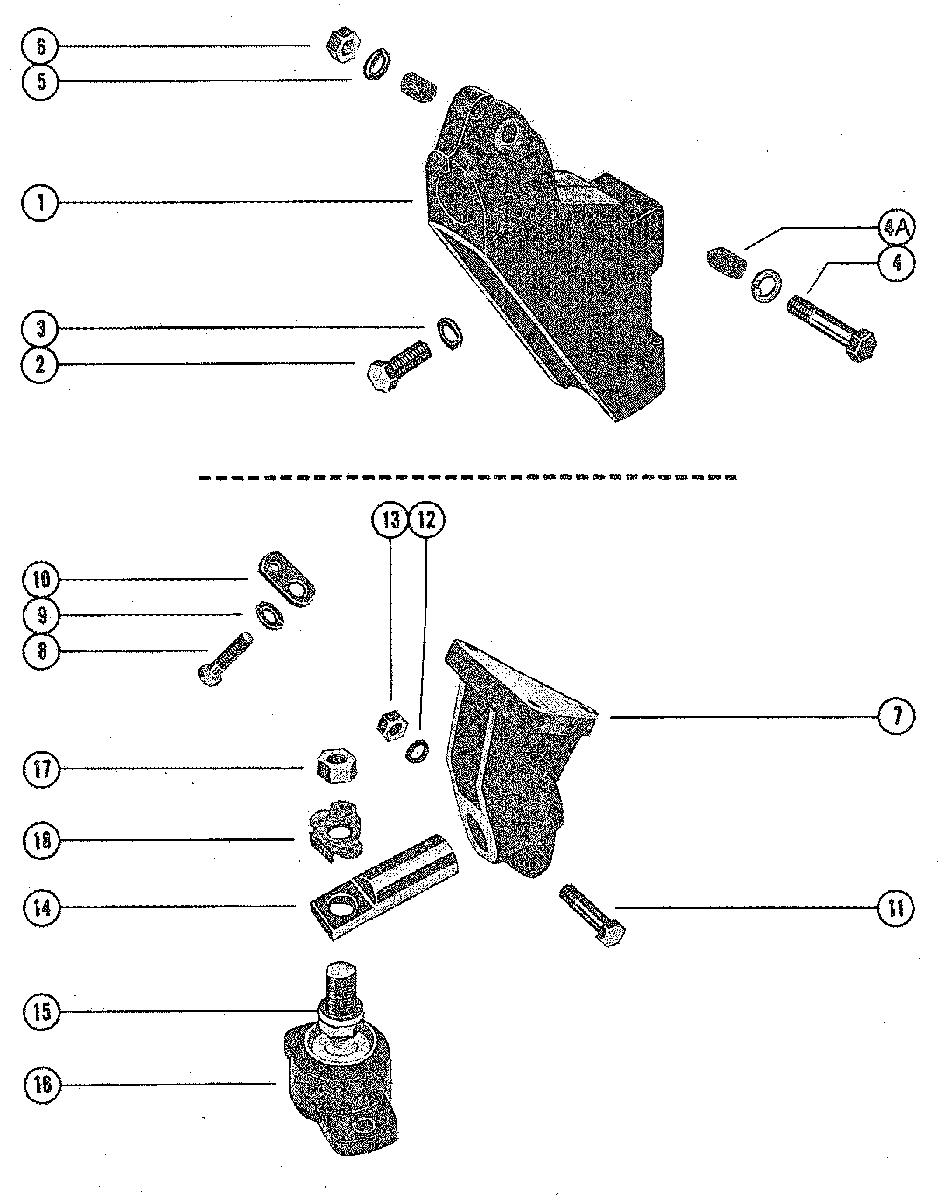

MOUNTING BRACKETS для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913
-
№АртикулНазвание
-
166167A2 BRACKET, MOUNTING -TRANSMISSION (REAR) INBOARDBRACKET, MOUNTING -TRANSMISSION (REAR) INBOARD
-
210-37269 SCREW, BRACKET TO TRANSMISSION (2") INBOARDSCREW, BRACKET TO TRANSMISSION (2") INBOARD
-
313-32993 LOCKWASHER, BRACKET SCREW INBOARDLOCKWASHER, BRACKET SCREW INBOARD
-
410-57357 SCREW, CLAMPING - MOUNTING BRACKET (2 1/4") INBOARDSCREW, CLAMPING - MOUNTING BRACKET (2 1/4") INBOARD
-
162285 BRACKET, MOUNTING (REAR) V-DRIVEBRACKET, MOUNTING (REAR) V-DRIVE
-
210-47462 SCREW, BRACKET TO TRANSMISSION (1 1/4") V-DRIVESCREW, BRACKET TO TRANSMISSION (1 1/4") V-DRIVE
-
313-32993 LOCKWASHER, BRACKET SCREW V-DRIVELOCKWASHER, BRACKET SCREW V-DRIVE
-
410-47654 SCREW, CLAMPING - MOUNTING BRACKET (2 3/4") V-DRIVESCREW, CLAMPING - MOUNTING BRACKET (2 3/4") V-DRIVE
-
4A54-47528 CLAMP, ADJUSTING TRUNNION SCREWCLAMP, ADJUSTING TRUNNION SCREW
-
513-32993 LOCKWASHER, CLAMPING SCREWLOCKWASHER, CLAMPING SCREW
-
611-82670814 NUT, CLAMPING SCREWNUT, CLAMPING SCREW
-
766418T BRACKET, MOUNTING - ENGINE (FRONT)BRACKET, MOUNTING - ENGINE (FRONT)
-
810-68101 SCREW, MOUNTING BRACKET TO ENGINE (1 3/8")SCREW, MOUNTING BRACKET TO ENGINE (1 3/8")
-
913-35048 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
1064884 TAB, MOUNTING BRACKET SCREWTAB, MOUNTING BRACKET SCREW
-
1110-37269 SCREW, CLAMPING - MOUNTING BRACKET (2")SCREW, CLAMPING - MOUNTING BRACKET (2")
-
1213-32993 LOCKWASHER, CLAMPING SCREWLOCKWASHER, CLAMPING SCREW
-
1311-82670814 NUT, CLAMPING SCREWNUT, CLAMPING SCREW
-
1466166A4 TRUNNION, ADJUSTING - MOUNTING BRACKETTRUNNION, ADJUSTING - MOUNTING BRACKET
-
1513-68102 LOCKWASHER, MOUNTING BRACKETLOCKWASHER, MOUNTING BRACKET
-
1666284A2 BASE, ENGINE MOUNTBASE, ENGINE MOUNT
-
1711-20739 NUT, JAME - ENGINE MOUNT BASENUT, JAME - ENGINE MOUNT BASE
-
1814-66658 TAB WASHER, CLAMPING SCREWTAB WASHER, CLAMPING SCREW
