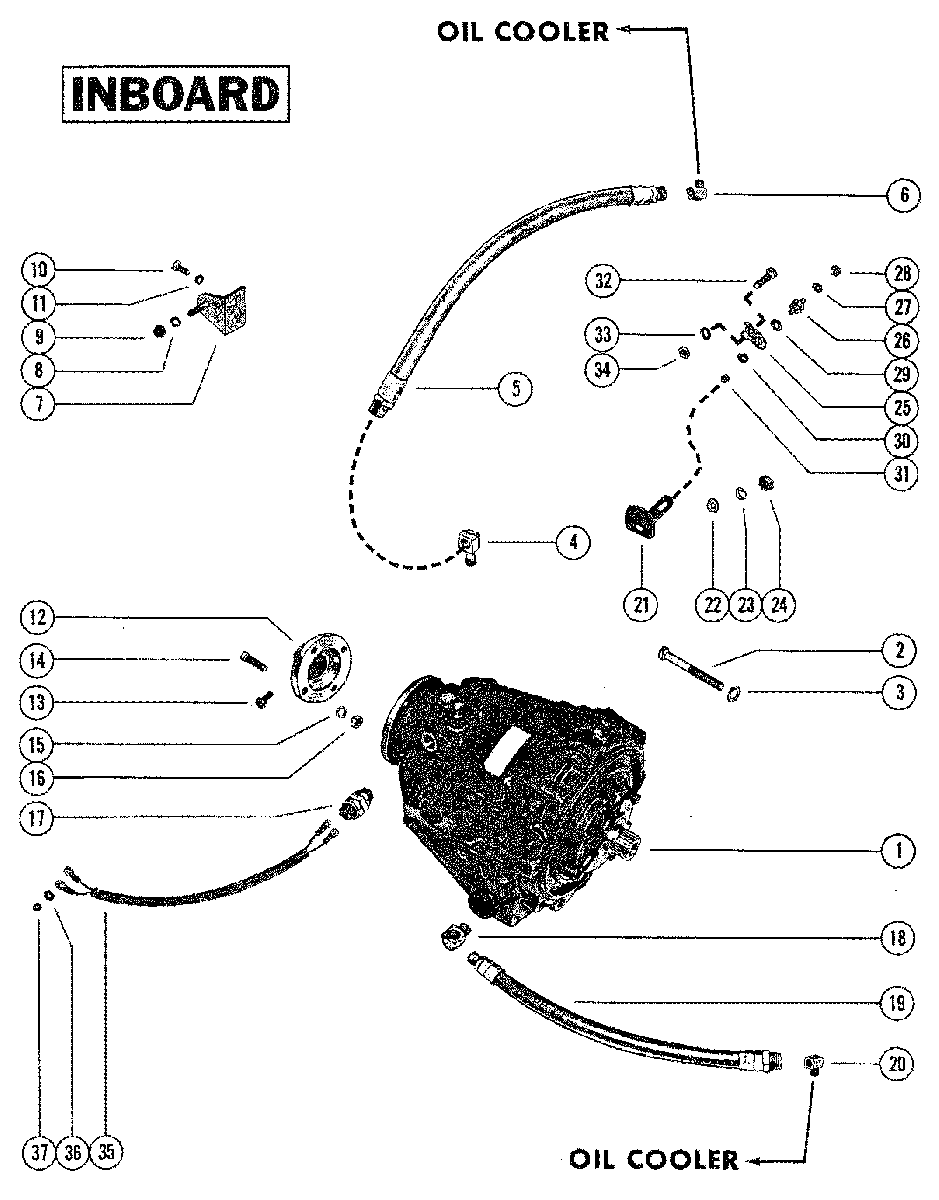

TRANSMISSION ASSEMBLY (INBOARD) для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913
-
№АртикулНазвание
-
147810A19 TRANSMISSION (DIRECT DRIVE) - 72 SERIESTRANSMISSION (DIRECT DRIVE) - 72 SERIES
-
147811A7 TRANSMISSION (1.523:1 REDUCTION) - 72 SERIESTRANSMISSION (1.523:1 REDUCTION) - 72 SERIES
-
147812A7 TRANMISSION (1.909:1 REDUCTION) - 72 SERIESTRANMISSION (1.909:1 REDUCTION) - 72 SERIES
-
147813A7 TRANSMISSION (2.57:1 REDUCTION) - 72 SERIESTRANSMISSION (2.57:1 REDUCTION) - 72 SERIES
-
147814A7 TRANSMISSION (2.909:1 REDUCTION) - 72 SERIESTRANSMISSION (2.909:1 REDUCTION) - 72 SERIES
-
210-60179 SCREW, TRANSMISSION TO ENGINE (3 1/2")SCREW, TRANSMISSION TO ENGINE (3 1/2")
-
313-32993 LOCKWASHER, TRANSMISSION SCREWLOCKWASHER, TRANSMISSION SCREW
-
422-63824 ELBOW, HOSE TO TRANSMISSION (90 )ELBOW, HOSE TO TRANSMISSION (90 )
-
532-475166 HOSE, TRANSMISSION TO OIL COOLER (30")HOSE, TRANSMISSION TO OIL COOLER (30")
-
622-47629 ELBOW, HOSE TO OIL COOLER (90 )ELBOW, HOSE TO OIL COOLER (90 )
-
763815A2 BRACKET ASSEMBLY, SHIFT CABLEBRACKET ASSEMBLY, SHIFT CABLE
-
812-56681 WASHER, SHIFT CABLE STUDWASHER, SHIFT CABLE STUD
-
911-46438 NUT, SHIFT CABLE STUDNUT, SHIFT CABLE STUD
-
1010-65746 SCREW, BRACKET TO FLYWHEEL HOUSING (3/4")SCREW, BRACKET TO FLYWHEEL HOUSING (3/4")
-
1113-26992 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
-
1279476A1 FLANGE ASSEMBLY (1")FLANGE ASSEMBLY (1")
-
1279476A2 FLANGE ASSEMBLY (1 1/8")FLANGE ASSEMBLY (1 1/8")
-
1279476A3 FLANGE ASSEMBLY (1 1/4")FLANGE ASSEMBLY (1 1/4")
-
1279476A4 FLANGE ASSEMBLY (1 3/8")FLANGE ASSEMBLY (1 3/8")
-
1279476A5 FLANGE ASSEMBLY (1 1/2")FLANGE ASSEMBLY (1 1/2")
-
1279476A6 FLANGE ASSEMBLY (1 3/4")FLANGE ASSEMBLY (1 3/4")
-
1279476A7 FLANGE ASSEMBLY (2")FLANGE ASSEMBLY (2")
-
1310-60171 SCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
- SEE NOTE BELOWSCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
- SEE NOTE BELOW -
1310-60171 SCREW, FLANGE TO PROPELLOR SHAFT (1")
- SEE NOTE BELOWSCREW, FLANGE TO PROPELLOR SHAFT (1")
- SEE NOTE BELOW -
1310-60169 SCREW, FLANGE TO PROPELLER SHAFT (3/4")
- SEE NOTE BELOWSCREW, FLANGE TO PROPELLER SHAFT (3/4")
- SEE NOTE BELOW -
1410-60106 SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")
-
1513-32993 LOCKWASHER, FLANGE SCREWLOCKWASHER, FLANGE SCREW
-
1611-22024 NUT, FLANGE SCREWNUT, FLANGE SCREW
-
1747613 SWITCH, NRUTRAL SAFETYSWITCH, NRUTRAL SAFETY
-
1822-63835 ELBOW, HOSE TO TRANSMISSION (45 )ELBOW, HOSE TO TRANSMISSION (45 )
-
1932-4751612 HOSE, OIL COOLER TO TRANSMISSION (16 3/4")HOSE, OIL COOLER TO TRANSMISSION (16 3/4")
-
2022-47629 ELBOW, HOSE TO OIL COOLER (90 )ELBOW, HOSE TO OIL COOLER (90 )
-
2148515 LEVER, SHIFT - TRANSMISSIONLEVER, SHIFT - TRANSMISSION
-
2212-20722 WASHER, SHIFT LEVER TO TRANSMISSIONWASHER, SHIFT LEVER TO TRANSMISSION
-
2313-26993 LOCKWASHER, SHIFT LEVER TO TRANSMISSIONLOCKWASHER, SHIFT LEVER TO TRANSMISSION
-
2411-22053 NUT, SHIFT LEVER TO TRANSMISSIONNUT, SHIFT LEVER TO TRANSMISSION
-
2548652 ADAPTOR, SHIFT CABLE TO SHIFT LEVERADAPTOR, SHIFT CABLE TO SHIFT LEVER
-
2616-48680 STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
-
2712-20533 WASHER, ADAPTOR STUDWASHER, ADAPTOR STUD
-
2811-20184 NUT, ADAPTOR STUDNUT, ADAPTOR STUD
-
2913-29402 WAVE WASHER, ADAP. STUDWAVE WASHER, ADAP. STUD
-
3012-56681 WASHER, ADAPTOR STUDWASHER, ADAPTOR STUD
-
3111-46438 NUT, ADAPTOR STUDNUT, ADAPTOR STUD
-
3210-20639 SCREW, CABLE TO ADAPTORSCREW, CABLE TO ADAPTOR
-
3312-22753 WASHER, CABLE SCREWWASHER, CABLE SCREW
-
3411-29250 NUT, SHIFT CABLE SCREWNUT, SHIFT CABLE SCREW
-
3584-73125A1 HARNESS, SAFETY SWITCHHARNESS, SAFETY SWITCH
-
3613-26996 LOCKWASHER, HARNESS ATT.LOCKWASHER, HARNESS ATT.
-
3711-68219 NUT, HARNESS ATTACHINGNUT, HARNESS ATTACHING
