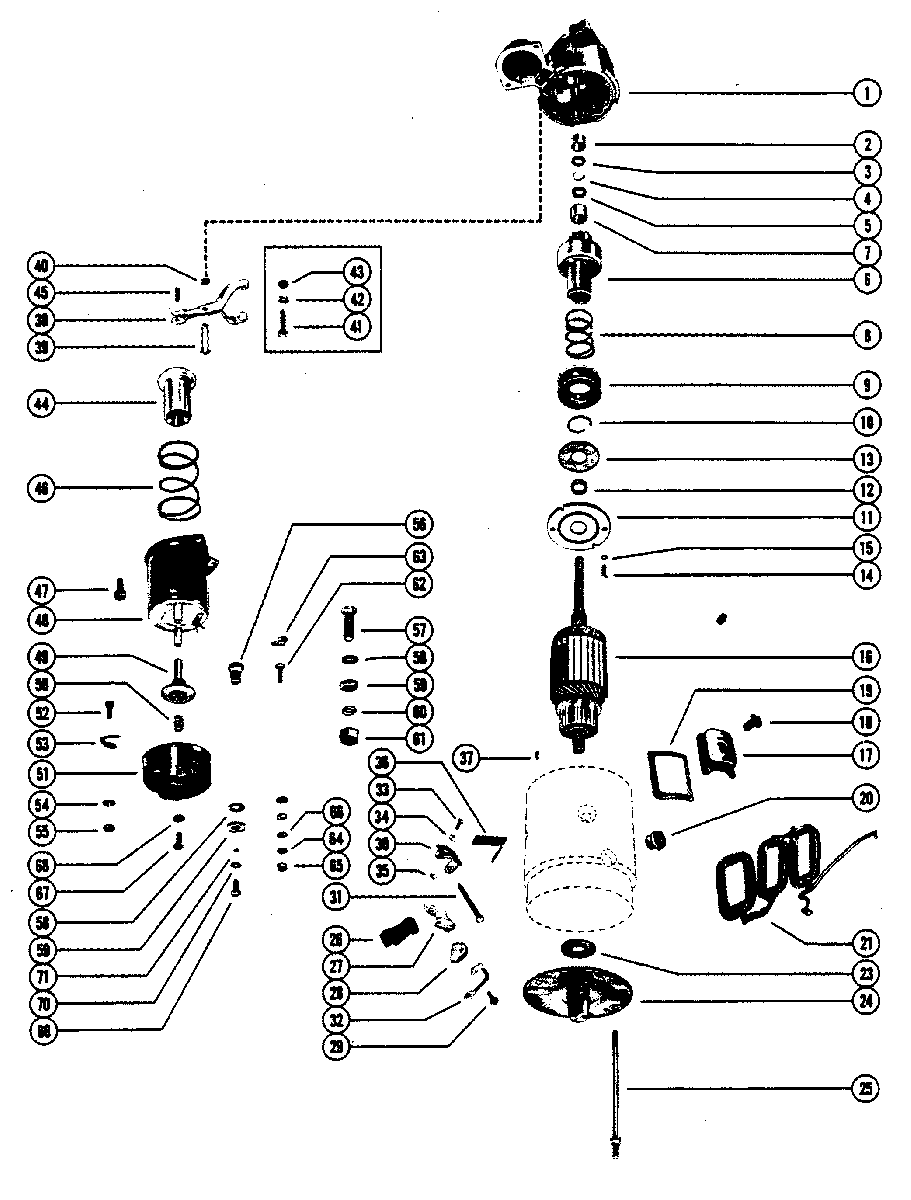

STARTER MOTOR ASSEMBLY, COMPLETE (B-50- 76965A3) для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913
-
№АртикулНазвание
-
-50-808011A05 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
-50-97499R3 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
-50-8M0090697 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
-50-8M0090697 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
179206 HOUSING, DRIVE ENDHOUSING, DRIVE END
-
171696 HOUSING, DRIVE ENDHOUSING, DRIVE END
-
223-33369 BUSHING, DRIVE END HOUSINGBUSHING, DRIVE END HOUSING
-
323-809457 COLLAR, THRUST - DRIVE END HOUSINGCOLLAR, THRUST - DRIVE END HOUSING
-
453-33290 RING, RETAINING - PINION STOP COLLARRING, RETAINING - PINION STOP COLLAR
-
533291 COLLAR, PINION STOP - DRIVE END HOUSINGCOLLAR, PINION STOP - DRIVE END HOUSING
-
668608 DRIVE ASSEMBLY, CLUTCH - ARMATUREDRIVE ASSEMBLY, CLUTCH - ARMATURE
-
668609 DRIVE ASSEMBLY, CLUTCH - ARMATUREDRIVE ASSEMBLY, CLUTCH - ARMATURE
-
679205T DRIVE ASSEMBLY, CLUTCH - ARMATUREDRIVE ASSEMBLY, CLUTCH - ARMATURE
-
723-33369 BUSHING, GEAR END - CLUTCH DRIVE (1 9/16")BUSHING, GEAR END - CLUTCH DRIVE (1 9/16")
-
824-33368 SPRING, CLUTCH DRIVESPRING, CLUTCH DRIVE
-
9N.S.S. COLLAR, CLUTCH DRIVE (DELCO REMY#1904443)COLLAR, CLUTCH DRIVE (DELCO REMY#1904443)
-
1033367 LOCKWIRE, COLLAR AND SPRING RETAININGLOCKWIRE, COLLAR AND SPRING RETAINING
-
1179396 PLATE, BEARINGPLATE, BEARING
-
11N.S.S. PLATE, BEARING (DELCO REMY #1956939)PLATE, BEARING (DELCO REMY #1956939)
-
1223-71694 BUSHING, BEARING PLATEBUSHING, BEARING PLATE
-
1312-68614 WASHER, BEARING PLATEWASHER, BEARING PLATE
-
1410-75659 SCREW, BEARING PLATE ATTACHINGSCREW, BEARING PLATE ATTACHING
-
1410-79209 SCREW, BEARING PLATE ATTACHINGSCREW, BEARING PLATE ATTACHING
-
1513-26996 LOCKWASHER, BEARING PLATE SCREWLOCKWASHER, BEARING PLATE SCREW
-
1675665 ARMATUREARMATURE
-
1668606 ARMATUREARMATURE
-
1668607 ARMATUREARMATURE
-
1671693 ARMATUREARMATURE
-
17N.S.S. SHOE, POLE - FIELD COIL (DELCO REMY #810601)SHOE, POLE - FIELD COIL (DELCO REMY #810601)
-
17N.S.S. SHOE, POLE - FIELD COIL (DELCO REMY #1931129)SHOE, POLE - FIELD COIL (DELCO REMY #1931129)
-
18N.S.S. SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396)SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396)
-
1933293 INSULATION, FIELD COILINSULATION, FIELD COIL
-
2025-68619 GROMMET, FIELD COIL - FIELD FRAMEGROMMET, FIELD COIL - FIELD FRAME
-
2025-79208 GROMMET, FIELD COIL - FIELD FRAMEGROMMET, FIELD COIL - FIELD FRAME
-
2175664 FIELD COIL ASSEMBLYFIELD COIL ASSEMBLY
-
2148272 FIELD COIL ASSEMBLYFIELD COIL ASSEMBLY
-
2179212 FIELD COIL ASSEMBLYFIELD COIL ASSEMBLY
-
2312-33258 WASHER, LEATHER - COMMUTATOR END FRAMEWASHER, LEATHER - COMMUTATOR END FRAME
-
2479211 FRAME, COMMUTATOR END - LOWERFRAME, COMMUTATOR END - LOWER
-
2479211 FRAME, COMMUTATOR END - LOWERFRAME, COMMUTATOR END - LOWER
-
2510-33296 BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSINGBOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING
-
2510-33286 BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSINGBOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING
-
2633284 HOLDER, INSULATED - FIELD FRAME BRUSHHOLDER, INSULATED - FIELD FRAME BRUSH
-
2733283 HOLDER, FIELD FRAME BRUSH GROUNDHOLDER, FIELD FRAME BRUSH GROUND
-
2833270 BRUSH, FIELD FRAMEBRUSH, FIELD FRAME
-
2910-52904 SCREW, BRUSH LEAD TO FIELD FRAME BRUSH (8-18 X 5/8")SCREW, BRUSH LEAD TO FIELD FRAME BRUSH (8-18 X 5/8")
-
2910-60685 SCREW, BRUSH LEAD TO FIELD FRAME BRUSHSCREW, BRUSH LEAD TO FIELD FRAME BRUSH
-
3033294 SUPPORT PACKAGE, GROUND WIRE AND INSULATED HOLDERSSUPPORT PACKAGE, GROUND WIRE AND INSULATED HOLDERS
-
3117-33280 PIN, GROUND AND INSULATED HOLDER TO SUPPORTPIN, GROUND AND INSULATED HOLDER TO SUPPORT
-
3233294 LEAD, FIELD FRAME BRUSHLEAD, FIELD FRAME BRUSH
-
33N.S.S. SCREW, SUPPORT TO FIELD FRAME (DELCO REMY #274738)SCREW, SUPPORT TO FIELD FRAME (DELCO REMY #274738)
-
3413-26996 LOCKWASHER, SUPPORT SCREWLOCKWASHER, SUPPORT SCREW
-
3511-30968 NUT, SUPPORT SCREWNUT, SUPPORT SCREW
-
3624-33285 SPRING, FIELD FRAME BRUSHSPRING, FIELD FRAME BRUSH
-
3717-33257 PIN, DOWEL - FIELD FRAME TO DRIVE END HOUSINGPIN, DOWEL - FIELD FRAME TO DRIVE END HOUSING
-
-50-808011A05 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
-50-97499R3 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
-50-8M0090697 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
-50-8M0090697 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
3871698 LEVER, SHIFTLEVER, SHIFT
-
3933310 SHAFT, SHIFT LEVER TO DRIVE END HOUSINGSHAFT, SHIFT LEVER TO DRIVE END HOUSING
-
4053-33354 >RING, RETAINING - SHIFT LEVER SHAFT>RING, RETAINING - SHIFT LEVER SHAFT
-
3833297 LEVER, SHIFTLEVER, SHIFT
-
41N.S.S. STUD, SHIFT LEVER TO DRIVE END HOUSINGSTUD, SHIFT LEVER TO DRIVE END HOUSING
-
4212-68615 WASHER, SHIFT LEVER STUDWASHER, SHIFT LEVER STUD
-
4311-26484 NUT, SHIFT LEVER STUDNUT, SHIFT LEVER STUD
-
4433317 PLUNGER, SHIFT LEVER - SOLENOID SWITCHPLUNGER, SHIFT LEVER - SOLENOID SWITCH
-
4517-79207 PIN, PLUNGER TO SHIFT LEVERPIN, PLUNGER TO SHIFT LEVER
-
4624-46889 SPRING, PLUNGER RETURN - SOLENOID SWITCHSPRING, PLUNGER RETURN - SOLENOID SWITCH
-
4710-28713 SCREW, SOLENOID SWITCH TO DRIVE END HOUSINGSCREW, SOLENOID SWITCH TO DRIVE END HOUSING
-
4710-76621 SCREW, SOLENOID SWITCH TO DRIVE END HOUSINGSCREW, SOLENOID SWITCH TO DRIVE END HOUSING
-
4833261 SOLENOID SWITCH ASSEMBLYSOLENOID SWITCH ASSEMBLY
-
4833261 SOLENOID SWITCH ASSEMBLYSOLENOID SWITCH ASSEMBLY
-
4933261 CONTACT AND PUSH ROD ASSEMBLYCONTACT AND PUSH ROD ASSEMBLY
-
5024-33265 SPRING, CONTACT AND PUSH ROD TENSIONSPRING, CONTACT AND PUSH ROD TENSION
-
5145537 COVER, SOLENOID SWITCHCOVER, SOLENOID SWITCH
-
5216-33304 STUD, RESISTOR TERMINAL (10-32)STUD, RESISTOR TERMINAL (10-32)
-
5333305 CONTACT, RESISTOR TERMINAL STUDCONTACT, RESISTOR TERMINAL STUD
-
5413-26996 LOCKWASHER, RESISTOR TERMINAL STUD (#10)LOCKWASHER, RESISTOR TERMINAL STUD (#10)
-
5511-68219 NUT, RESISTOR TERMINAL STUD (10-32)NUT, RESISTOR TERMINAL STUD (10-32)
-
5616-33299 STUD, MOTOR TERMINAL (3/8-16)STUD, MOTOR TERMINAL (3/8-16)
-
5716-45536 STUD, BATTERY TERMINAL (3/8-16)STUD, BATTERY TERMINAL (3/8-16)
-
5812-33289 WASHER, BATTERY AND MOTOR TERMINAL STUD (3/8")WASHER, BATTERY AND MOTOR TERMINAL STUD (3/8")
-
5911-32219 NUT, BATTERY AND MOTOR TERMINAL STUD (3/8-16)NUT, BATTERY AND MOTOR TERMINAL STUD (3/8-16)
-
6013-35048 LOCKWASHER, BATTERY TERMINAL STUD (3/8")LOCKWASHER, BATTERY TERMINAL STUD (3/8")
-
6111-32219 NUT, BATTERY TERMINAL STUD (3/8-16)NUT, BATTERY TERMINAL STUD (3/8-16)
-
6216-33262 STUD, SWITCH TERMINAL (8-32)STUD, SWITCH TERMINAL (8-32)
-
6354-33307 CLIP, SWITCH TERMINAL STUDCLIP, SWITCH TERMINAL STUD
-
6412-33279 WASHER, PLASTIC - SWITCH TERMINAL STUD (#8)WASHER, PLASTIC - SWITCH TERMINAL STUD (#8)
-
6511-21923T NUT, SWITCH TERMINAL STUD (8-32)NUT, SWITCH TERMINAL STUD (8-32)
-
6613-26995 LOCKWASHER, SWITCH TERMINAL STUD (#8)LOCKWASHER, SWITCH TERMINAL STUD (#8)
-
6710-33248 SCREW, COVER TO SOLENOID SWITCH (7/16")SCREW, COVER TO SOLENOID SWITCH (7/16")
-
6812-33279 WASHER, PLASTIC - COVER SCREWWASHER, PLASTIC - COVER SCREW
-
6910-48266 SCREW, FIELD COIL LEAD TO SOLENOID SWITCH (7/16")SCREW, FIELD COIL LEAD TO SOLENOID SWITCH (7/16")
-
6910-45546 SCREW, FIELD COIL LEAD TO SOLENOID SWITCH (1")SCREW, FIELD COIL LEAD TO SOLENOID SWITCH (1")
-
7013-26995 LOCKWASHER, FIELD COIL LEAD SCREWLOCKWASHER, FIELD COIL LEAD SCREW
-
71N.S.S. CONNECTOR, FIELD COIL LEAD SCREW (DELCO REMY #1963519)CONNECTOR, FIELD COIL LEAD SCREW (DELCO REMY #1963519)
