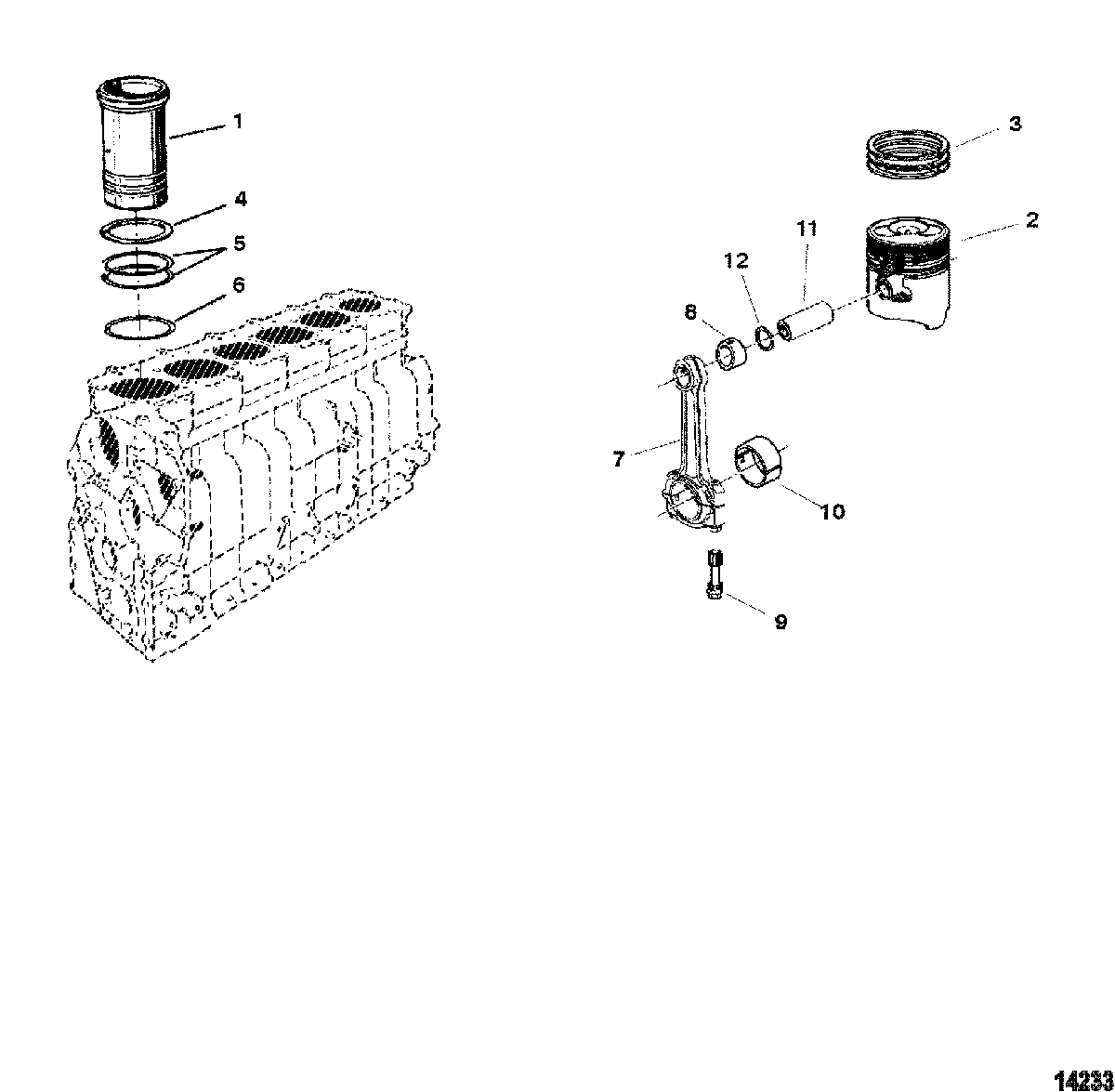

Connecting Rod And Piston для Mercruiser - CMD 4.2 ES 250 88040001 THRU 88040508

№

Артикул

Название
-

51-803123A1 LINER KIT, With Piston
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

LINER KIT, With Piston
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

94 210 ₽
-

51-891726 LINER KIT, With Piston
SN# (2.8L) 88005073 and above, (4.2L) 88040261 & Up

LINER KIT, With Piston
SN# (2.8L) 88005073 and above, (4.2L) 88040261 & Up

44 030 ₽
1

51-889857 LINER, Cylinder
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

LINER, Cylinder
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

10 610 ₽
2

795-803122T01 PISTON ASSEMBLY, With Ring Set
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

PISTON ASSEMBLY, With Ring Set
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

76 690 ₽
2

795-891727001 PISTON, With Rings and Pin, With Ring Set
SN# (2.8L) 88005073 and above, (4.2L) 88040261 & Up

PISTON, With Rings and Pin, With Ring Set
SN# (2.8L) 88005073 and above, (4.2L) 88040261 & Up

31 340 ₽
3

39-811386 RING SET, Piston
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

RING SET, Piston
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

7 760 ₽
3

39-889859 RING SET, Piston
SN# (2.8L) 88005073 and above, (4.2L) 88040261 & Up

RING SET, Piston
SN# (2.8L) 88005073 and above, (4.2L) 88040261 & Up

13 360 ₽
4

15-801331607 SHIM, (15 mm)

SHIM, (15 mm)

140 ₽
4

15-801331608 SHIM, (20 mm)

SHIM, (20 mm)

180 ₽
4

15-801763362 SHIM, (23 mm)

SHIM, (23 mm)

190 ₽
5

25-817728 O-RING

O-RING

410 ₽
6

25-817729 O-RING

O-RING

530 ₽
7

646-8M0055124 CONNECTING ROD ASSEMBLY
SN# (2.8L) 88005072 & Below

CONNECTING ROD ASSEMBLY
SN# (2.8L) 88005072 & Below

0 ₽
7

641-898101584 CONNECTING ROD ASSEMBLY
SN# (2.8L) 88005073 & Up

CONNECTING ROD ASSEMBLY
SN# (2.8L) 88005073 & Up

44 960 ₽
7

600-8M0069646 CONNECTING ROD ASSEMBLY
SN# (4.2L) 88040260 & Below

CONNECTING ROD ASSEMBLY
SN# (4.2L) 88040260 & Below

98 670 ₽
7

641-889860 CONNECTING ROD ASSEMBLY
SN# (4.2L) 88040261 & Up

CONNECTING ROD ASSEMBLY
SN# (4.2L) 88040261 & Up

67 670 ₽
8

23-854090 BUSHING
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

BUSHING
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

3 180 ₽
8

23-898101464 BUSHING
SN# (2.8L) 88005073 and above, (4.2L) 88040261 & Up

BUSHING
SN# (2.8L) 88005073 and above, (4.2L) 88040261 & Up

1 090 ₽
9

10-801331713 BOLT
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

BOLT
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

1 070 ₽
9

10-879150154 BOLT
SN# (2.8L) 88005073 and above, (4.2L) 88040261 & Up

BOLT
SN# (2.8L) 88005073 and above, (4.2L) 88040261 & Up

140 ₽
10

31-8M0054658 BEARING, Standard

BEARING, Standard

1 910 ₽
10

8M0077370 BEARING, (25 mm)

BEARING, (25 mm)

5 560 ₽
10

801331717 BEARING, (50 mm)

BEARING, (50 mm)

0 ₽
11

41-811387 PIN, Piston
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

PIN, Piston
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

0 ₽
12

40-801331725 RING, Retaining
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

RING, Retaining
SN# (2.8L) 88005072 and below, (4.2L) 88040260 & Below

350 ₽
-

27-879684 GASKET SET, Overhaul
(2.8L)

GASKET SET, Overhaul
(2.8L)

58 470 ₽
-

27-898272016 GASKET SET, Overhaul
(4.2L)

GASKET SET, Overhaul
(4.2L)

88 580 ₽
