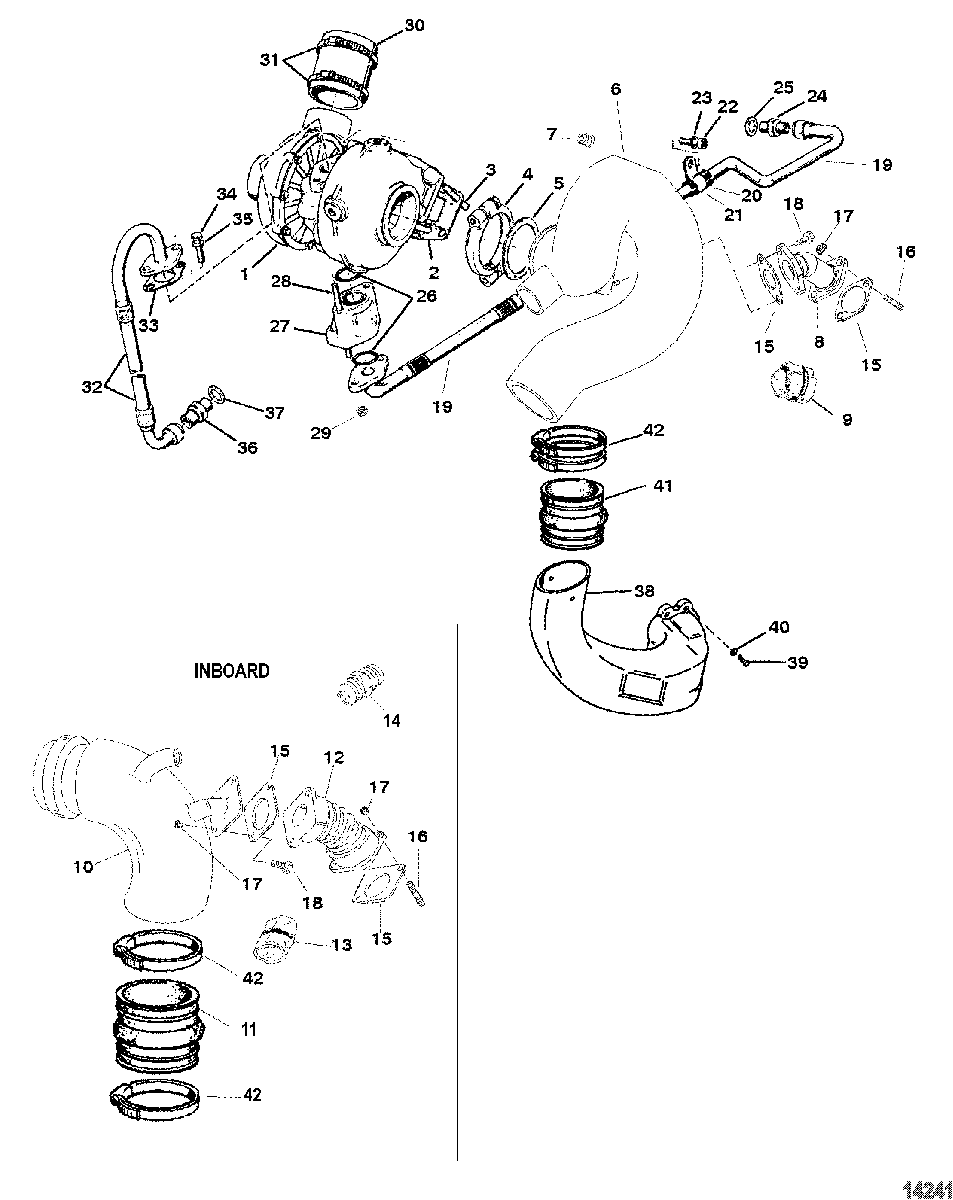

Turbocharger And Exhaust Elbow для Mercruiser - CMD 4.2 ES 250 88040001 THRU 88040508
-
№АртикулНазвание
-
1854212 TURBOCHARGER
(2.8L)TURBOCHARGER
(2.8L) -
1854128 TURBOCHARGER
(4.2L)TURBOCHARGER
(4.2L) -
227-8M0094247 GASKETGASKET
-
316-8M0073963 STUD, (M10 x 30)STUD, (M10 x 30)
-
454-864148A01 CLAMPCLAMP
-
527-817089 GASKETGASKET
-
6805265A1 ELBOW, Exhaust
(Sterndrive)ELBOW, Exhaust
(Sterndrive) -
722-36382 FITTING, (.250-18 x .62) Brass
(Sterndrive)FITTING, (.250-18 x .62) Brass
(Sterndrive) -
8807049T FLEX TUBE
(Sterndrive)FLEX TUBE
(Sterndrive) -
9855483 BLANKET
(Sterndrive)BLANKET
(Sterndrive) -
10803609001 ELBOW, Exhaust (33 Degree)
(Inboard)ELBOW, Exhaust (33 Degree)
(Inboard) -
1132-860602 TUBE, Exhaust
(Inboard)TUBE, Exhaust
(Inboard) -
12879172157 FLEX TUBE
(Inboard)FLEX TUBE
(Inboard) -
13855483 BLANKET
(Inboard)BLANKET
(Inboard) -
1422-805315 CONNECTOR
(Inboard)CONNECTOR
(Inboard) -
1527-879721 GASKETGASKET
-
1616-898101517 STUD, (M8 x 20)STUD, (M8 x 20)
-
1711-854037 NUT, (M8)NUT, (M8)
-
1810-898101555 SCREW, (M8 x 20)
(Sterndrive)SCREW, (M8 x 20)
(Sterndrive) -
1810-898101556 SCREW, (M8 x 25)
(Inboard)SCREW, (M8 x 25)
(Inboard) -
1932-855480 PIPE, Return
(2.8L)PIPE, Return
(2.8L) -
1932-854130 PIPE
(4.2L)PIPE
(4.2L) -
2023-811466 SLEEVESLEEVE
-
2154-811467 CLIPCLIP
-
2210-811463 SCREWSCREW
-
2313-811460 LOCKWASHERLOCKWASHER
-
2422-801333464 FITTINGFITTING
-
2525-809963342 O-RINGO-RING
-
2625-811461 O-RINGO-RING
-
27889919 HOUSINGHOUSING
-
2816-801333451 STUD, (M8 x 90)STUD, (M8 x 90)
-
2911-854037 NUT, (M8)NUT, (M8)
-
3032-891889 HOSEHOSE
-
3154-811435 CLAMPCLAMP
-
3232-854132 PIPE, DeliveryPIPE, Delivery
-
3327-854133 GASKETGASKET
-
3410-898101555 SCREWSCREW
-
3513-811460 LOCKWASHERLOCKWASHER
-
3622-801763389 FITTINGFITTING
-
3712-889153 WASHERWASHER
-
38805013T1 PIPE, Exhaust
(Sterndrive)PIPE, Exhaust
(Sterndrive) -
3910-8M0113174 SCREW, (.375-16 x 1.25)
(Sterndrive)SCREW, (.375-16 x 1.25)
(Sterndrive) -
4013-41471 LOCKWASHER, (.375)
(Sterndrive)LOCKWASHER, (.375)
(Sterndrive) -
4132-44348001 TUBE
(Sterndrive)TUBE
(Sterndrive) -
4254-815504272 CLAMP, Worm GearCLAMP, Worm Gear
-
-27-879684 GASKET SET, Overhaul
(2.8L)GASKET SET, Overhaul
(2.8L) -
-27-898272016 GASKET SET, Overhaul
(4.2L)GASKET SET, Overhaul
(4.2L)
