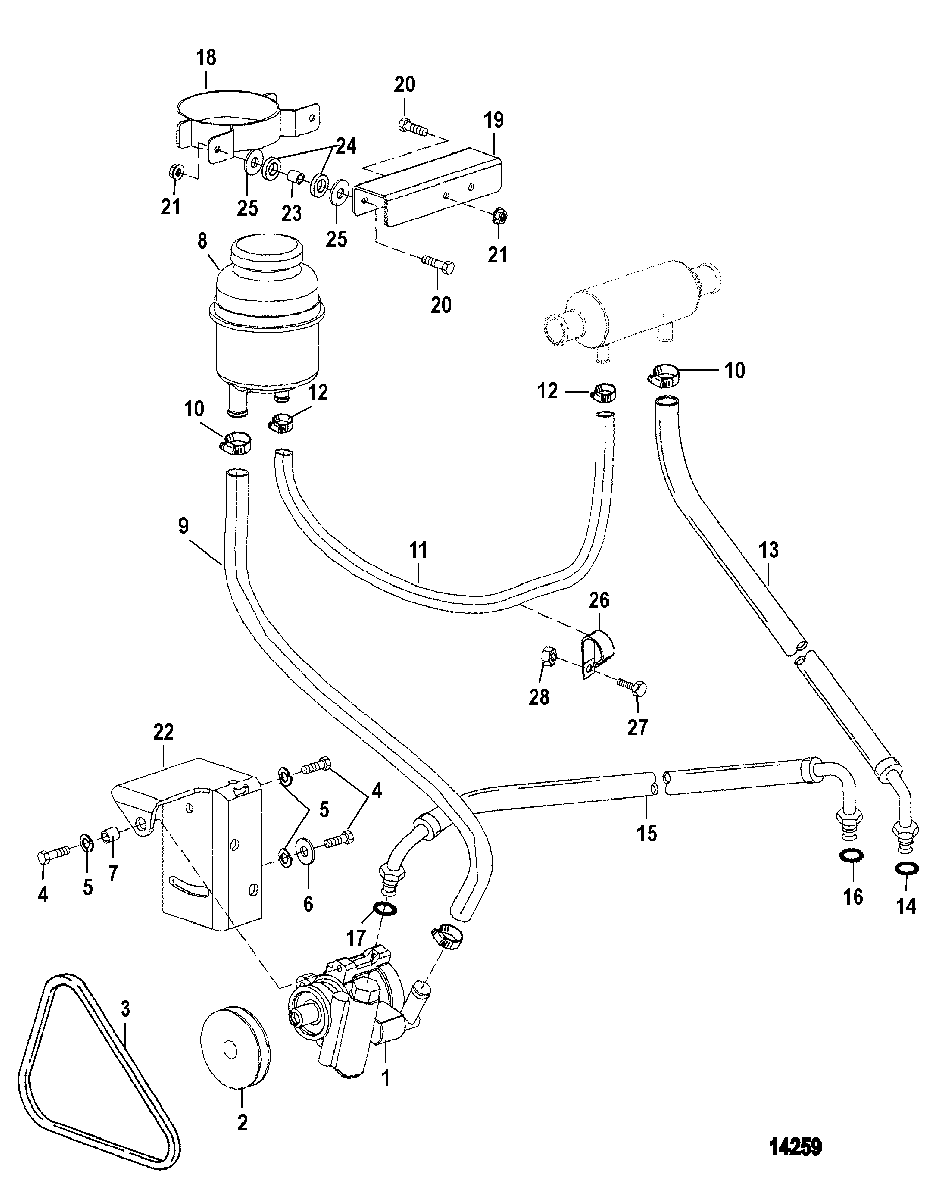

Power Steering Components(Sterndrive) для Mercruiser - CMD 4.2 ES 250 88040001 THRU 88040508
-
№АртикулНазвание
-
118825A10 PUMP ASSEMBLYPUMP ASSEMBLY
-
2801763349 PULLEYPULLEY
-
357-816177Q V BELTV BELT
-
410-809913657 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
513-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
612-4002318 WASHERWASHER
-
723-12009 BUSHING, (.31 x .45 x .50)BUSHING, (.31 x .45 x .50)
-
8865264T TANK, Power Steering Oil ReservoirTANK, Power Steering Oil Reservoir
-
932-816689260 HOSE, Power Steering Pump To Reservoir
(Cut to Length)HOSE, Power Steering Pump To Reservoir
(Cut to Length) -
1054-815504210 CLAMPCLAMP
-
1132-883967 HOSE
(4.2L)HOSE
(4.2L) -
1132-883968 HOSE, Reservoir To Cooler
(2.8L)HOSE, Reservoir To Cooler
(2.8L) -
1254-815504104 CLAMPCLAMP
-
1332-883969 HOSE, Cooler To Steering CylinderHOSE, Cooler To Steering Cylinder
-
1425-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
-
1532-883970 HOSE, Power Steering Pump To Steering CylinderHOSE, Power Steering Pump To Steering Cylinder
-
1625-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
-
1725-806232 O-RING, (.239 x .064)O-RING, (.239 x .064)
-
188553871 SUPPORT, Oil TankSUPPORT, Oil Tank
-
19855513 BRACKET, Oil Tank Support
(2.8L)BRACKET, Oil Tank Support
(2.8L) -
19855388 BRACKET
(4.2L)BRACKET
(4.2L) -
2010-898101555 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
2111-854037 NUT, (M8)NUT, (M8)
-
22816340 BRACKETBRACKET
-
2323-854021 SPACERSPACER
-
2425-854020 GROMMETGROMMET
-
2512-811455 WASHERWASHER
-
2654-803627 CLIPCLIP
-
2710-855511 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2811-898101541 NUT, (M6)NUT, (M6)
