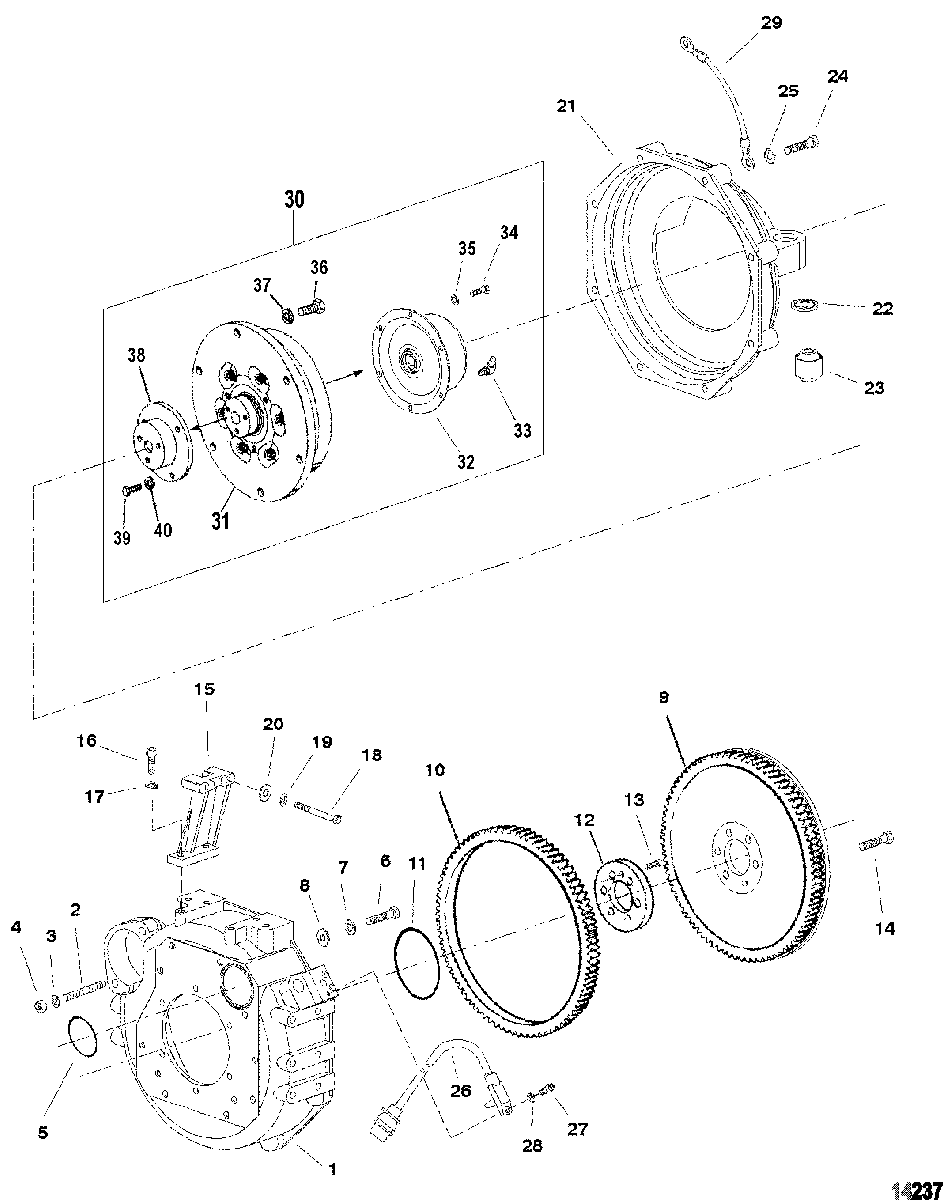

Flywheel Housing(Sterndrive) для Mercruiser - CMD 4.2 ES 250 88040001 THRU 88040508
-
№АртикулНазвание
-
1879710 HOUSINGHOUSING
-
216-8M0048120 STUDSTUD
-
313-8M0049895 LOCKWASHERLOCKWASHER
-
411-8M0048118 NUTNUT
-
525-801331619 O-RINGO-RING
-
610-898101563 SCREW, (M10 x 25)SCREW, (M10 x 25)
-
713-809932112 LOCKWASHERLOCKWASHER
-
812-811459 WASHERWASHER
-
9265-855468 FLYWHEEL
(2.8L)FLYWHEEL
(2.8L) -
9265-854107 FLYWHEEL
(4.2L)FLYWHEEL
(4.2L) -
1043-801331701 RING GEARRING GEAR
-
1125-884028 O-RINGO-RING
-
12889030 SPACER, FlywheelSPACER, Flywheel
-
1310-801331698 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
1410-879711 SCREWSCREW
-
15889922 BRACKETBRACKET
-
1610-898101534 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
1713-809932110 LOCKWASHERLOCKWASHER
-
1810-811456 SCREWSCREW
-
1913-811460 LOCKWASHERLOCKWASHER
-
2012-811455 WASHERWASHER
-
21898272024 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
2223-99322 SPACERSPACER
-
2332832 MOUNT, RubberMOUNT, Rubber
-
2410-40001206 SCREW, (M10 x 50)SCREW, (M10 x 50)
-
2513-879194382 LOCKWASHERLOCKWASHER
-
2687-854109 SENSOR, Engine RPMSENSOR, Engine RPM
-
2710-898101524 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2812-8M0129782 WASHERWASHER
-
2984-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) BlackCABLE ASSEMBLY, Ground (13.00 Inches) Black
-
3018311A10 COUPLING ASSEMBLY
(Hub And And Stage Coupler)COUPLING ASSEMBLY
(Hub And And Stage Coupler) -
31805735A6 COUPLING ASSEMBLY
(2 Stage Coupler)COUPLING ASSEMBLY
(2 Stage Coupler) -
32805684A2 COUPLINGCOUPLING
-
3322-49099 FITTINGFITTING
-
3410-40001189 SCREW, (M10 x 20)SCREW, (M10 x 20)
-
3513-400248 LOCKWASHER, (M10)LOCKWASHER, (M10)
-
3610-898101564 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
3713-400248 LOCKWASHER, (M10)LOCKWASHER, (M10)
-
38805731 COUPLERCOUPLER
-
3910-4000175 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
4013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
-27-879684 GASKET SET, Overhaul
(2.8L)GASKET SET, Overhaul
(2.8L) -
-27-898272016 GASKET SET, Overhaul
(4.2L)GASKET SET, Overhaul
(4.2L)
