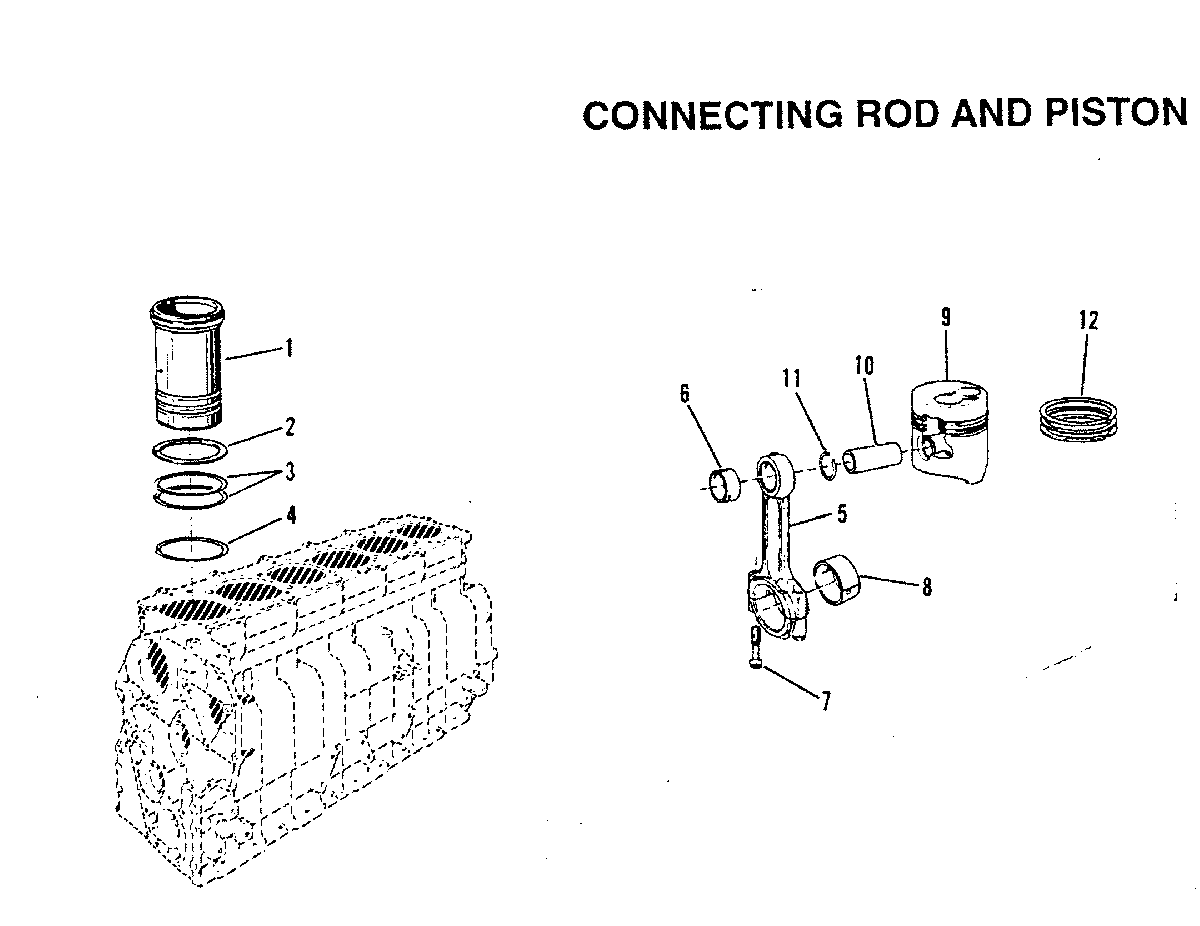

CONNECTING ROD AND PISTON для Mercruiser - D254 TURBO AC (BRAVO) VM 254 I/L6 1990-1993 0C849461 THRU 0D554731
-
№АртикулНазвание
-
151-889857 CYLINDER LINERCYLINDER LINER
-
215-801331607 COMPENSATION SHIM (.15MM)COMPENSATION SHIM (.15MM)
-
215-801331608 COMPENSATION SHIM (.20MM)COMPENSATION SHIM (.20MM)
-
215-801763362 COMPENSATION SHIM (.23MM)COMPENSATION SHIM (.23MM)
-
325-817728 O-RINGO-RING
-
425-817729 O-RINGO-RING
-
5600-8M0069646 CONNECTING RODCONNECTING ROD
-
623-801331712 BUSHINGBUSHING
-
710-801331713 BOLTBOLT
-
831-8M0054658 BEARING SHELL (STANDARD)BEARING SHELL (STANDARD)
-
88M0077370 BEARING SHELL (.25MM)BEARING SHELL (.25MM)
-
8801331717 BEARING SHELL (.50MM)BEARING SHELL (.50MM)
-
9795-823645001 PISTONPISTON
-
1041-811387 PISTON PINPISTON PIN
-
1140-801331725 RETAINING RINGRETAINING RING
-
1239-811386 PISTON RING (OLD DESIGN)PISTON RING (OLD DESIGN)
-
1239-811386 PISTON RING (NEW DESIGN)PISTON RING (NEW DESIGN)
