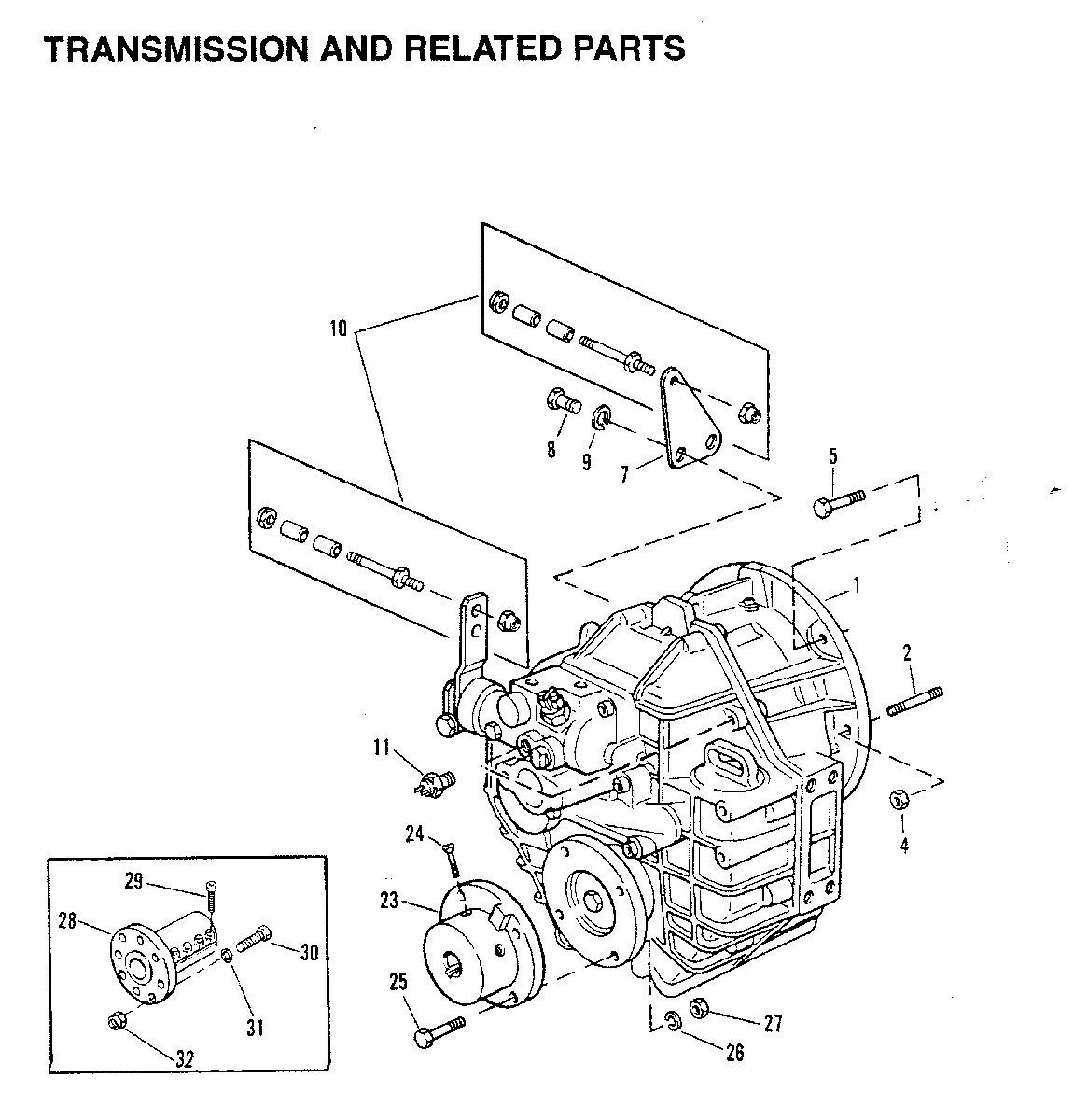

TRANSMISSION AND RELATED PARTS (INBOARD) для Mercruiser - D254 TURBO AC (BRAVO) VM 254 I/L6 1990-1993 0C849461 THRU 0D554731
-
№АртикулНазвание
-
1863744T2 TRANSMISSION (1.5:1 RATIO) (DIRECT DRIVE)TRANSMISSION (1.5:1 RATIO) (DIRECT DRIVE)
-
1863744T3 TRANSMISSION (2.0:1 RATIO) (DIRECT DRIVE)TRANSMISSION (2.0:1 RATIO) (DIRECT DRIVE)
-
1863744T4 TRANSMISSION (2.5:1 RATIO) (DIRECT DRIVE)TRANSMISSION (2.5:1 RATIO) (DIRECT DRIVE)
-
1863745T2 TRANSMISSION (1.5:1 RATIO) (V-DRIVE)TRANSMISSION (1.5:1 RATIO) (V-DRIVE)
-
1863745T3 TRANSMISSION (2.0:1 RATIO) (V-DRIVE)TRANSMISSION (2.0:1 RATIO) (V-DRIVE)
-
1863745T4 TRANSMISSION (2.5:1 RATIO) (V-DRIVE)TRANSMISSION (2.5:1 RATIO) (V-DRIVE)
-
216-910002 STUDSTUD
-
411-809922113 NUTNUT
-
510-809913837 SCREWSCREW
-
7806238 BRACKETBRACKET
-
810-809919969 SCREWSCREW
-
912-879194141 LOCKWASHERLOCKWASHER
-
1016-97477A3 STUD KITSTUD KIT
-
1187-88031 TEMPERATURE SWITCHTEMPERATURE SWITCH
-
2379476A1 FLANGE ASSEMBLY (1") (USE WITH ENGLISH SHAFT)FLANGE ASSEMBLY (1") (USE WITH ENGLISH SHAFT)
-
2379476A2 FLANGE ASSEMBLY (1-1/8") (USE WITH ENGLISH SHAFT)FLANGE ASSEMBLY (1-1/8") (USE WITH ENGLISH SHAFT)
-
2379476A3 FLANGE ASSEMBLY (1-1/4") (USE WITH ENGLISH SHAFT)FLANGE ASSEMBLY (1-1/4") (USE WITH ENGLISH SHAFT)
-
2379476A4 FLANGE ASSEMBLY (1-3/8") (USE WITH ENGLISH SHAFT)FLANGE ASSEMBLY (1-3/8") (USE WITH ENGLISH SHAFT)
-
2379476A5 FLANGE ASSEMBLY (1-1/2") (USE WITH ENGLISH SHAFT)FLANGE ASSEMBLY (1-1/2") (USE WITH ENGLISH SHAFT)
-
2379476A6 FLANGE ASSEMBLY (1-3/4") (USE WITH ENGLISH SHAFT)FLANGE ASSEMBLY (1-3/4") (USE WITH ENGLISH SHAFT)
-
2379476A7 FLANGE ASSEMBLY (2") (USE WITH ENGLISH SHAFT)FLANGE ASSEMBLY (2") (USE WITH ENGLISH SHAFT)
-
2410-60171 SCREW (1-1/4") (USE WITH ENGLISH SHAFT)SCREW (1-1/4") (USE WITH ENGLISH SHAFT)
-
2410-60169 SCREW (3/4") (USE WITH ENGLISH SHAFT)SCREW (3/4") (USE WITH ENGLISH SHAFT)
-
2510-805159 SCREW (1-1/2") (USE WITH ENGLISH SHAFT)SCREW (1-1/2") (USE WITH ENGLISH SHAFT)
-
2613-32993 LOCKWASHER (USE WITH ENGLISH SHAFT)LOCKWASHER (USE WITH ENGLISH SHAFT)
-
2711-22024 NUT (USE WITH ENGLISH SHAFT)NUT (USE WITH ENGLISH SHAFT)
-
2819559A1 FLANGE (30MM) (USE WITH METRIC SHAFT)FLANGE (30MM) (USE WITH METRIC SHAFT)
-
2819560A1 FLANGE (35MM) (USE WITH METRIC SHAFT)FLANGE (35MM) (USE WITH METRIC SHAFT)
-
2819561A1 FLANGE (40MM) (USE WITH METRIC SHAFT)FLANGE (40MM) (USE WITH METRIC SHAFT)
-
2819562A1 FLANGE (45MM) (USE WITH METRIC SHAFT)FLANGE (45MM) (USE WITH METRIC SHAFT)
-
2910-4007640 SCREW (USE WITH METRIC SHAFT)SCREW (USE WITH METRIC SHAFT)
-
3010-40001260 SCREW (USE WITH METRIC SHAFT)SCREW (USE WITH METRIC SHAFT)
-
3113-400249 LOCKWASHER (USE WITH METRIC SHAFT)LOCKWASHER (USE WITH METRIC SHAFT)
-
3211-4002016 NUT (USE WITH METRIC SHAFT)NUT (USE WITH METRIC SHAFT)
