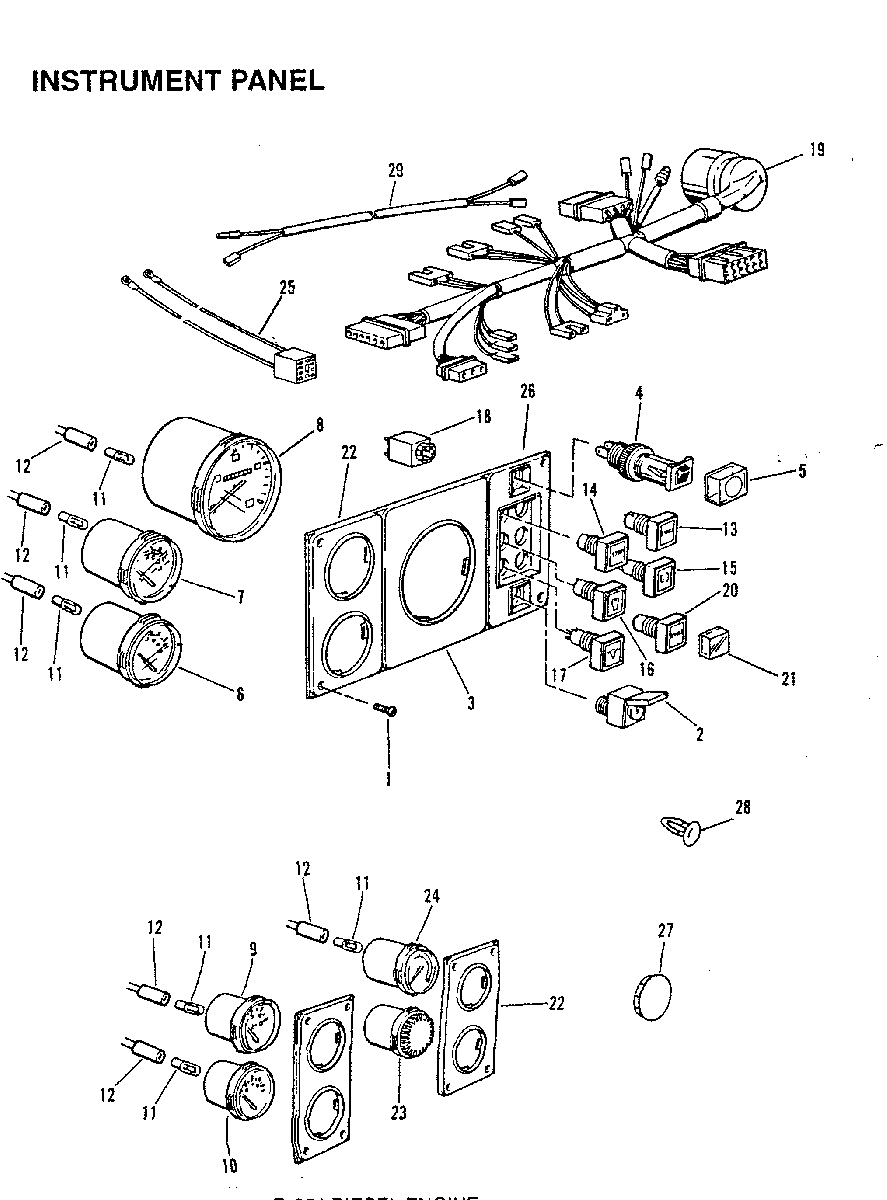

INSTRUMENT PANEL для Mercruiser - D254 TURBO AC (BRAVO) VM 254 I/L6 1990-1993 0C849461 THRU 0D554731
-
№АртикулНазвание
-
-801764122 INSTRUMENT PANEL ASSEMBLY
QUANTITIES: (STRN DRV) - 1; (INB) - 0INSTRUMENT PANEL ASSEMBLY
QUANTITIES: (STRN DRV) - 1; (INB) - 0 -
-801764123 INSTRUMENT PANEL ASSEMBLY
QUANTIITES: (STRN DRV) - ; (INB) - 1INSTRUMENT PANEL ASSEMBLY
QUANTIITES: (STRN DRV) - ; (INB) - 1 -
110-809902520 SCREW
QUANTITIES: (STRN DRV)-20; (INB) - 20SCREW
QUANTITIES: (STRN DRV)-20; (INB) - 20 -
287-801334117 IGNITION SWITCH (SEE CHART FOR KEY)
QUANTITIES: (STRN DRV) - 1; (INB) - 1IGNITION SWITCH (SEE CHART FOR KEY)
QUANTITIES: (STRN DRV) - 1; (INB) - 1 -
3801334100 INSTRUMENT PANEL
QUANTITIES: (STRN DRV) - 1; (INB) - 1INSTRUMENT PANEL
QUANTITIES: (STRN DRV) - 1; (INB) - 1 -
487-816401 CIRCUIT BREAKER
QUANTITIES: (STRN DRV) - 1; (INB) - 1CIRCUIT BREAKER
QUANTITIES: (STRN DRV) - 1; (INB) - 1 -
5801334308 COVER
QUANTITIES: (STRN DRV) - 1; (INB) - 1COVER
QUANTITIES: (STRN DRV) - 1; (INB) - 1 -
679-801334121 WATER TEMPERATURE GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) - 1WATER TEMPERATURE GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) - 1 -
779-801334120 VOLTMETER GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) - 1VOLTMETER GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) - 1 -
879-817489 TACHOMETER GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) - 1TACHOMETER GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) - 1 -
979-801334126 OIL TEMPERATURE GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) - 1OIL TEMPERATURE GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) - 1 -
1079-801334125 OIL PRESSURE GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) -1OIL PRESSURE GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) -1 -
11809978254 LIGHT BULB
QUANTITIES: (STRN DRV) - 6; (INB) -5LIGHT BULB
QUANTITIES: (STRN DRV) - 6; (INB) -5 -
11809978254 LIGHT BULB
QUANTITIES: (STRN DRV) - 6; (INB) - 6LIGHT BULB
QUANTITIES: (STRN DRV) - 6; (INB) - 6 -
12802982204 SOCKET
QUANTITIES: (STRN DRV) -6; (INB) - 6SOCKET
QUANTITIES: (STRN DRV) -6; (INB) - 6 -
12802982204 SOCKET
QUANTITIES: (STRN DRV) -6; (INB) - 6SOCKET
QUANTITIES: (STRN DRV) -6; (INB) - 6 -
1387-801334110 START SWITCH
QUANTITIES: (STRN DRV) - 1; (INB) - 1START SWITCH
QUANTITIES: (STRN DRV) - 1; (INB) - 1 -
1487-801334114 STOP SWITCH
QUANTITIES: (STRN DRV) - 1; (INB)- 1STOP SWITCH
QUANTITIES: (STRN DRV) - 1; (INB)- 1 -
15816404 PREHEATER INDICATOR LAMP
QUANTITIES: (STRN DRV) - 1; (INB)- 1PREHEATER INDICATOR LAMP
QUANTITIES: (STRN DRV) - 1; (INB)- 1 -
16816402 CHARGING INDICATOR LAMP
QUANTITIES: (STRN DRV) - 1; (INB)- 1CHARGING INDICATOR LAMP
QUANTITIES: (STRN DRV) - 1; (INB)- 1 -
17816403 OIL PRESSURE WARNING LAMP
QUANTITIES: (STRN DRV) - 1; (INB)- 1OIL PRESSURE WARNING LAMP
QUANTITIES: (STRN DRV) - 1; (INB)- 1 -
18801334113 TOUCH CONTACTOR
QUANTITIES: (STRN DRV) - 3; (INB)- 3TOUCH CONTACTOR
QUANTITIES: (STRN DRV) - 3; (INB)- 3 -
1984-801764124 HARNESS
QUANTITIES: (STRN DRV) - 1; (INB)- 1HARNESS
QUANTITIES: (STRN DRV) - 1; (INB)- 1 -
2087-801764125 TRAILERING SWITCH
QUANTITIES: (STRN DRV) - 1; (INB) -TRAILERING SWITCH
QUANTITIES: (STRN DRV) - 1; (INB) - -
2187-801334110 COVER
QUANTITIES: (STRN DRV) - 3; (INB) -3COVER
QUANTITIES: (STRN DRV) - 3; (INB) -3 -
22801334124 INSTRUMENT PANEL
QUANTITIES: (STRN DRV) - 3; (INB) -3INSTRUMENT PANEL
QUANTITIES: (STRN DRV) - 3; (INB) -3 -
23801334129 BUZZER
QUANTITIES: (STRN DRV) - 1; (INB)- 1BUZZER
QUANTITIES: (STRN DRV) - 1; (INB)- 1 -
2479-812391 TRIM INDICATOR GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) -TRIM INDICATOR GAUGE
QUANTITIES: (STRN DRV) - 1; (INB) - -
2584-812694 OVERRIDE HARNESS
QUANTITIES: (STRN DRV) - 1; (INB) -OVERRIDE HARNESS
QUANTITIES: (STRN DRV) - 1; (INB) - -
26813905 INSTRUMENT PANEL
QUANTITIES: (STRN DRV) - 1; (INB)- 1INSTRUMENT PANEL
QUANTITIES: (STRN DRV) - 1; (INB)- 1 -
27801334216 COVER
QUANTITIES: (STRN DRV) - ; (INB) -1COVER
QUANTITIES: (STRN DRV) - ; (INB) -1 -
2819-812390 PLUG
QUANTITIES: (STRN DRV) - ; (INB) -1PLUG
QUANTITIES: (STRN DRV) - ; (INB) -1 -
2932-801764018 HARNESS
QUANTITIES: (STRN DRV) - 1; (INB)- 1HARNESS
QUANTITIES: (STRN DRV) - 1; (INB)- 1 -
801334401 KEY 93401KEY 93401
-
801334402 KEY 93402KEY 93402
-
801334403 KEY 93403KEY 93403
-
801334404 KEY 93404KEY 93404
-
801334405 KEY 93405KEY 93405
-
801334406 KEY 93406KEY 93406
-
801334407 KEY 93407KEY 93407
-
801334408 KEY 93408KEY 93408
-
801334409 KEY 93409KEY 93409
-
801334410 KEY 93410KEY 93410
-
801334411 KEY 93411KEY 93411
-
801334412 KEY 93412KEY 93412
-
801334413 KEY 93413KEY 93413
-
801334414 KEY 93414KEY 93414
-
801334415 KEY 93415KEY 93415
-
801334416 KEY 93416KEY 93416
-
801334417 KEY 93417KEY 93417
-
801334418 KEY 93418KEY 93418
-
801334419 KEY 93419KEY 93419
-
801334420 KEY 93420KEY 93420
-
801334421 KEY 93421KEY 93421
-
801334422 KEY 93422KEY 93422
-
801334423 KEY 93423KEY 93423
-
801334424 KEY 93424KEY 93424
-
801334425 KEY 93425KEY 93425
