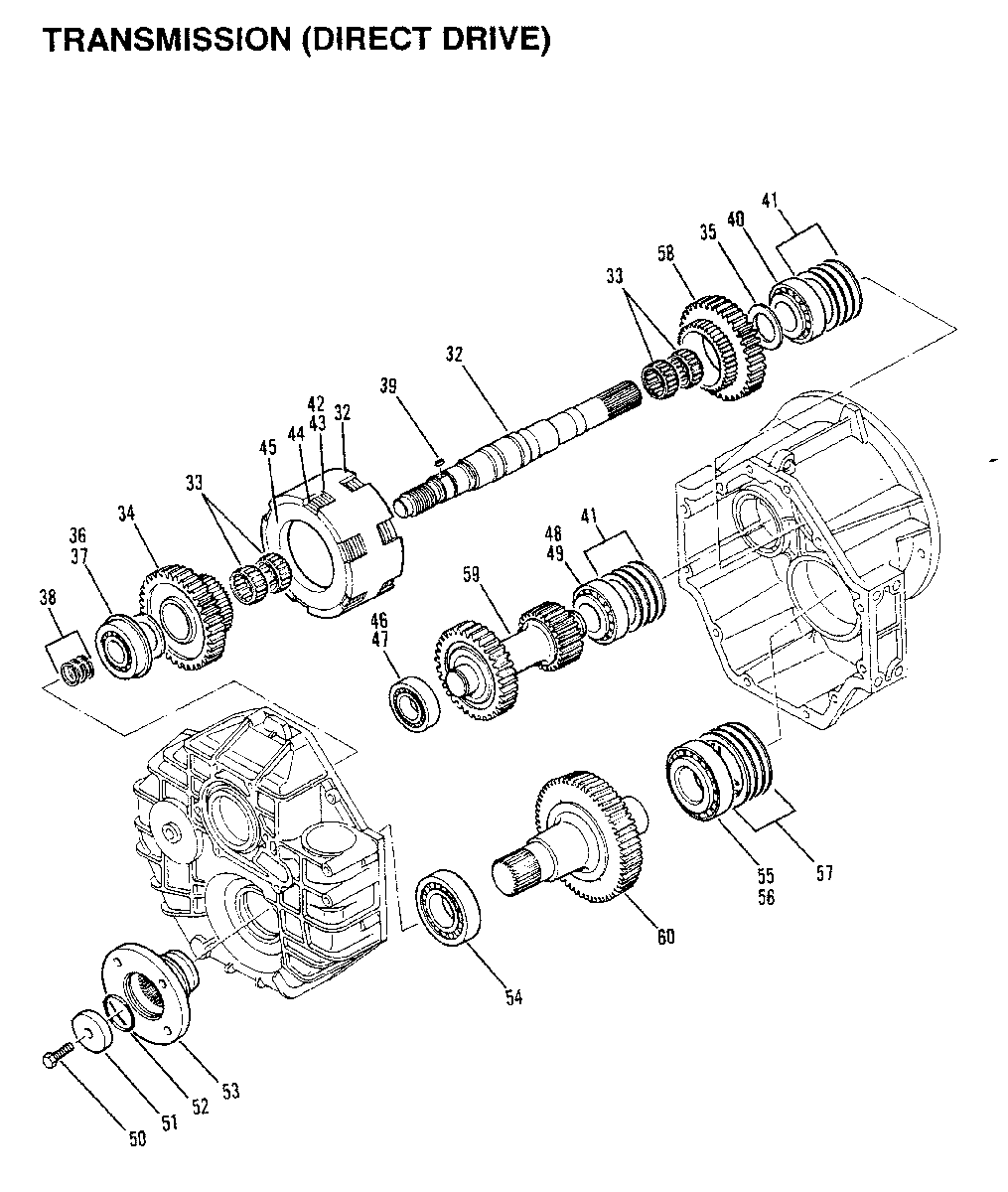

TRANSMISSION (DIRECT DRIVE) (INBOARD) для Mercruiser - D254 TURBO AC (BRAVO) VM 254 I/L6 1990-1993 0C849461 THRU 0D554731
-
№АртикулНазвание
-
-863744T2 TRANSMISSION (1.5:1 RATIO)TRANSMISSION (1.5:1 RATIO)
-
-863744T3 TRANSMISSION (2.0:1 RATIO)TRANSMISSION (2.0:1 RATIO)
-
-863744T4 TRANSMISSION (2.5:1 RATIO)TRANSMISSION (2.5:1 RATIO)
-
32813306 INPUT SHAFTINPUT SHAFT
-
3331-813307 ROLLER BEARINGROLLER BEARING
-
3443-813308 GEARGEAR
-
3512-813309 WASHERWASHER
-
3631-852066 TAPERED ROLLER BEARING (INNER)TAPERED ROLLER BEARING (INNER)
-
3731-852066 TAPERED ROLLER BEARING (OUTER)TAPERED ROLLER BEARING (OUTER)
-
3853-813312 SNAP RINGSNAP RING
-
3928-813313 KEYKEY
-
4030-813314 BALL BEARINGBALL BEARING
-
4115-813315 SHIM (.10MM)SHIM (.10MM)
-
4115-813316 SHIM (.15MM)SHIM (.15MM)
-
4115-813317 SHIM (.20MM)SHIM (.20MM)
-
4115-813318 SHIM (.50MM)SHIM (.50MM)
-
42813319 INNER CLUTCH DISCINNER CLUTCH DISC
-
43813320 OUTER CLUTCH DISCOUTER CLUTCH DISC
-
4453-813321 SNAP RINGSNAP RING
-
45813322 PRESSURE DISCPRESSURE DISC
-
4631-813323 TAPERED ROLLER BEARING (INNER)TAPERED ROLLER BEARING (INNER)
-
4731-813324 TAPERED ROLLER BEARING (OUTER)TAPERED ROLLER BEARING (OUTER)
-
4831-813325 TAPERED ROLLER BEARING (INNER)TAPERED ROLLER BEARING (INNER)
-
4931-813326 TAPERED ROLLER BEARING (OUTER)TAPERED ROLLER BEARING (OUTER)
-
5010-813327 SCREWSCREW
-
5123-813328 SPACERSPACER
-
5225-813329 O-RINGO-RING
-
53813330 OUTPUT FLANGEOUTPUT FLANGE
-
5431-813331 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
5531-813332 TAPERED ROLLER BEARING (INNER)TAPERED ROLLER BEARING (INNER)
-
5631-813333 TAPERED ROLLER BEARING (OUTER)TAPERED ROLLER BEARING (OUTER)
-
5715-813334 SHIM (.10MM)SHIM (.10MM)
-
5715-813335 SHIM (.15MM)SHIM (.15MM)
-
5715-813336 SHIM (.30MM)SHIM (.30MM)
-
5715-813337 SHIM (.50MM)SHIM (.50MM)
-
5843-813338 GEAR (1.5:1 RATIO)GEAR (1.5:1 RATIO)
-
59813339 INTERMEDIATE SHAFT (1.5:1 RATIO)INTERMEDIATE SHAFT (1.5:1 RATIO)
-
60813340 OUTPUT SHAFT (1.5:1 RATIO)OUTPUT SHAFT (1.5:1 RATIO)
-
5843-813341 GEAR (2.0:1 RATIO)GEAR (2.0:1 RATIO)
-
59813342 INTERMEDIATE SHAF (2.0:1 RATIO)INTERMEDIATE SHAF (2.0:1 RATIO)
-
60813343 OUTPUT SHAFT (2.0:1 RATIO)OUTPUT SHAFT (2.0:1 RATIO)
-
5843-813344 GEAR (2.5:1 RATIO)GEAR (2.5:1 RATIO)
-
59813345 INTERMEDIATE SHAFT (2.5:1 RATIO)INTERMEDIATE SHAFT (2.5:1 RATIO)
-
60813346 OUTPUT SHAFT (2.5:1 RATIO)OUTPUT SHAFT (2.5:1 RATIO)
