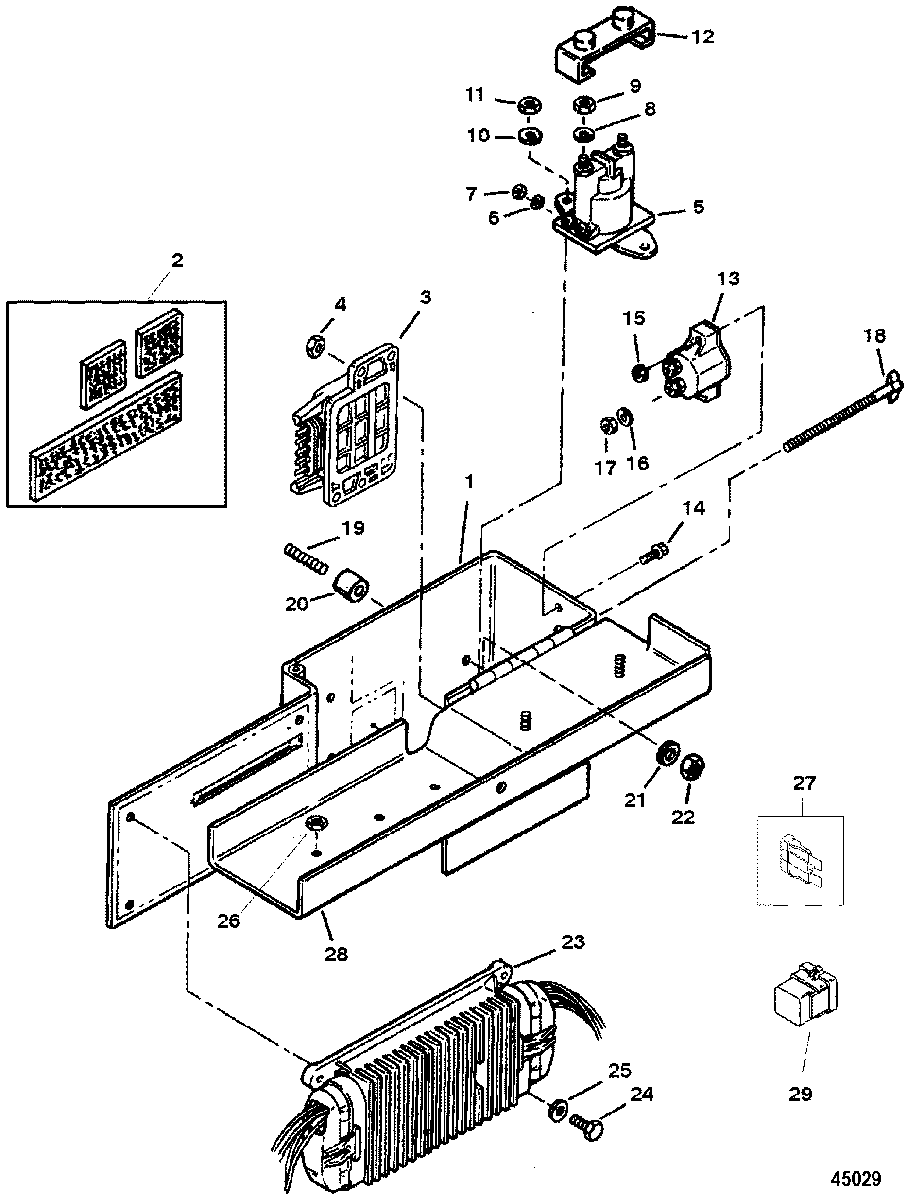

ELECTRICAL BOX AND COMPONENTS для Mercruiser - 350 MAG. EFI SKI (TBI) GM 350 V-8 1994-1996 0F215561 THRU 0F820706
-
№АртикулНазвание
-
1805439T BOX, Electrical
(USE WITH THUMB SCREW, REF. # 27)BOX, Electrical
(USE WITH THUMB SCREW, REF. # 27) -
1807323A5 BOX ASSEMBLY, Electrical Components
USE WITH LOCKING CLIPBOX ASSEMBLY, Electrical Components
USE WITH LOCKING CLIP -
2806762A1 VELCRO KIT
USE WITH LOCKING CLIPVELCRO KIT
USE WITH LOCKING CLIP -
3806611T MODULE, Knock ControlMODULE, Knock Control
-
411-64015 NUT, (.250-20)NUT, (.250-20)
-
589-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
613-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
711-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
911-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1012-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1111-64015 NUT, (.250-20)NUT, (.250-20)
-
1285-97861 INSULATORINSULATOR
-
1388-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1410-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
1511-61356 NUT, (#10-32) Reduced HexNUT, (#10-32) Reduced Hex
-
1613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1711-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
18805615A2 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
1910-24323 SET SCREW, (.250-20 x 1.25)SET SCREW, (.250-20 x 1.25)
-
2023-806981 SPACERSPACER
-
2112-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
2211-64015 NUT, (.250-20)NUT, (.250-20)
-
23806720T7 ECM, Engine Control Module
USE WITH 5/8 IN. SCREWECM, Engine Control Module
USE WITH 5/8 IN. SCREW -
2410-54615 SCREW, (.250-20 x .625)
USE WITH 5/8 IN. SCREWSCREW, (.250-20 x .625)
USE WITH 5/8 IN. SCREW -
23806720T7 ECM, Engine Control Module
USE WITH 1-1/4 IN. SCREWECM, Engine Control Module
USE WITH 1-1/4 IN. SCREW -
2410-76596 SCREW, (.250-20 x 1.250)
USE WITH 1-1/4 IN. SCREWSCREW, (.250-20 x 1.250)
USE WITH 1-1/4 IN. SCREW -
2512-20533 WASHERWASHER
-
2611-805562 NUT, (#10-24)NUT, (#10-24)
-
27805615A1 THUMB SCREW ASSEMBLY
(USE WHERE APPLICABLE)THUMB SCREW ASSEMBLY
(USE WHERE APPLICABLE) -
2888-804642 FUSE, 15 AmpereFUSE, 15 Ampere
-
28862647 FUSE, 10 AmpereFUSE, 10 Ampere
-
29805439T1 COVER, Electrical
(USE WITH THUMB SCREW, REF. # 27)COVER, Electrical
(USE WITH THUMB SCREW, REF. # 27) -
29805439T3 LID, Electrical Box
USE WITH LOCKING CLIPLID, Electrical Box
USE WITH LOCKING CLIP -
3086-865202T RELAY, Fuel PumpRELAY, Fuel Pump
-
3086-865202T RELAY, Fuel PumpRELAY, Fuel Pump
