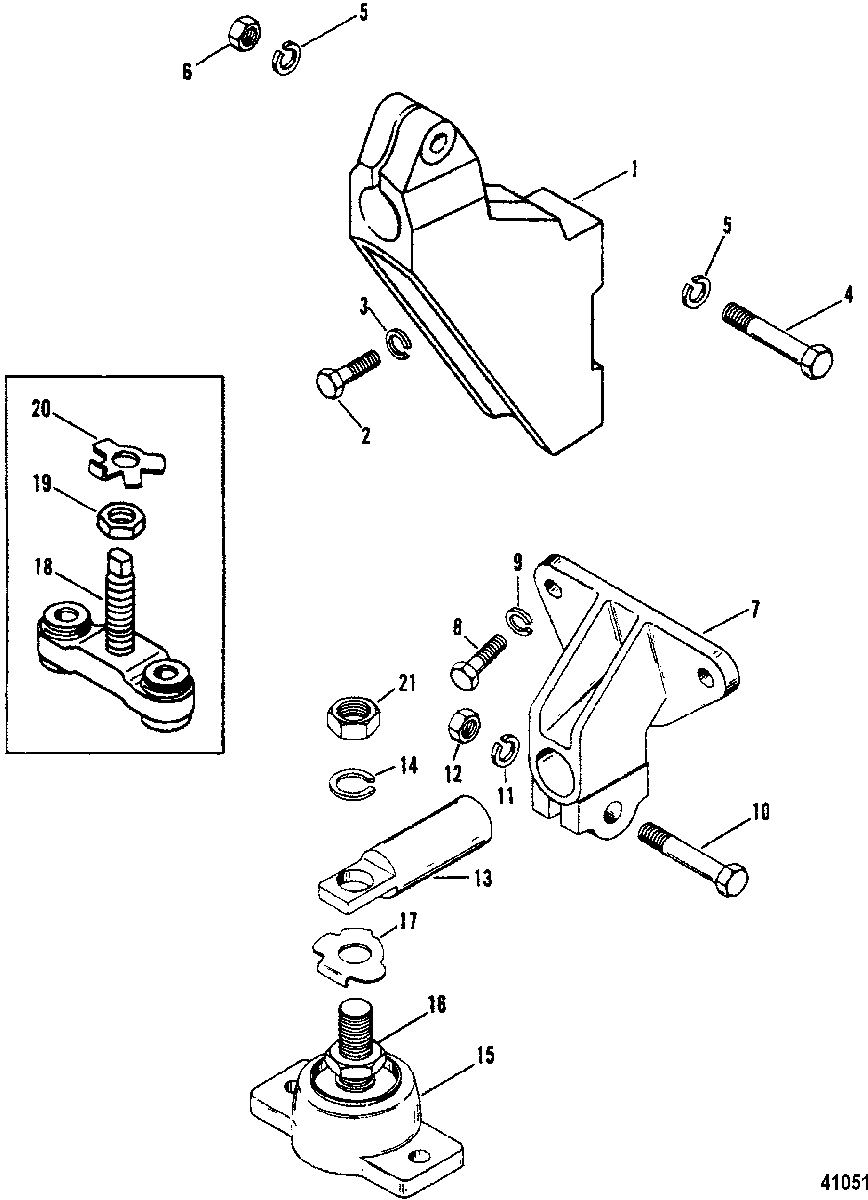

TRANSMISSION AND ENGINE MOUNTING для Mercruiser - 350 MAG. EFI SKI (TBI) GM 350 V-8 1994-1996 0F215561 THRU 0F820706
-
№АртикулНазвание
-
1805597A1 BRACKET
(TRANSMISSION)BRACKET
(TRANSMISSION) -
210-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
410-57357 SCREW, (.437-13 x 2.250)SCREW, (.437-13 x 2.250)
-
513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
611-82670814 NUT, (.437-14)NUT, (.437-14)
-
771128A2 BRACKET
(ENGINE)BRACKET
(ENGINE) -
810-68101 SCREW, (.375-16 x 1.375)SCREW, (.375-16 x 1.375)
-
913-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1010-57357 SCREW, (.437-13 x 2.250)SCREW, (.437-13 x 2.250)
-
1113-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1211-82670814 NUT, (.437-14)NUT, (.437-14)
-
1366166A4 TRUNNIONTRUNNION
-
1413-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
1566284A2 BASE ASSEMBLY
ENGINEBASE ASSEMBLY
ENGINE -
1611-20739 NUT, (.750-16)
ENGINENUT, (.750-16)
ENGINE -
1714-66658 TAB WASHER
ENGINETAB WASHER
ENGINE -
18816326A2 BASE ASSEMBLY
TRANSMISSIONBASE ASSEMBLY
TRANSMISSION -
1911-816331 NUT, (.750-16)
TRANSMISSIONNUT, (.750-16)
TRANSMISSION -
2014-66658 TAB WASHER
TRANSMISSIONTAB WASHER
TRANSMISSION -
2111-20739 NUT, (.750-16)NUT, (.750-16)
