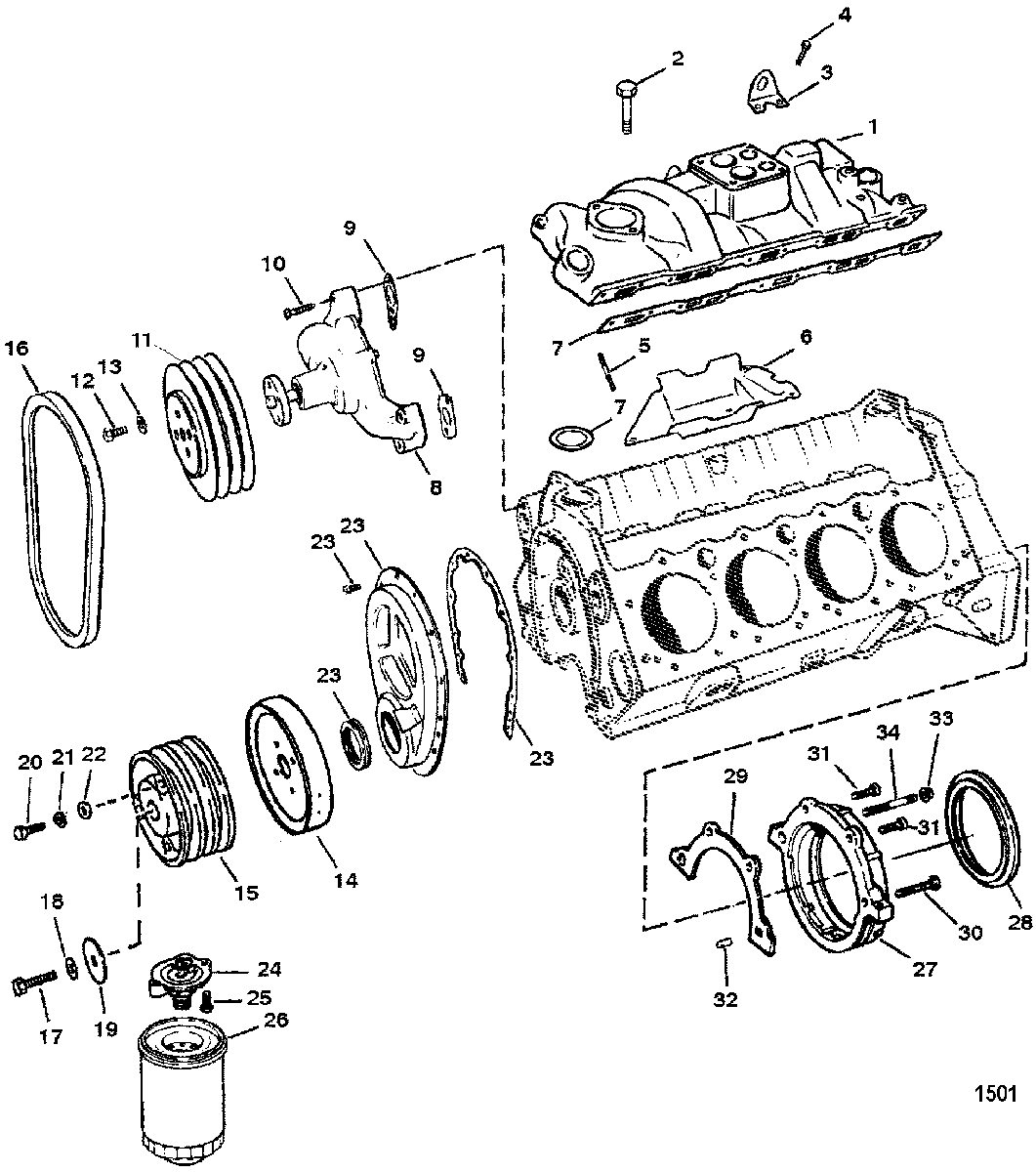

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 350 MAG. EFI SKI (TBI) GM 350 V-8 1994-1996 0F215561 THRU 0F820706
-
№АртикулНазвание
-
117620 MANIFOLD, IntakeMANIFOLD, Intake
-
210-11976 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
210-802655 BOLT, (3/8-16 x 1.25)BOLT, (3/8-16 x 1.25)
-
354-47512 LIFTING EYELIFTING EYE
-
410-34354 SCREW, (.375-16 x 1.50)SCREW, (.375-16 x 1.50)
-
5N.S.S. Not Sold Separate, STUD (GM#3959544)Not Sold Separate, STUD (GM#3959544)
-
672647 GUARDGUARD
-
727-17145 GASKET SET
(Use RTV Silicone Sealant for end gasket - See Service Manual)GASKET SET
(Use RTV Silicone Sealant for end gasket - See Service Manual) -
846-8M0113734 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
927-34897 GASKETGASKET
-
1010-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
1010-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
1010-52200 SCREW, (1.625 In.)SCREW, (1.625 In.)
-
1119692T01 PULLEY, (7 In. Diameter)PULLEY, (7 In. Diameter)
-
1210-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
1313-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
14809892T BALANCER, HarmonicBALANCER, Harmonic
-
1590081A1 PULLEYPULLEY
-
1657-48120Q1 V BELT, (46 Inch)V BELT, (46 Inch)
-
1710-8M2021674 SCREW, (.437-20 x 2.50)SCREW, (.437-20 x 2.50)
-
1813-39131 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1912-35332001 WASHERWASHER
-
2010-53833 BOLT, (.375-24 x 2.00)BOLT, (.375-24 x 2.00)
-
2113-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2212-34714 WASHERWASHER
-
23835005 COVER ASSEMBLY, Timing
(SCREWS, GROMMETS, OIL SEAL, AND GASKETS NOT SOLD SEPARATELY)COVER ASSEMBLY, Timing
(SCREWS, GROMMETS, OIL SEAL, AND GASKETS NOT SOLD SEPARATELY) -
2471920 VALVE ASSEMBLY, FilterVALVE ASSEMBLY, Filter
-
2510-54786 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2635-866340Q03 FILTER, OilFILTER, Oil
-
2714239 RETAINER, Oil Seal, RearRETAINER, Oil Seal, Rear
-
2826-8M0077606 SEAL, Oil, RearSEAL, Oil, Rear
-
2927-881715 GASKETGASKET
-
3010-8M0064241 BOLT, (.250-20 x 1.750)BOLT, (.250-20 x 1.750)
-
3110-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
3217-14263 PIN, DowelPIN, Dowel
-
3311-8M0098315 NUT, (.250-20)NUT, (.250-20)
-
3416-14827 STUD, (.250-20 x 2.180)STUD, (.250-20 x 2.180)
-
-27-806871A96 GASKET SET, OverhaulGASKET SET, Overhaul
