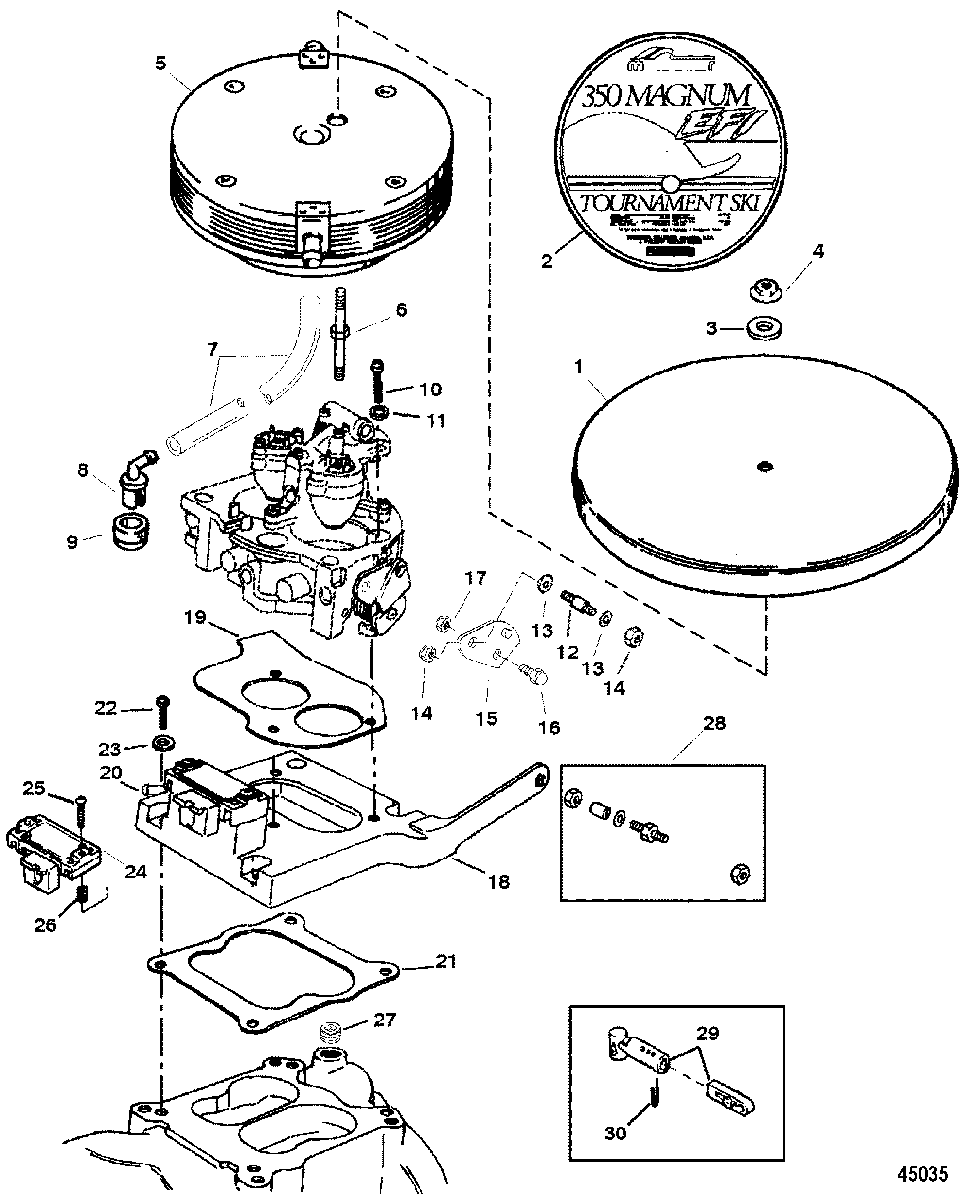

THROTTLE LINKAGE для Mercruiser - 350 MAG. EFI SKI (TBI) GM 350 V-8 1994-1996 0F215561 THRU 0F820706
-
№АртикулНазвание
-
114605T1 COVER, CarburetorCOVER, Carburetor
-
237-81893925 DECALDECAL
-
312-20533 WASHERWASHER
-
411-826709109 NUT, (.250-28)NUT, (.250-28)
-
5806637A1 FLAME ARRESTORFLAME ARRESTOR
-
616-806703 STUDSTUD
-
732-8M0086022 HOSE, BreatherHOSE, Breather
-
897850T ELBOW, 90 Degree, BreatherELBOW, 90 Degree, Breather
-
923-8M0071559 GROMMETGROMMET
-
1010-805390 SCREW, (.312-18 x 2.250)SCREW, (.312-18 x 2.250)
-
1112-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
1216-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
1312-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1411-826709109 NUT, (.250-28)NUT, (.250-28)
-
15806638T PLATE, Adaptor - Throttle LinkagePLATE, Adaptor - Throttle Linkage
-
1610-806742 SCREW, (.25-28 x .625)SCREW, (.25-28 x .625)
-
1711-8267089 NUT, (.250-28)NUT, (.250-28)
-
18806652A1 ADAPTOR ASSEMBLYADAPTOR ASSEMBLY
-
1927-8M0077609 GASKETGASKET
-
2022-805691 FITTING, (.250) BarbFITTING, (.250) Barb
-
2127-524572 GASKETGASKET
-
2210-79436 SCREW, (.312-18 x 1.250) Stainless SteelSCREW, (.312-18 x 1.250) Stainless Steel
-
2312-843108 WASHER, (.330 x .560 x .060) Stainless SteelWASHER, (.330 x .560 x .060) Stainless Steel
-
24864856A1 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
2510-807120 SCREW, (#10-24 x 1.00)SCREW, (#10-24 x 1.00)
-
2626-805412 SEALSEAL
-
2722-12524 PLUG, (.375)PLUG, (.375)
-
2816-97477A3 STUD KITSTUD KIT
-
2964-892790A01 ADAPTOR KITADAPTOR KIT
-
3064-892790A01 CLIPCLIP
-
-27-806871A96 GASKET SET, OverhaulGASKET SET, Overhaul
