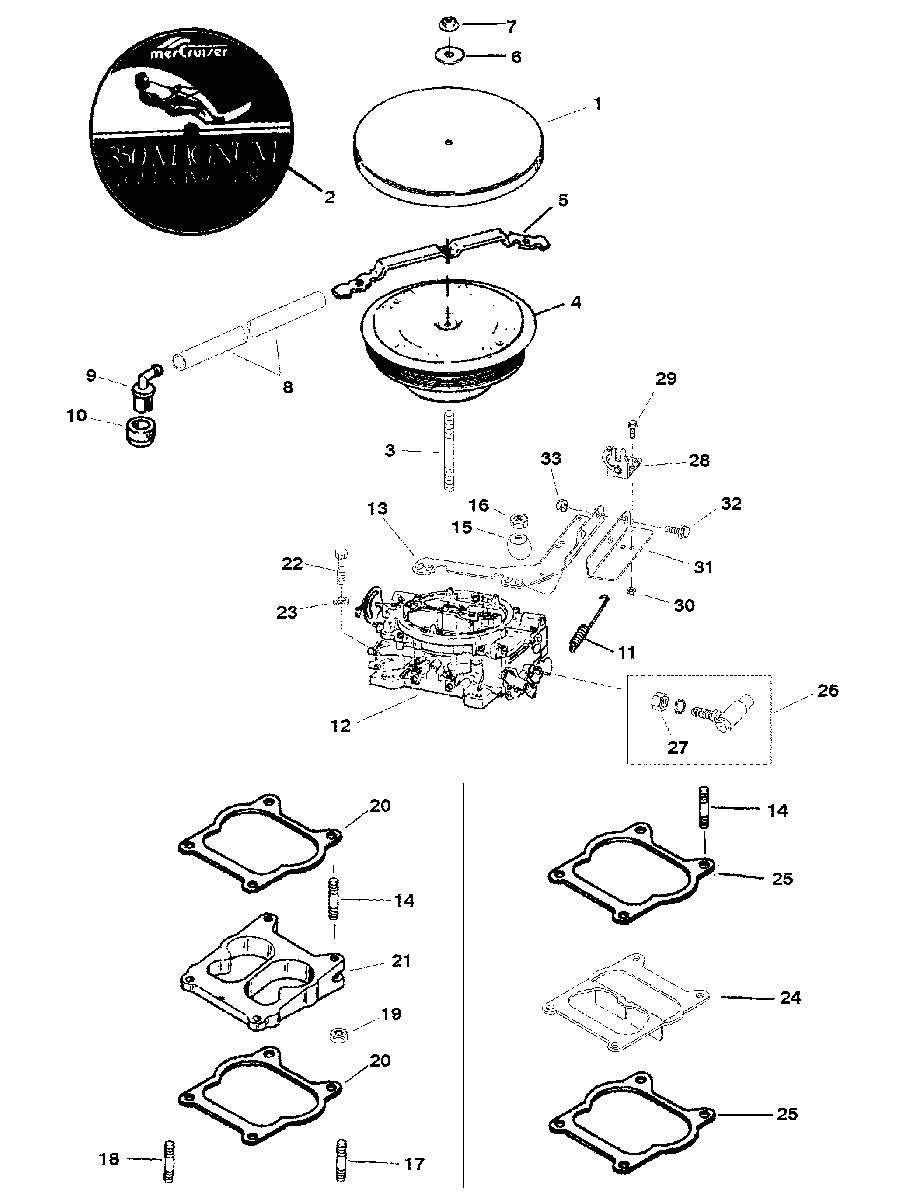

CARBURETOR AND THROTTLE LINKAGE для Mercruiser - 350 MAG (SKI) GM 350 V-8 1997 0K040400 THRU 0K999999
-
№АртикулНазвание
-
114605T1 COVER-CARBURETORCOVER-CARBURETOR
-
237-81893938 DECALDECAL
-
316-805296 STUD (4-1/2 IN.)STUD (4-1/2 IN.)
-
4805298A1 FLAME ARRESTORFLAME ARRESTOR
-
5805314 RETAINER-BREATHER HOSERETAINER-BREATHER HOSE
-
612-20533 WASHERWASHER
-
711-826709109 NUT (1/4-28)NUT (1/4-28)
-
832-8M0062669 HOSEHOSE
-
997850T ELBOW (90 DEG.)ELBOW (90 DEG.)
-
1023-8M0071559 GROMMETGROMMET
-
1124-897454 SPRINGSPRING
-
123310-807262R02 CARBURETOR ASSEMBLY
(IN-LINE)CARBURETOR ASSEMBLY
(IN-LINE) -
123310-860371A1 CARBURETOR ASSEMBLY
(V-DRIVE)CARBURETOR ASSEMBLY
(V-DRIVE) -
13805359T BRACKETBRACKET
-
1416-53724 STUD (5/16 X 1-3/4 IN.)STUD (5/16 X 1-3/4 IN.)
-
1512-20084 WASHERWASHER
-
1611-29250 NUT (5/16-24)NUT (5/16-24)
-
1716-63332 STUD (5/16 X 1-9/32 IN.)STUD (5/16 X 1-9/32 IN.)
-
1816-8M0113177 STUD (5/16 X 1-1/2 IN.)STUD (5/16 X 1-1/2 IN.)
-
1911-862902 NUT (5/16-24)
(IN-LINE)NUT (5/16-24)
(IN-LINE) -
2027-524572 GASKETGASKET
-
21821109T WEDGE-CARBURETORWEDGE-CARBURETOR
-
2210-35386 SCREW (5/16-18 X 1 IN.)SCREW (5/16-18 X 1 IN.)
-
2313-39107 LOCKWASHER
(V-DRIVE)LOCKWASHER
(V-DRIVE) -
24807228A1 SPACERSPACER
-
2527-524572 GASKETGASKET
-
26807484 BALL JOINT KITBALL JOINT KIT
-
2711-8267089 NUT (1/4-28)NUT (1/4-28)
-
28807485T BRACKET-THROTTLE CABLEBRACKET-THROTTLE CABLE
-
2910-89766 SCREW (#10-32 X 5/8 IN.)SCREW (#10-32 X 5/8 IN.)
-
3011-826709106 NUT (#10-32)NUT (#10-32)
-
31807805T BRACKETBRACKET
-
3210-38601 SCREW (1/4-28 X 5/8 IN.)SCREW (1/4-28 X 5/8 IN.)
-
3311-8267089 NUT (1/4-28)NUT (1/4-28)
-
-27-806871A96 GASKET SET-ENGINE OVERHAULGASKET SET-ENGINE OVERHAUL
