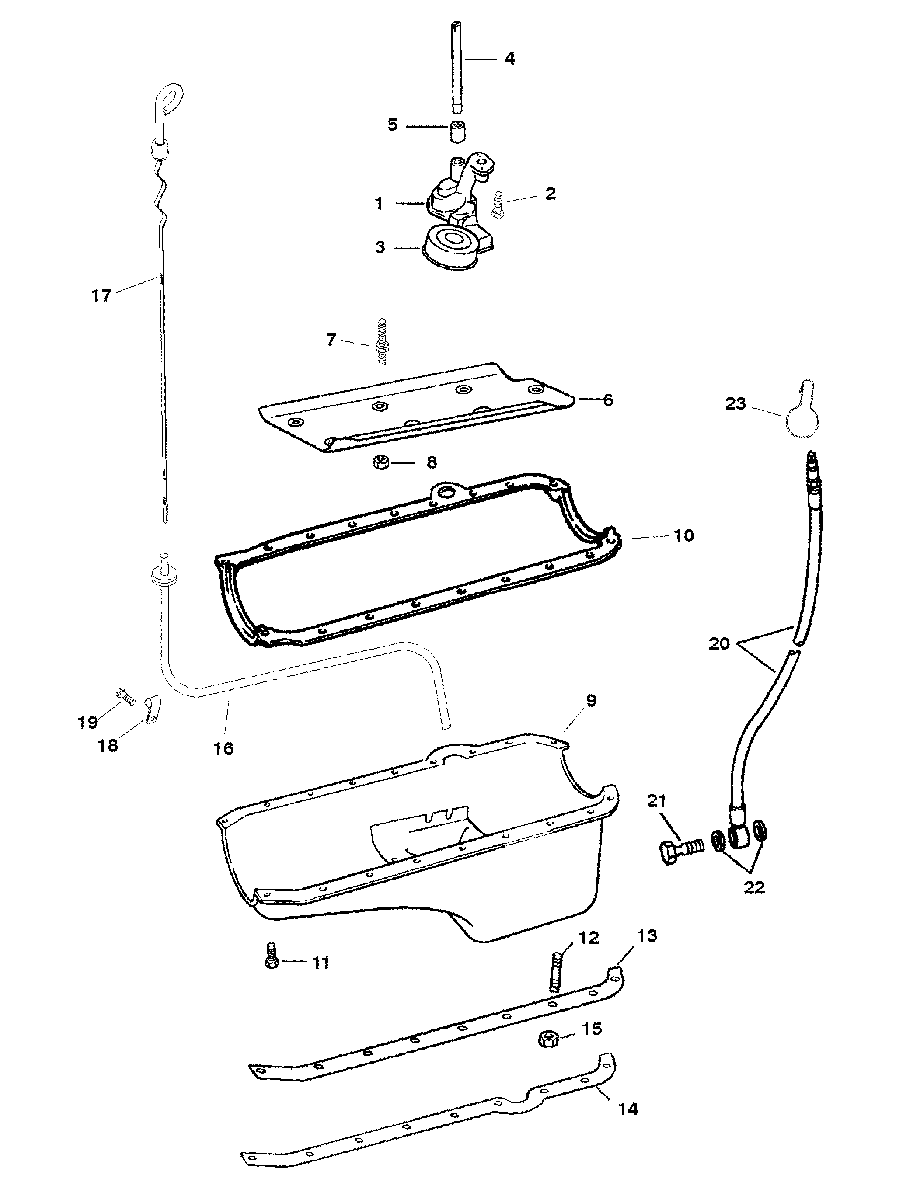

OIL PAN AND OIL PUMP для Mercruiser - 350 MAG (SKI) GM 350 V-8 1997 0K040400 THRU 0K999999
-
№АртикулНазвание
-
1809907002 PUMP-OILPUMP-OIL
-
210-17346 BOLT-OIL PUMPBOLT-OIL PUMP
-
3809909 SCREEN-OIL PUMP PICK-UPSCREEN-OIL PUMP PICK-UP
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 DEFLECTOR-OILDEFLECTOR-OIL
-
716-850090 STUDSTUD
-
811-845602 NUT (3/8-16)NUT (3/8-16)
-
9809910 OIL PANOIL PAN
-
1027-138651 GASKET-OIL PANGASKET-OIL PAN
-
1110-14070 SCREW (1/4-20 X 5/8 IN.)SCREW (1/4-20 X 5/8 IN.)
-
1216-11989 STUDSTUD
-
1314257 REINFORCEMENT
(PORT)REINFORCEMENT
(PORT) -
1414256 REINFORCEMENT
(STARBOARD)REINFORCEMENT
(STARBOARD) -
1511-11971 NUTNUT
-
16860274A2 TUBE-DIPSTICKTUBE-DIPSTICK
-
17861942T7 DIPSTICKDIPSTICK
-
1854-805625 CLIP-DIPSTICK TUBECLIP-DIPSTICK TUBE
-
1910-8M0040582 SCREW (1/4-20 X 9/16 IN.)SCREW (1/4-20 X 9/16 IN.)
-
2032-805505A1 HOSE ASSEMBLY-OIL DRAINHOSE ASSEMBLY-OIL DRAIN
-
21807497 BOLT-BANJOBOLT-BANJO
-
2227-8M0077608 GASKETGASKET
-
2354-805524 CLIPCLIP
-
-27-806871A96 GASKET SET-ENGINE OVERHAULGASKET SET-ENGINE OVERHAUL
Все узлы модели:
- ALTERNATOR
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE
- CRANKSHAFT AND FLYWHEEL
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- EXH. MANIFOLD & CAST IRON EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- MISCELLANEOUS INFORMATION
- • OIL PAN AND OIL PUMP
- PISTONS AND CONNECTING RODS
- SEA WATER PUMP ASSEMBLY
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- TRANSMISSION (V-DRIVE) (WALTER)
- TRANSMISSION AND ENGINE MOUNTING
- TRANSMISSION AND RELATED PARTS
- WIRING HARNESS AND ELECTRICAL COMPONENTS
