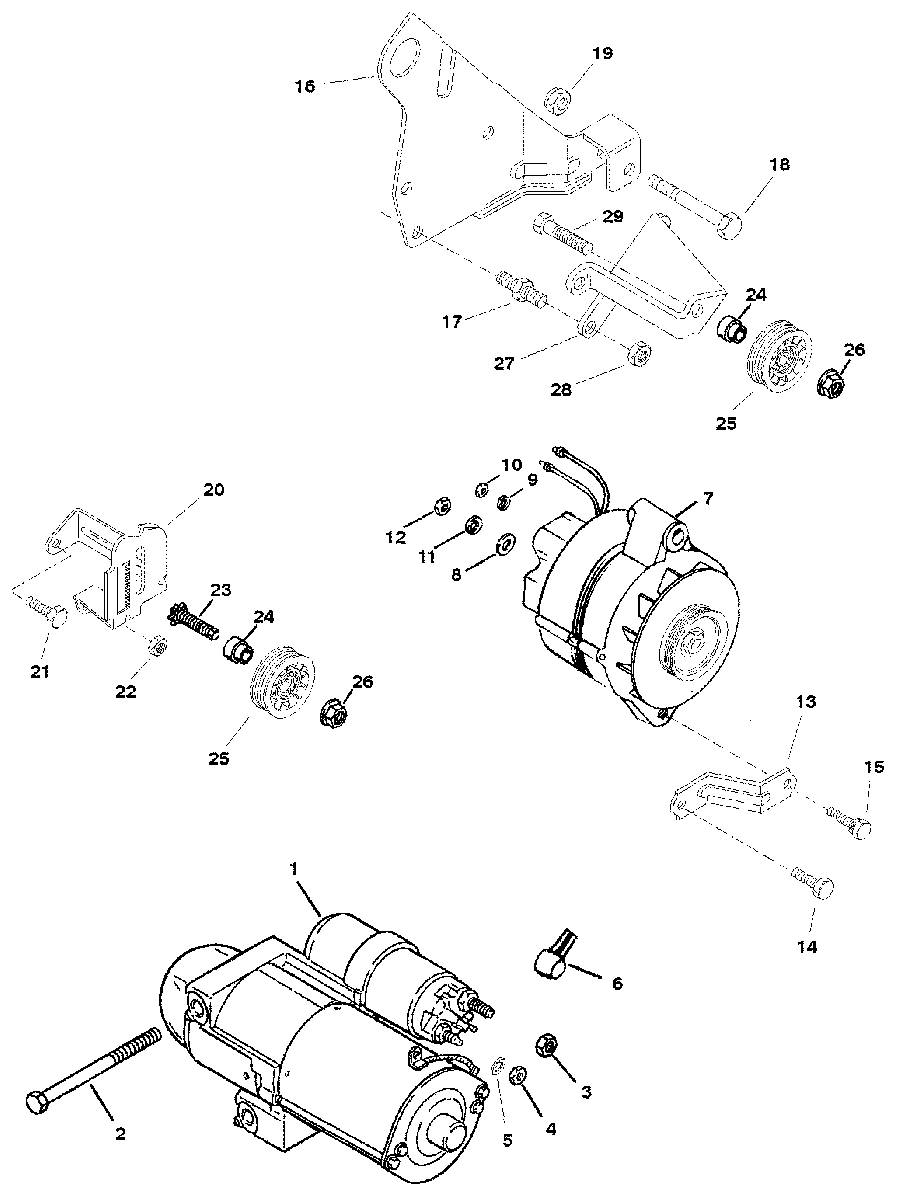

STARTER MOTOR AND ALTERNATOR для Mercruiser - 350 MAG (SKI) GM 350 V-8 1997 0K040400 THRU 0K999999
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLY
(SEE "STARTER MOTOR" FOR BREAKDOWN)STARTER MOTOR ASSEMBLY
(SEE "STARTER MOTOR" FOR BREAKDOWN) -
210-8053432 SCREW (3/8-16 X 4-3/8 IN.)SCREW (3/8-16 X 4-3/8 IN.)
-
311-806949 NUT (M8-1.5)NUT (M8-1.5)
-
411-400211 NUT (M5-0.8)NUT (M5-0.8)
-
513-26996 LOCKWASHER (#10)LOCKWASHER (#10)
-
685-79695T BOOT-INSULATORBOOT-INSULATOR
-
7807652T ALTERNATOR ASSEMBLY
(SEE "ALTERNATOR" FOR BREAKDOWN)ALTERNATOR ASSEMBLY
(SEE "ALTERNATOR" FOR BREAKDOWN) -
812-96457 WASHER-PHENOLICWASHER-PHENOLIC
-
913-26996 LOCKWASHER (#10)LOCKWASHER (#10)
-
1011-79989 NUT (#10-24)NUT (#10-24)
-
1113-26992 LOCKWASHER (1/4 IN.)LOCKWASHER (1/4 IN.)
-
1211-94330 NUT (1/4-20)NUT (1/4-20)
-
13807750T BRACEBRACE
-
1410-98261 SCREW (3/8-16 X 3/4 IN.)SCREW (3/8-16 X 3/4 IN.)
-
1510-29198 SCREW & LOCKWASHER (5/16-18 X 7/8 IN.)SCREW & LOCKWASHER (5/16-18 X 7/8 IN.)
-
16860370T1 BRACKET-ALTERNATORBRACKET-ALTERNATOR
-
1716-860102 STUDSTUD
-
1810-56743 SCREW (3/8-24 X 3-1/8 IN.)SCREW (3/8-24 X 3-1/8 IN.)
-
1911-23161 NUT (3/8-24)NUT (3/8-24)
-
20807767T BRACKET-IDLER ADJUSTMENTBRACKET-IDLER ADJUSTMENT
-
2110-98261 SCREW (3/8-16 X 3/4 IN.)SCREW (3/8-16 X 3/4 IN.)
-
2211-29250 NUT (5/16-24)NUT (5/16-24)
-
2343-8M0113182 PINION STUDPINION STUD
-
24865193 BUSHINGBUSHING
-
25807757T PULLEYPULLEY
-
2611-859135 NUT (7/16-20)NUT (7/16-20)
-
27807753T1 BRACKET-IDLERBRACKET-IDLER
-
2811-32219 NUT (3/8-16)NUT (3/8-16)
-
2910-816601 SCREW (7/16-20 X 1-1/2 IN.)SCREW (7/16-20 X 1-1/2 IN.)
