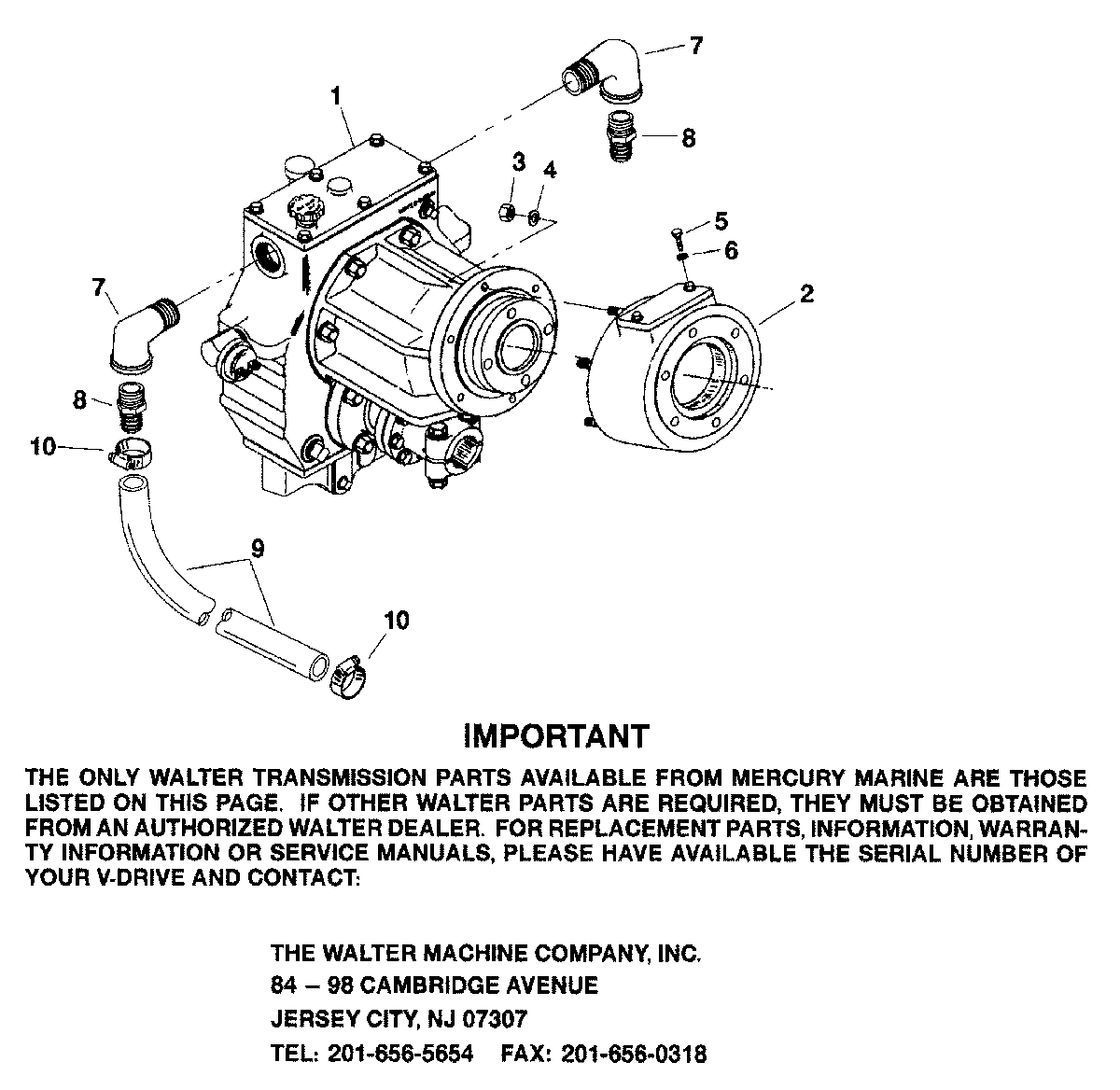

TRANSMISSION (V-DRIVE) (WALTER) для Mercruiser - 350 MAG (SKI) GM 350 V-8 1997 0K040400 THRU 0K999999
-
№АртикулНазвание
-
1860361A6 TRANSMISSION ASSEMBLY
(1.00:1 RATIO)TRANSMISSION ASSEMBLY
(1.00:1 RATIO) -
1860362A2 TRANSMISSION ASSEMBLY
(1.46:1 RATIO)TRANSMISSION ASSEMBLY
(1.46:1 RATIO) -
2860308A3 HOUSING ASSEMBLY-ADAPTORHOUSING ASSEMBLY-ADAPTOR
-
311-86226 NUT (3/8-16)NUT (3/8-16)
-
413-35048 LOCKWASHER (3/8 IN.)LOCKWASHER (3/8 IN.)
-
510-28636 SCREW (1/4-20 X 3/4 IN.)SCREW (1/4-20 X 3/4 IN.)
-
613-26992 LOCKWASHER (1/4 IN.)LOCKWASHER (1/4 IN.)
-
722-860378 ELBOW (90 DEGREE)ELBOW (90 DEGREE)
-
822-860379 FITTING-BARBFITTING-BARB
-
932-8M0062666 HOSE (TO SEA WATER PUMP)HOSE (TO SEA WATER PUMP)
-
1054-815504222 CLAMP-HOSECLAMP-HOSE
