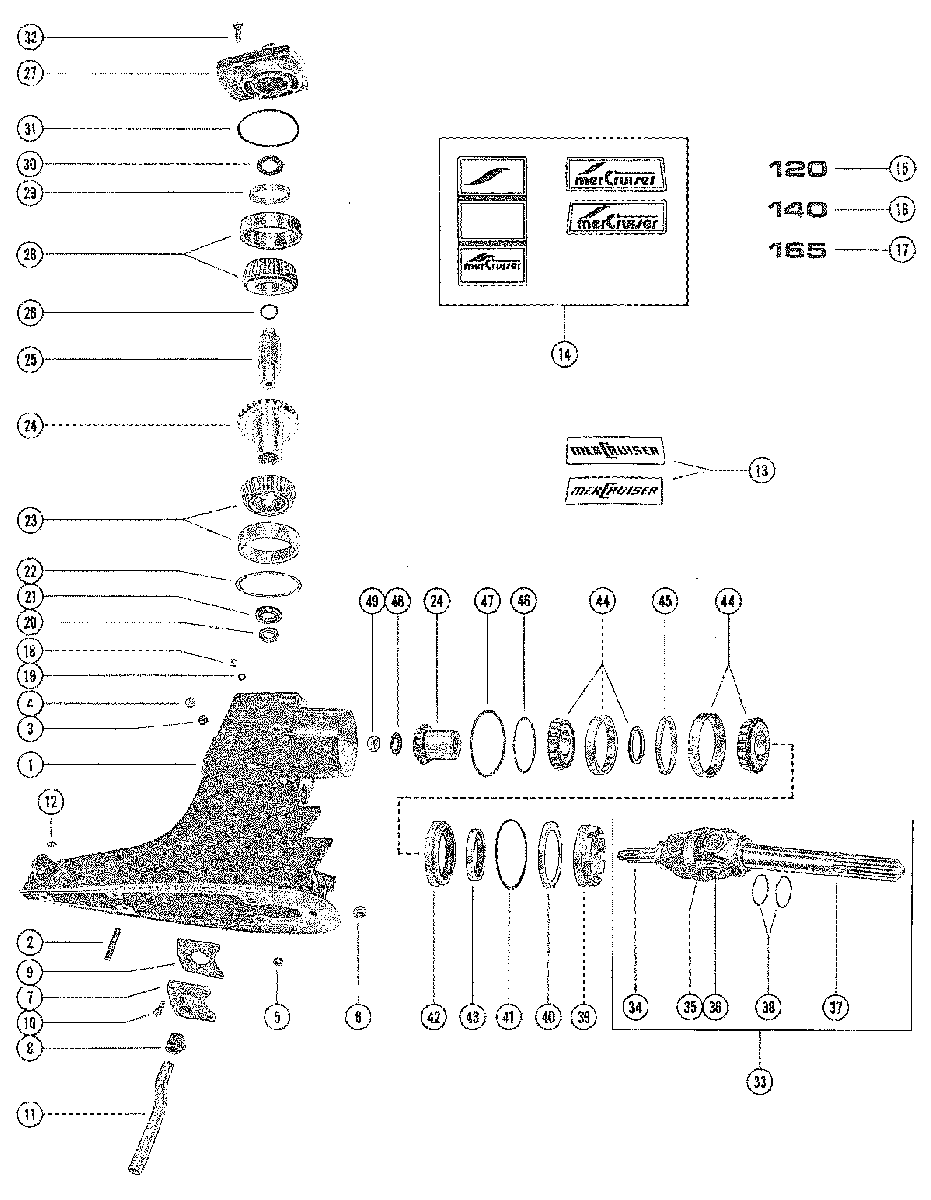

DIRVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY для Mercruiser - 120/140 1970-1977 2791957 THRU 4893634
-
№АртикулНазвание
-
11547-9412A18 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-56295 STUD,DRIVE SHAFT HOUSING TO GEAR HOSUING(2 11/16")STUD,DRIVE SHAFT HOUSING TO GEAR HOSUING(2 11/16")
-
322-31704 PLUG,PIPE-DRIVE SHAFT HOUSING(WATER POCKET)PLUG,PIPE-DRIVE SHAFT HOUSING(WATER POCKET)
-
419-32652 WELCH PLUG,DRIVE SHAFT HOUSINGWELCH PLUG,DRIVE SHAFT HOUSING
-
523-32632 BUSHING,DRIVE SHAFT HOUSINGBUSHING,DRIVE SHAFT HOUSING
-
611-34933 NUT,GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT,GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
742724A3 COVER ASSEMBLY,WATER POCKET-DRIVE SHAFT HOUSINGCOVER ASSEMBLY,WATER POCKET-DRIVE SHAFT HOUSING
-
826-36557 SEAL,RUBBER-WATER POCKET COVERSEAL,RUBBER-WATER POCKET COVER
-
927-558101 GASKET,WATER POCKET COVERGASKET,WATER POCKET COVER
-
1010-28668 SCREW,WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8")SCREW,WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8")
-
1132-54236 TUBE,WATER-WATER POCKET COVERTUBE,WATER-WATER POCKET COVER
-
1219-32298 PLUG,TRIM TAB HOLE-DRIVE SHAFT HOUSINGPLUG,TRIM TAB HOLE-DRIVE SHAFT HOUSING
-
1337-56480A1 DECAL SET,DRIVE SHAFT HOUSING
SERIAL 00000000-04530701DECAL SET,DRIVE SHAFT HOUSING
SERIAL 00000000-04530701 -
1437-76731A1 DECAL SET,DRIVE SHAFT HOUSING
SERIAL 04530702-09999999DECAL SET,DRIVE SHAFT HOUSING
SERIAL 04530702-09999999 -
1537-76749 DECAL,DRIVE SHAFFT HOUSING -120
SERIAL 04530702-09999999DECAL,DRIVE SHAFFT HOUSING -120
SERIAL 04530702-09999999 -
1637-76750 DECAL,DRIVE SHAFT HOUSING-140
SERIAL 04530702-09999999DECAL,DRIVE SHAFT HOUSING-140
SERIAL 04530702-09999999 -
1737-76751 DECAL,DRIVE SHAFT HOUSING-165
SERIAL 04530702-09999999DECAL,DRIVE SHAFT HOUSING-165
SERIAL 04530702-09999999 -
1810-79953Q04 SCREW,DRIVE SHAFT HOUSING FILLER AND VENT HOLESCREW,DRIVE SHAFT HOUSING FILLER AND VENT HOLE
-
1912-191833 WASHER,DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCREWWASHER,DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCREW
-
2026-965031 OIL SEAL,DRIVE SHAFT HOUSING-LOWEROIL SEAL,DRIVE SHAFT HOUSING-LOWER
-
2126-32511 OIL SEAL,GEAR CHAMBER-DRIVE SHAFT HOUSINGOIL SEAL,GEAR CHAMBER-DRIVE SHAFT HOUSING
-
2215-36178A02 SHIM,BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15)SHIM,BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15)
-
2331-35990A1 TAPERED ROLLER BEARING ASSEMBLY,PINION GEARTAPERED ROLLER BEARING ASSEMBLY,PINION GEAR
-
2443-55778A3 GEAR ASSEMBLY,COMPLETE-MERCRUISER 120/140
(20-24 GEAR RATIO)-7.98 RATIOGEAR ASSEMBLY,COMPLETE-MERCRUISER 120/140
(20-24 GEAR RATIO)-7.98 RATIO -
2443-45814A5 GEAR ASSEMBLY,COMPLETE-MERCRUISER 165
(24-24 GEAR RATIO)-1.65 RATIOGEAR ASSEMBLY,COMPLETE-MERCRUISER 165
(24-24 GEAR RATIO)-1.65 RATIO -
2545-55796 DRIVE SHAFT,UPPERDRIVE SHAFT,UPPER
-
2625-55801 "O" RING.UPPER DRIVE SHAFT"O" RING.UPPER DRIVE SHAFT
-
2776098A1 COVER,TOP-DRIVE SHAFT HOUSING
SERIAL 00000000-03134193COVER,TOP-DRIVE SHAFT HOUSING
SERIAL 00000000-03134193 -
2831-32575T1 BEARING ASSEMBLY,DRIVE SHAFT
SERIAL 00000000-03134193BEARING ASSEMBLY,DRIVE SHAFT
SERIAL 00000000-03134193 -
2923-55798 SPACER,UPPER DRIVE SHAFT
SERIAL 00000000-03134193SPACER,UPPER DRIVE SHAFT
SERIAL 00000000-03134193 -
3024-55797 SPRING,UPPER DRIVE SHAFT(TOP COVER)
SERIAL 00000000-03134193SPRING,UPPER DRIVE SHAFT(TOP COVER)
SERIAL 00000000-03134193 -
2776098A1 COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
SERIAL 03213658-03443920COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
SERIAL 03213658-03443920 -
2831-61100A1 BEARING ASSEMBLY,DRIVE SHAFT
SERIAL 03213658-03443920BEARING ASSEMBLY,DRIVE SHAFT
SERIAL 03213658-03443920 -
3024-55797 SPRING,UPPER DRIVE SHAFT (TOP COVER0)
SERIAL 03213658-03443920SPRING,UPPER DRIVE SHAFT (TOP COVER0)
SERIAL 03213658-03443920 -
2776098A1 COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
SERIAL 03469428-04530701COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
SERIAL 03469428-04530701 -
2831-61100A1 BEARING ASSEMBLY,DRIVE SHAFT
SERIAL 03469428-04530701BEARING ASSEMBLY,DRIVE SHAFT
SERIAL 03469428-04530701 -
3015-45691A1 SHIM,BEARING CUP TO COVER
SERIAL 03469428-04530701SHIM,BEARING CUP TO COVER
SERIAL 03469428-04530701 -
2776098A1 COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
SERIAL 04530702-09999999COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
SERIAL 04530702-09999999 -
2831-61100A1 BEARING ASSEMBLY,DRIVE SHAFT
SERIAL 04530702-09999999BEARING ASSEMBLY,DRIVE SHAFT
SERIAL 04530702-09999999 -
3015-45691A1 SHIM,BEARING CUP TO TOP COVER
SERIAL 04530702-09999999SHIM,BEARING CUP TO TOP COVER
SERIAL 04530702-09999999 -
3125-32546 "O" RING,TOP COVER SEALING"O" RING,TOP COVER SEALING
-
3210-8M0113174 SCREW, TOP COVER TO DRIVE SHAFT HOUSING(1 1/4")SCREW, TOP COVER TO DRIVE SHAFT HOUSING(1 1/4")
-
3358858A1 UNIVERSAL JOINT ASSEMBLY,DRIVE GEARUNIVERSAL JOINT ASSEMBLY,DRIVE GEAR
-
3446020T02 YOKE,UNIVERSAL JOINT-GEAR ENDYOKE,UNIVERSAL JOINT-GEAR END
-
35393831 SOCKET,CENTER-UNIVERSAL JOINTSOCKET,CENTER-UNIVERSAL JOINT
-
3675832T1 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINTCROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
-
3739385A1 YOKE ASSEMBLY,UNIVERSAL JOINT-COUPLING ENDYOKE ASSEMBLY,UNIVERSAL JOINT-COUPLING END
-
3825-25439 "O" RING,UNIVERSAL JOINT"O" RING,UNIVERSAL JOINT
-
398168112 RETAINER,TAPERED ROLLER BEARING-UNIVERSAL JOINTRETAINER,TAPERED ROLLER BEARING-UNIVERSAL JOINT
-
4035983 RING,ROLLER BEARING RETAINER TO OIL SEAL CARRIERRING,ROLLER BEARING RETAINER TO OIL SEAL CARRIER
-
4125-70937 "O" RING,OIL SEAL CARRIER"O" RING,OIL SEAL CARRIER
-
4266081A2 CARRIER ASSEMBLY,OIL SEAL
SERIAL 00000000-03780849CARRIER ASSEMBLY,OIL SEAL
SERIAL 00000000-03780849 -
4266081A2 CARRIER ASSEMBLY,OIL SEAL
SERIAL 03780850-09999999CARRIER ASSEMBLY,OIL SEAL
SERIAL 03780850-09999999 -
4326-823894 OIL SEAL,CARRIEROIL SEAL,CARRIER
-
4431-35988A12 TAPERED ROLLER BEARING ASSEMBLY,DRIVE GEARTAPERED ROLLER BEARING ASSEMBLY,DRIVE GEAR
-
4523-35985 SPACER,DRIVE GEAR BEARING CUPSSPACER,DRIVE GEAR BEARING CUPS
-
4615-35980A1 SHIM,BEARING CUP TO DRIVE SHAFT HOUSING(.002-3-5-10-25)SHIM,BEARING CUP TO DRIVE SHAFT HOUSING(.002-3-5-10-25)
-
4723-8M0124132 SHIM,BEARING CUP TO DRIVE SHAFT HOUSINGSHIM,BEARING CUP TO DRIVE SHAFT HOUSING
-
4812-45810 WASHER,DRIVE GEAR TO UNIVERSAL JOINT NUTWASHER,DRIVE GEAR TO UNIVERSAL JOINT NUT
-
4911-22339 NUT,DRIVE GEAR TO UNIVERSAL JOINTNUT,DRIVE GEAR TO UNIVERSAL JOINT
