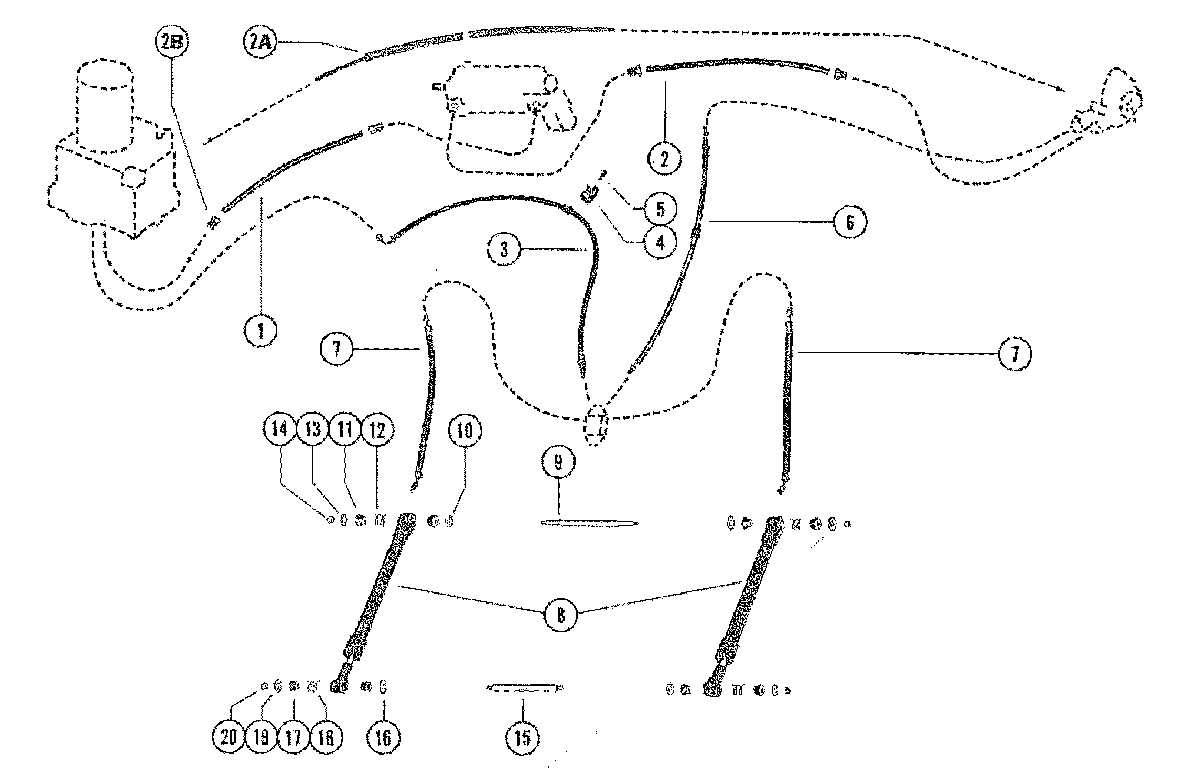

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercruiser - 120/140 1970-1977 2791957 THRU 4893634
-
№АртикулНазвание
-
132-52951A1 TUBING, HYDRAULIC PUMP TO TRIM SENDER (19" OR 35")
WITHOUT GIMBAL TRIM SENDERTUBING, HYDRAULIC PUMP TO TRIM SENDER (19" OR 35")
WITHOUT GIMBAL TRIM SENDER -
232-52951A1 TUBING, TRIM SENDER TO RESERVE VALVE (31" OR 21")
WITHOUT GIMBAL TRIM SENDERTUBING, TRIM SENDER TO RESERVE VALVE (31" OR 21")
WITHOUT GIMBAL TRIM SENDER -
2A32-52951A1 TUBING, HYDRAULIC PUMP TO REVERSE VALVE
WITH GIMBAL TRIM SENDERTUBING, HYDRAULIC PUMP TO REVERSE VALVE
WITH GIMBAL TRIM SENDER -
2B22-49718 FITTING, NUT - HYDRAULIC TUBEFITTING, NUT - HYDRAULIC TUBE
-
332-55816 HOSE, HYDRAULIC - CONNECTOR TO HYDRAULIC PUMP (BLACK) - 18"HOSE, HYDRAULIC - CONNECTOR TO HYDRAULIC PUMP (BLACK) - 18"
-
454-45806 CLAMP, HYDRAULIC HOSE TO TRANSOM PLATECLAMP, HYDRAULIC HOSE TO TRANSOM PLATE
-
510-35519 SCREW, HYDRAULIC HOSE CLAMP ATTACHING (1/2")SCREW, HYDRAULIC HOSE CLAMP ATTACHING (1/2")
-
632-55815 HOSE, HYDRAULIC - CONNNECTOR TO VALVE (GRAY) - 23 1/2")
SERIAL 00000000-03780849HOSE, HYDRAULIC - CONNNECTOR TO VALVE (GRAY) - 23 1/2")
SERIAL 00000000-03780849 -
732-86036Q HOSE, HYDRAULIC - CONNNECTOR TO TRIM CYLINDER (12 1/2")
SERIAL 00000000-03780849HOSE, HYDRAULIC - CONNNECTOR TO TRIM CYLINDER (12 1/2")
SERIAL 00000000-03780849 -
632-59842 HOSE, HYDRAULIC - CONNNECTOR TO VALVE (GRAY) - 29 1/2")
SERIAL 03780850-09999999HOSE, HYDRAULIC - CONNNECTOR TO VALVE (GRAY) - 29 1/2")
SERIAL 03780850-09999999 -
732-86036Q HOSE, HYDRAULIC - CONNNECTOR TO TRIM CYLINDER (12 1/2")
SERIAL 03780850-09999999HOSE, HYDRAULIC - CONNNECTOR TO TRIM CYLINDER (12 1/2")
SERIAL 03780850-09999999 -
845706A14 TRIM CYLINDER ASSEMBLY, COMPLETE
SEE PAGE 16 FOR REPAIR KIT BREAKDOWNTRIM CYLINDER ASSEMBLY, COMPLETE
SEE PAGE 16 FOR REPAIR KIT BREAKDOWN -
845522A3 PIVOT END REPAIR KIT, TRIM CYLINDER
SEE PAGE 16 FOR REPAIR KIT BREAKDOWNPIVOT END REPAIR KIT, TRIM CYLINDER
SEE PAGE 16 FOR REPAIR KIT BREAKDOWN -
877442A1 OUTER TUBE REPAIR KIT, TRIM CYLINDER
SEE PAGE 16 FOR REPAIR KIT BREAKDOWNOUTER TUBE REPAIR KIT, TRIM CYLINDER
SEE PAGE 16 FOR REPAIR KIT BREAKDOWN -
825-60342A2 "O" RING REPAIR KIT, TRIM CYLINDER
SEE PAGE 16 FOR REPAIR KIT BREAKDOWN"O" RING REPAIR KIT, TRIM CYLINDER
SEE PAGE 16 FOR REPAIR KIT BREAKDOWN -
917-45735 PIN, FRONT ANCHOR - TRIM CYLINDER TO GIMBAL RING (10 11/32")PIN, FRONT ANCHOR - TRIM CYLINDER TO GIMBAL RING (10 11/32")
-
1012-45737 WASHER, FRONT ANCHOR PINWASHER, FRONT ANCHOR PIN
-
1123-89574 BUSHING, RUBBER - FRONT ANCHOR PINBUSHING, RUBBER - FRONT ANCHOR PIN
-
1224-46312 SPRING, FRONT ANCHOR PINSPRING, FRONT ANCHOR PIN
-
1312-46765 WASHER, FRONT ANCHOR PINWASHER, FRONT ANCHOR PIN
-
1411-82671013 NUT, FRONT ANCHOR PINNUT, FRONT ANCHOR PIN
-
1517-45738 PIN, REAR ANCHOR - TRIM CYLINDER TO DRIVE SHAFT HOUSING (7 1)PIN, REAR ANCHOR - TRIM CYLINDER TO DRIVE SHAFT HOUSING (7 1)
-
1612-45737 WASHER, REAR ANCHOR PINWASHER, REAR ANCHOR PIN
-
1723-89574 BUSHING, RUBBER - REAR ANCHOR PINBUSHING, RUBBER - REAR ANCHOR PIN
-
1824-46312 SPRING, REAR ANCHOR PINSPRING, REAR ANCHOR PIN
-
1912-46765 WASHER, REAR ANCHOR PINWASHER, REAR ANCHOR PIN
-
2011-82671013 NUT, REAR ANCHOR PINNUT, REAR ANCHOR PIN
