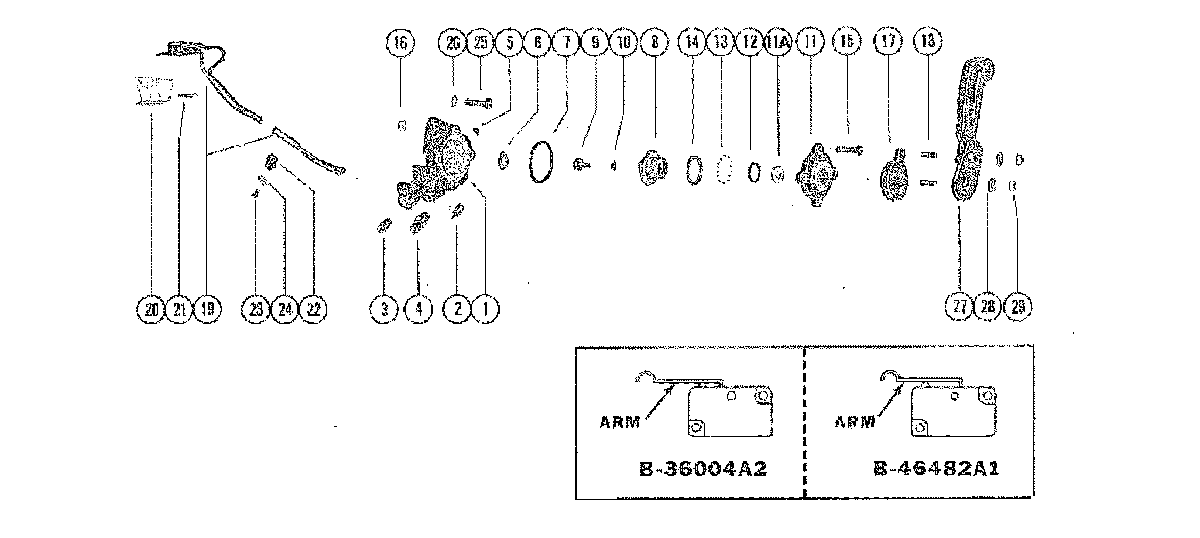

REVERSE LOCK VALVE ASSEMBLY для Mercruiser - 120/140 1970-1977 2791957 THRU 4893634
-
№АртикулНазвание
-
176812T4 REVERSE LOCK VALVE ASSEMBLY
USED WITH REVERSE INTER-LOCK SWITCHREVERSE LOCK VALVE ASSEMBLY
USED WITH REVERSE INTER-LOCK SWITCH -
176812T4 REVERSE LOCK VALVE ASSEMBLY
USED WITHOUT REVERSE INTER-LOCK SWITCHREVERSE LOCK VALVE ASSEMBLY
USED WITHOUT REVERSE INTER-LOCK SWITCH -
245709 FOLLOWER, ACMFOLLOWER, ACM
-
322-48166 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
SERIAL 00000000-03780849ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
SERIAL 00000000-03780849 -
322-45794 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
SERIAL 03780850-09999999ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
SERIAL 03780850-09999999 -
422-48167 CONNECTOR, ELBOWCONNECTOR, ELBOW
-
522-390721 PLUG, PIPE - REVERSE LOCK VALVEPLUG, PIPE - REVERSE LOCK VALVE
-
613-25906 WASHER, WAVE - REVERSE LOCK VALVEWASHER, WAVE - REVERSE LOCK VALVE
-
725-457101 "O" RING, REVERSE LOCK VALVE"O" RING, REVERSE LOCK VALVE
-
845526 CAM, REVERSE LOCK VALVECAM, REVERSE LOCK VALVE
-
910-46736 SCREW, CAM TO CAM LEVER (1/2")SCREW, CAM TO CAM LEVER (1/2")
-
1013-26996 LOCKWASHER, CAM SCREWLOCKWASHER, CAM SCREW
-
1145528A2 COVER ASSEMBLY, REVERSE LOCK VALVECOVER ASSEMBLY, REVERSE LOCK VALVE
-
11A12-59570 WASHER, REVERSE LOCK VALVE COVERWASHER, REVERSE LOCK VALVE COVER
-
1225-45711 "O" RING, VALVE COVER"O" RING, VALVE COVER
-
1330-45712 BALL, VALVE COVERBALL, VALVE COVER
-
1412-45713 WASHER, RETAINING - BALL TO VALVE COVERWASHER, RETAINING - BALL TO VALVE COVER
-
1510-45716 SCREW, COVER TO REVERSE LOCK VALVE (15/16")SCREW, COVER TO REVERSE LOCK VALVE (15/16")
-
1611-20110 NUT, COVER SCREWNUT, COVER SCREW
-
1746732A1 LEVER ASSEMBLY, CAMLEVER ASSEMBLY, CAM
-
1816-45715 STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
-
1946482A5 SWITCH ASSEMBLY, REVERSE INTERLOCK
SERIAL 00000000-03780849SWITCH ASSEMBLY, REVERSE INTERLOCK
SERIAL 00000000-03780849 -
1946482A2 SWITCH ASSEMBLY, REVERSE INTERLOCK
SERIAL 03780850-04530701SWITCH ASSEMBLY, REVERSE INTERLOCK
SERIAL 03780850-04530701 -
2045717 SHIELD, CUT-OUT SWITCH
USED WITH B-48165A5 REVERSE LOCK VALVESHIELD, CUT-OUT SWITCH
USED WITH B-48165A5 REVERSE LOCK VALVE -
2110-36003 SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
USED WITH B-48165A5 REVERSE LOCK VALVESCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
USED WITH B-48165A5 REVERSE LOCK VALVE -
2254-22740 CLIP, CUT-OUT SWITCH LEAD
USED WITH B-48165A5 REVERSE LOCK VALVECLIP, CUT-OUT SWITCH LEAD
USED WITH B-48165A5 REVERSE LOCK VALVE -
2310-35519 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
USED WITH B-48165A5 REVERSE LOCK VALVESCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
USED WITH B-48165A5 REVERSE LOCK VALVE -
2254-648552 CLIP, CUT-OUT SWITCH LEAD
USED WITH B-48165A5 REVERSE LOCK VALVECLIP, CUT-OUT SWITCH LEAD
USED WITH B-48165A5 REVERSE LOCK VALVE -
2310-21643 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
USED WITH B-48165A5 REVERSE LOCK VALVESCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
USED WITH B-48165A5 REVERSE LOCK VALVE -
248M0084613 "D" WASHER, CLIP ATTACHING SCREW
USED WITH B-48165A5 REVERSE LOCK VALVE"D" WASHER, CLIP ATTACHING SCREW
USED WITH B-48165A5 REVERSE LOCK VALVE -
2510-25299 SCREW, REVERSE LOCK VALVE (3/4")SCREW, REVERSE LOCK VALVE (3/4")
-
2613-21804 LOCKWASHER, REVERSE LOCK VALVE SCREWLOCKWASHER, REVERSE LOCK VALVE SCREW
-
2763333A2 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
SERIAL 00000000-03443920LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
SERIAL 00000000-03443920 -
2763333A2 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
SERIAL 03469428-03780849LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
SERIAL 03469428-03780849 -
2766397A1 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
SERIAL 03780850-09999999LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
SERIAL 03780850-09999999 -
2812-21273 WASHER, CAM LEVER STUDWASHER, CAM LEVER STUD
-
2911-20110 NUT, SHIFT CONTROL LEVER TO CAM LEVER STUDNUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
