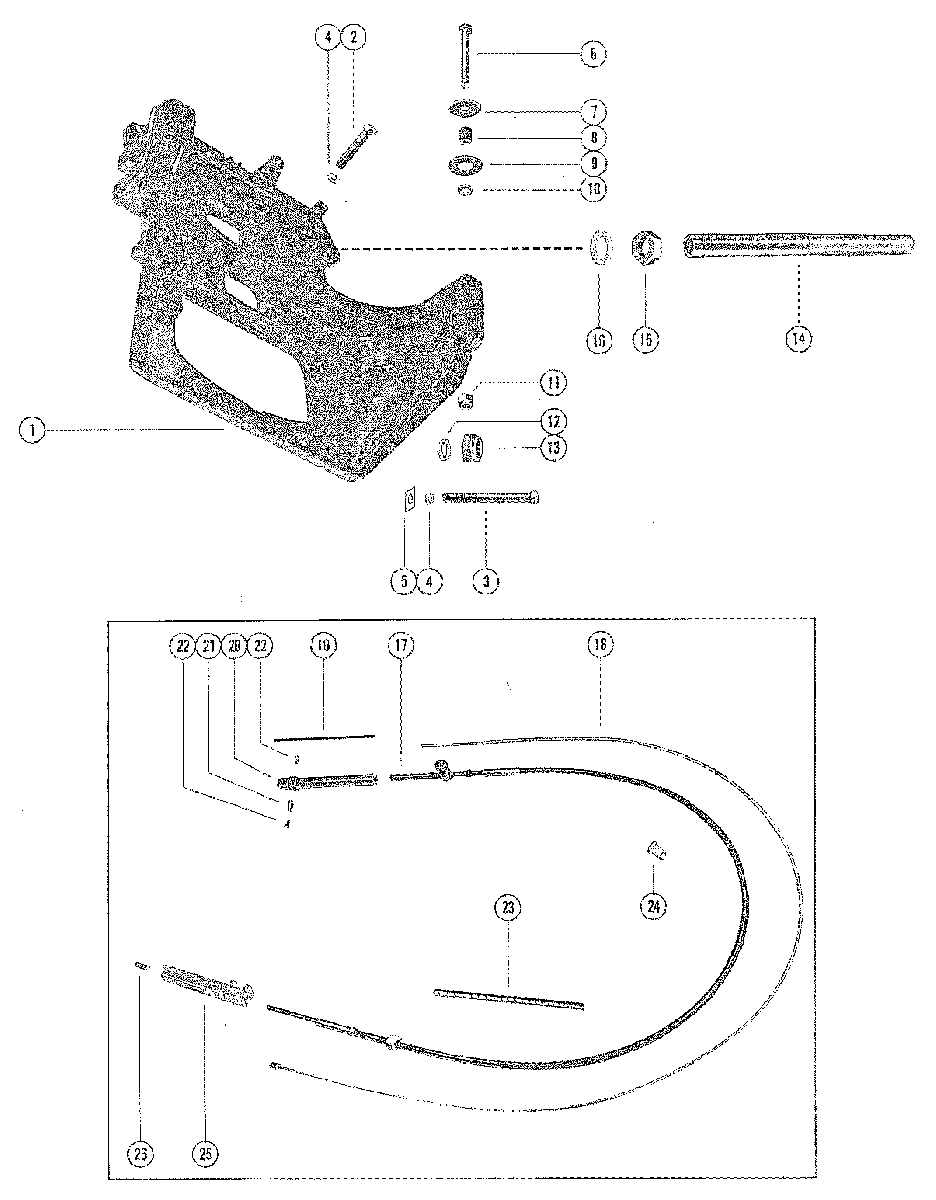

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - 120/140 1970-1977 2791957 THRU 4893634
-
№АртикулНазвание
-
173872A1 PLATE ASSEMBLY,TRANSOM (WITHOUT GIMBAL TRIM SENDER)PLATE ASSEMBLY,TRANSOM (WITHOUT GIMBAL TRIM SENDER)
-
165550A2 PLATE ASSEMBLY,TRANSOM (WITH GIMBAL TRIM SENDER)PLATE ASSEMBLY,TRANSOM (WITH GIMBAL TRIM SENDER)
-
210-37269 SCREW,TRANSOM PLATE TO GIMBAL HOUSING(2")SCREW,TRANSOM PLATE TO GIMBAL HOUSING(2")
-
310-37268 SCREW,TRANSOM PLATE TO GIMBAL HOUSING(4 1/4")SCREW,TRANSOM PLATE TO GIMBAL HOUSING(4 1/4")
-
413-32993 LOCKWASHER,TRANSOM PLATE SCREWLOCKWASHER,TRANSOM PLATE SCREW
-
512-37271 WASHER,SQUARE-TRANSOM PLATE SCREWWASHER,SQUARE-TRANSOM PLATE SCREW
-
610-97934 SCREW,TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING(4 3/4")SCREW,TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING(4 3/4")
-
712-28421 WASHER,TRANSOM PLATE SCREWWASHER,TRANSOM PLATE SCREW
-
823-99299 SPACER,TRANSOM PLATE SCREWSPACER,TRANSOM PLATE SCREW
-
912-32834 WASHER,TRANSOM PLATE SCREWWASHER,TRANSOM PLATE SCREW
-
1013-33734 LOCKWASHER,TRANSOM PLATE SCREWLOCKWASHER,TRANSOM PLATE SCREW
-
1111-82671317 NUT,TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREWNUT,TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
-
1212-21900 WASHER,GIMBAL HOUSING TO TRANSOM PLATE BOLTWASHER,GIMBAL HOUSING TO TRANSOM PLATE BOLT
-
1311-34087 NUT,GIMBAL HOUSING TO TRANSOM PLATE BOLTNUT,GIMBAL HOUSING TO TRANSOM PLATE BOLT
-
1471565A2 TUBE,STEERING CABLE GUIDE (7/8' O.D)TUBE,STEERING CABLE GUIDE (7/8' O.D)
-
1511-8M0041651 NUT,JAM-STEERING CABLE GUIDE TUBENUT,JAM-STEERING CABLE GUIDE TUBE
-
1612-37985 WASHER,STEERING CABLE GUIDE GUIDE TUBEWASHER,STEERING CABLE GUIDE GUIDE TUBE
-
1773723A01 CABLE ASSEMBLY,SHIFT ACUATING
SERIAL 00000000-03780849CABLE ASSEMBLY,SHIFT ACUATING
SERIAL 00000000-03780849 -
1838399A2 CORE WIRE,INNER SHIFT CABLE
SERIAL 00000000-03780849CORE WIRE,INNER SHIFT CABLE
SERIAL 00000000-03780849 -
1932-38377 TUBE,SHIFT ACUATING CABLE
SERIAL 00000000-03780849TUBE,SHIFT ACUATING CABLE
SERIAL 00000000-03780849 -
17865436A02 CABLE ASSEMBLY,SHIFT ACUATING
SERIAL 03780850-04425519CABLE ASSEMBLY,SHIFT ACUATING
SERIAL 03780850-04425519 -
18865436A02 CORE WIRE,INNER SHIFT CABLE
SERIAL 03780850-04425519CORE WIRE,INNER SHIFT CABLE
SERIAL 03780850-04425519 -
1932-38377 TUBE,SHIFT ACUATING CABLE
SERIAL 03780850-04425519TUBE,SHIFT ACUATING CABLE
SERIAL 03780850-04425519 -
17865436A02 CABLE ASSEMBLY,SHIFT ACUATING
SERIAL 04425520-09999999CABLE ASSEMBLY,SHIFT ACUATING
SERIAL 04425520-09999999 -
18865436A02 CORE WIRE,INNER SHIFT CABLE
SERIAL 04425520-09999999CORE WIRE,INNER SHIFT CABLE
SERIAL 04425520-09999999 -
1932-38377 TUBE,SHIFT ACUATING CABLE
SERIAL 04425520-09999999TUBE,SHIFT ACUATING CABLE
SERIAL 04425520-09999999 -
2043433 GUIDE,SHIFT ACUATING CABLE ENDGUIDE,SHIFT ACUATING CABLE END
-
2120007 ANCHOR,SHIFT ACUATING CABLE END GUIDEANCHOR,SHIFT ACUATING CABLE END GUIDE
-
2210-20518 SCREW,SET-ANCHOR TO ACTIATING CABLE END GUUIDE (1/4")SCREW,SET-ANCHOR TO ACTIATING CABLE END GUUIDE (1/4")
-
2338473 WRAPPING,SHIFT ACTUATING CABLEWRAPPING,SHIFT ACTUATING CABLE
-
2414705 TUBE,NYLON-SHIFT ACTUATING CABLE GUIDETUBE,NYLON-SHIFT ACTUATING CABLE GUIDE
-
25865436A02 SLIDE,SHIFT ACTUATING CABLESLIDE,SHIFT ACTUATING CABLE
-
2610-31700 SCREW,SET-SHIFT ACTUATING CABLE TO SLIDE (3/4")SCREW,SET-SHIFT ACTUATING CABLE TO SLIDE (3/4")
