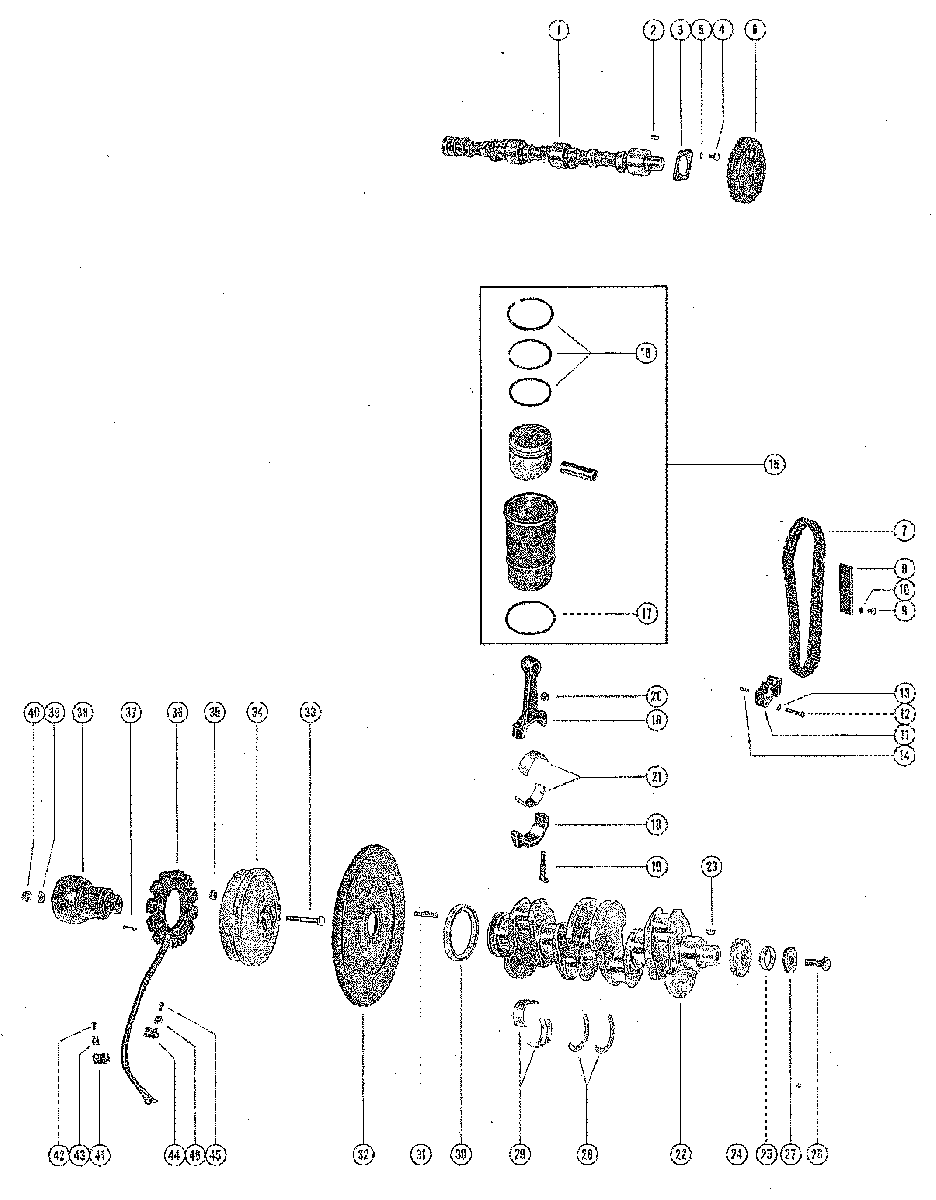

CAMSHAFT, CRANKSHAFT, PISTONS, FLYWHEEL AND STATOR для Mercruiser - 80 (Sterndrive) 1966-1969 2063741 THRU 2898029
-
№АртикулНазвание
-
1435-4410 CAMSHAFTCAMSHAFT
-
228-37047 KEY, CAMSHAFTKEY, CAMSHAFT
-
346596 PLATE, THRUST-CAMSHAFTPLATE, THRUST-CAMSHAFT
-
410-46532 SCREW, THRUST PLATE TO CYLINDER BLOCK (12MM)SCREW, THRUST PLATE TO CYLINDER BLOCK (12MM)
-
512-37175 WASHER, THRUST PLATE SCREWWASHER, THRUST PLATE SCREW
-
643-46576 GEAR, TIMING-CAMSHAFTGEAR, TIMING-CAMSHAFT
-
746573 CHAIN, TIMING-CAMSHAFT AND CRANKSHAFT TIMING GEARSCHAIN, TIMING-CAMSHAFT AND CRANKSHAFT TIMING GEARS
-
846574 PLATE, GUIDE-TIMING CHAIN
SERIAL 00000000-02322195PLATE, GUIDE-TIMING CHAIN
SERIAL 00000000-02322195 -
910-46575 SCREW, GUIDE PLATE TO CYLINDER BLOCK (10MM)
SERIAL 00000000-02322195SCREW, GUIDE PLATE TO CYLINDER BLOCK (10MM)
SERIAL 00000000-02322195 -
1012-37175 WASHER, GUIDE PLATE SCREW
SERIAL 00000000-02322195WASHER, GUIDE PLATE SCREW
SERIAL 00000000-02322195 -
848097 PALTE, GUIDE-TIMING CHAIN
PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999PALTE, GUIDE-TIMING CHAIN
PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999 -
910-48096 SCREW, GUIDE PLATE TO CYLINDER BLOCK (10MM)
PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999SCREW, GUIDE PLATE TO CYLINDER BLOCK (10MM)
PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999 -
1012-46616 WASHER, GUIDE PLATE SCREW
PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999WASHER, GUIDE PLATE SCREW
PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999 -
1146598 TENSION BLOCK ASSEMBLY, TIMING CHAINTENSION BLOCK ASSEMBLY, TIMING CHAIN
-
1210-46599 SCREW, TENSHIONER BLOCK TO CYLINDER BLOCK (35MM)SCREW, TENSHIONER BLOCK TO CYLINDER BLOCK (35MM)
-
1313-46600 LOCKWASHER, TENSIONER BLOCK SCREWLOCKWASHER, TENSIONER BLOCK SCREW
-
1446597 FILTER, TENSIONER BLOCKFILTER, TENSIONER BLOCK
-
15740-3004 PISTON AND PISTON LINER ASSEMBLYPISTON AND PISTON LINER ASSEMBLY
-
1639-46548A1 PISTON RING ASSEMBLYPISTON RING ASSEMBLY
-
1727-46525A1 GASKET ASSEMBLY, CYLINDER SLEEVEGASKET ASSEMBLY, CYLINDER SLEEVE
-
18616-4348 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1910-46546 SCREW, CONNECTING ROD CAP (55MM)SCREW, CONNECTING ROD CAP (55MM)
-
2011-46547 NUT, CONNECTING ROD CAP SCREW,NUT, CONNECTING ROD CAP SCREW,
-
2123-46551 BEARING SET (4 PAIRS), CONNECTING ROD (48MM)-STANDARDBEARING SET (4 PAIRS), CONNECTING ROD (48MM)-STANDARD
-
2123-46693 BEARING SET (4 PAIRS), CONNECTING ROD (47.75MM)BEARING SET (4 PAIRS), CONNECTING ROD (47.75MM)
-
2123-46694 BEARING SET (4 PAIRS), CONNECTING ROD (47.50MM)BEARING SET (4 PAIRS), CONNECTING ROD (47.50MM)
-
22434-3006 CRANKSHAFT
SERIAL 00000000-02322195CRANKSHAFT
SERIAL 00000000-02322195 -
22434-3700 CRANKSHAFT,
SERIAL 02322196-09999999CRANKSHAFT,
SERIAL 02322196-09999999 -
2328-37116 KEY, CRANKSHAFTKEY, CRANKSHAFT
-
2443-46545 GEAR, TIMING-CRANKSHAFTGEAR, TIMING-CRANKSHAFT
-
2523-46544 SLEEVE, CRANKSHAFT TIMING GEARSLEEVE, CRANKSHAFT TIMING GEAR
-
2610-46542 SCREW, TIMING GEAR TO CRANKSHAFT (30MM)SCREW, TIMING GEAR TO CRANKSHAFT (30MM)
-
2712-46543 WASHER, THRUST-TIMING GEAR SCREWWASHER, THRUST-TIMING GEAR SCREW
-
2815-46554 SHIM, SPACER-MAIN BEARING (2.95MM)SHIM, SPACER-MAIN BEARING (2.95MM)
-
2815-46553 SHIM, SPACER-MAIN BEARING (2.90MM)SHIM, SPACER-MAIN BEARING (2.90MM)
-
2815-46552 SHIM, SPACER-MAIN BEARING (2.80MM)SHIM, SPACER-MAIN BEARING (2.80MM)
-
2923-46555 BEARING SET (5 PAIRS), CRANKSHAFT (54.80MM)-STANDARDBEARING SET (5 PAIRS), CRANKSHAFT (54.80MM)-STANDARD
-
2923-46695 BEARING SET (5 PAIRS), CRANKSHAFT (54.55MM)BEARING SET (5 PAIRS), CRANKSHAFT (54.55MM)
-
2923-46696 BEARING SET (5 PAIRS), CRANKSHAFT (54.30MM)BEARING SET (5 PAIRS), CRANKSHAFT (54.30MM)
-
3026-46541 SEAL, REAR MAIN-CRANKSHAFTSEAL, REAR MAIN-CRANKSHAFT
-
3116-45636 STUD, FLYWHEEL TO CRANKSHAFT
SERIAL 00000000-02322195STUD, FLYWHEEL TO CRANKSHAFT
SERIAL 00000000-02322195 -
32228-3005 FLYWHEEL ASSEMBLY, CRANKSHAFT
SERIAL 00000000-02322195FLYWHEEL ASSEMBLY, CRANKSHAFT
SERIAL 00000000-02322195 -
3310-29096 SCREW, ENGINE COUPLING TO FLYWHEEL (2 1/2")
SERIAL 00000000-02322195SCREW, ENGINE COUPLING TO FLYWHEEL (2 1/2")
SERIAL 00000000-02322195 -
34231-4037A1 FLYWHEEL ASSEMBLY, ALTERNATOR
SERIAL 00000000-02322195FLYWHEEL ASSEMBLY, ALTERNATOR
SERIAL 00000000-02322195 -
3511-38270 NUT, FLYWHEEL TO CRANKSHAFT STUD
SERIAL 00000000-02322195NUT, FLYWHEEL TO CRANKSHAFT STUD
SERIAL 00000000-02322195 -
3116-45636 STUD, FLYWHEEL TO CRANKSHAFT
SERIAL 02322196-09999999STUD, FLYWHEEL TO CRANKSHAFT
SERIAL 02322196-09999999 -
32228-3699 FLYWHEEL ASSEMBLY, CRANKSHAFT
SERIAL 02322196-09999999FLYWHEEL ASSEMBLY, CRANKSHAFT
SERIAL 02322196-09999999 -
3310-29096 SCREW, ENGINE COUPLING TO FLYWHEEL (2 1/2")
SERIAL 02322196-09999999SCREW, ENGINE COUPLING TO FLYWHEEL (2 1/2")
SERIAL 02322196-09999999 -
34231-4037A1 FLYWHEEL ASSEMBLY, ALTERNATOR
SERIAL 02322196-09999999FLYWHEEL ASSEMBLY, ALTERNATOR
SERIAL 02322196-09999999 -
3511-38270 NUT, FLYWHEEL TO CRANKSHAFT STUD
SERIAL 02322196-09999999NUT, FLYWHEEL TO CRANKSHAFT STUD
SERIAL 02322196-09999999 -
36398-2932 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
3710-68918 SCREW, STATOR TO FLYWHEEL HOUSING (1")SCREW, STATOR TO FLYWHEEL HOUSING (1")
-
3845621A1 ENGINE COUPLING ASSEMBLYENGINE COUPLING ASSEMBLY
-
3912-46132 WASHER, ENGIEN COUPLING SCREWWASHER, ENGIEN COUPLING SCREW
-
4011-23161 NUT, ENGINE COUPLING SCREWNUT, ENGINE COUPLING SCREW
-
4154-22690 CLIP, STATOR AND WIRING HARNESS LEADS TO FLYWHEEL HOUSING (1)CLIP, STATOR AND WIRING HARNESS LEADS TO FLYWHEEL HOUSING (1)
-
4210-69022 SCREW, STATOR AND WIRING HARNESS CLIP ATTACHING (1/2")SCREW, STATOR AND WIRING HARNESS CLIP ATTACHING (1/2")
-
438M0084613 "D" WASHER, STATOR AND WIRING HARNESS CLIP SCREW"D" WASHER, STATOR AND WIRING HARNESS CLIP SCREW
-
4454-45806 CLIP, STATOR LEADS TO FLYWHEEL HOUSINGCLIP, STATOR LEADS TO FLYWHEEL HOUSING
-
4510-31903 SCREW, STATOR LEADS CLIP ATTACHING (3/8")SCREW, STATOR LEADS CLIP ATTACHING (3/8")
-
468M0084613 "D" WASHER, STATOR LEADS CLIP SCREW"D" WASHER, STATOR LEADS CLIP SCREW
