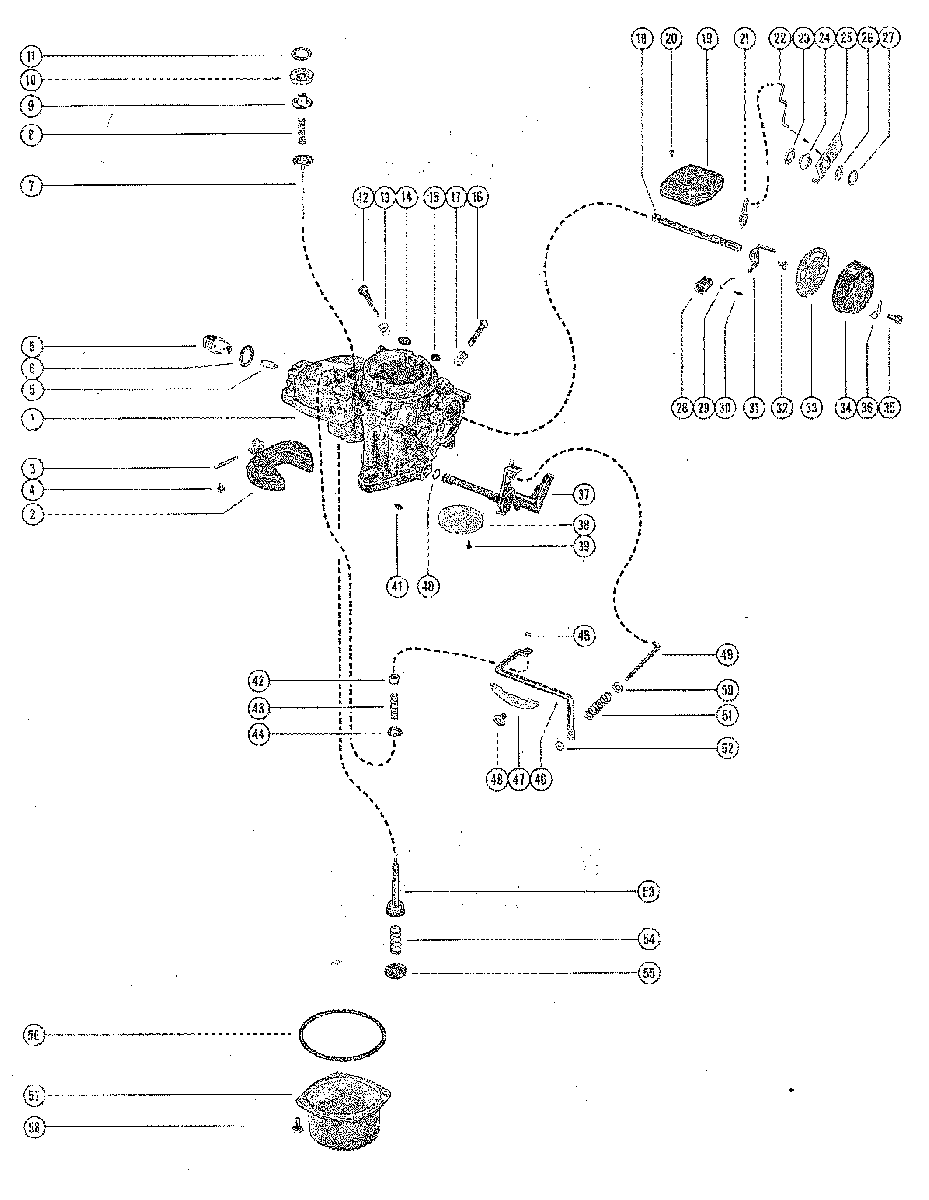

CARBURETOR ASSEMBLY для Mercruiser - 80 (Sterndrive) 1966-1969 2063741 THRU 2898029
-
№АртикулНазвание
-
11346-2770 CARBURETOR ASSEMBLY COMPLETECARBURETOR ASSEMBLY COMPLETE
-
21398-3096 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
31398-3098 >PIN, FLOAT LEVER>PIN, FLOAT LEVER
Производитель Mercury-Mercruiser -
41398-3115 SCREW, FLOAT LEVER PIN TO CARBURETORSCREW, FLOAT LEVER PIN TO CARBURETOR
-
51398-3099 *INLET NEEDLE AND SEAT ASSEMBLY*INLET NEEDLE AND SEAT ASSEMBLY
Производитель Mercury-Mercruiser -
6N.S.S. *GASKET, INLET NEEDLE AND SEAT*GASKET, INLET NEEDLE AND SEAT
-
7N.S.S. *DIAPHRAGM, STEP-UP ROD*DIAPHRAGM, STEP-UP ROD
-
8N.S.S. *SPRING, STEP-UP ROD DIAPHRAGM - UPPER*SPRING, STEP-UP ROD DIAPHRAGM - UPPER
-
9N.S.S. *COVER, STEP-UP ROD DIAPHRAGM*COVER, STEP-UP ROD DIAPHRAGM
-
10N.S.S. *RETAINER, STEP-UP ROD DIAPHRAGM*RETAINER, STEP-UP ROD DIAPHRAGM
-
11N.S.S. *WASHER, RETAINER- STEP-UP ROD DIAPHRAGM COVER*WASHER, RETAINER- STEP-UP ROD DIAPHRAGM COVER
-
121398-3100 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
131398-3105 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
141398-3133 PLUG, IDLE PORT-CARBURETORPLUG, IDLE PORT-CARBURETOR
-
151398-3134 WELCH PLUG, FUEL WELL- CARBURETORWELCH PLUG, FUEL WELL- CARBURETOR
-
161398-3117 SCREW, THROTTLE ADJUSTINGSCREW, THROTTLE ADJUSTING
-
171398-3104 SPRING, THROTTLE ADJUSTING SCREWSPRING, THROTTLE ADJUSTING SCREW
-
181398-3093 SHAFT,CHOKESHAFT,CHOKE
-
191398-3092 VALVE, CHOKE-CHOKE SHAFTVALVE, CHOKE-CHOKE SHAFT
-
201398-3119 SCREW, CHOKE VALVE TO CHOKE SHAFTSCREW, CHOKE VALVE TO CHOKE SHAFT
-
211398-3094 LEVER, CHOKE- CHOKE SHAFTLEVER, CHOKE- CHOKE SHAFT
-
221398-3123 ROD, FAST IDLE CONNECTORROD, FAST IDLE CONNECTOR
-
231398-3127 WASHER, FAST IDLE CALM COLLARWASHER, FAST IDLE CALM COLLAR
-
241398-3102 COLLAR, FAST IDLE CALMCOLLAR, FAST IDLE CALM
-
251398-3132 CAM, FAST IDLECAM, FAST IDLE
-
261398-3125 WASHER, FAST IDLE CAMWASHER, FAST IDLE CAM
-
271398-3114 RETAINER, FAST IDLE CAM TO CARBURETORRETAINER, FAST IDLE CAM TO CARBURETOR
-
281398-3129 PISTON, CHOKEPISTON, CHOKE
-
291398-3124 LINK, CHOKE PISTON TO LEVERLINK, CHOKE PISTON TO LEVER
-
301398-3128 PIN, LINK TO CHOKE PISTONPIN, LINK TO CHOKE PISTON
-
311398-3095 LEVER, CHOKE PISTONLEVER, CHOKE PISTON
-
321398-3113 SCREW, CHOKE PISTON LEVER TO CHOKE SHAFTSCREW, CHOKE PISTON LEVER TO CHOKE SHAFT
-
33N.S.S. *GASKET, COIL HOUSING*GASKET, COIL HOUSING
-
341398-3131 COIL HOUSING ASSEMBLYCOIL HOUSING ASSEMBLY
-
351398-3112 SCREW, COIL HOUSING TO CARBURETORSCREW, COIL HOUSING TO CARBURETOR
-
361398-3108 RETAINER, COIL HOUSING SCREWRETAINER, COIL HOUSING SCREW
-
371398-3091 SHAFT AND LOWER ASSEMBLY, THROTTLESHAFT AND LOWER ASSEMBLY, THROTTLE
-
381398-3090 VALVE, THROTTLE- THROTTLE SHAFT AND LEVERVALVE, THROTTLE- THROTTLE SHAFT AND LEVER
-
391398-3119 SCREW, THROTTLE VALVE TO THROTTLE SHAFT AND LEVERSCREW, THROTTLE VALVE TO THROTTLE SHAFT AND LEVER
-
401398-3130 "O" RING, THROTTLE SHAFT AND LEVER"O" RING, THROTTLE SHAFT AND LEVER
-
411398-3101 WELCH PLUG, CHOKE PISTON-CARBURETORWELCH PLUG, CHOKE PISTON-CARBURETOR
-
421398-3121 BUSHING, PUMPBUSHING, PUMP
-
43N.S.S. *SPRING, PUMP- UPPER*SPRING, PUMP- UPPER
-
441398-3126 WASHER, PUMP (UPPER)WASHER, PUMP (UPPER)
-
451398-3109 *RETAINER, PUMP TO PUMP ARM*RETAINER, PUMP TO PUMP ARM
Производитель Mercury-Mercruiser -
461398-3103 ARM, PUMPARM, PUMP
-
471398-3110 RETAINER, PUMP ARMRETAINER, PUMP ARM
-
481398-3116 SCREW, PUMP ARM RETAINER TO CARBURETORSCREW, PUMP ARM RETAINER TO CARBURETOR
-
491398-3122 LINK, PUMP ARM CONNECTORLINK, PUMP ARM CONNECTOR
-
501398-3111 RETAINER, PUMP ARM CONNECTOR LINKRETAINER, PUMP ARM CONNECTOR LINK
-
511398-3107 SPRING, PUMP ARM CONNECTOR LINKSPRING, PUMP ARM CONNECTOR LINK
-
521398-3120 NUT, PUMP ARM CONNECTOR LINKNUT, PUMP ARM CONNECTOR LINK
-
53N.S.S. *PUMP ASSEMBLY, CARBURETOR*PUMP ASSEMBLY, CARBURETOR
-
541398-3106 SRPING, PUMP- LOWERSRPING, PUMP- LOWER
-
55N.S.S. *RETAINER, PUMP-LOWER*RETAINER, PUMP-LOWER
-
56N.S.S. *GASKET, FLOAT BOWL*GASKET, FLOAT BOWL
-
571398-3097 BOWL, FLOAT- CARBURETORBOWL, FLOAT- CARBURETOR
-
581398-3118 SCREW, FLOAT BOWL TO CARBURETORSCREW, FLOAT BOWL TO CARBURETOR
-
581398-3089 REPAIR PARTS KIT, CARBURETORREPAIR PARTS KIT, CARBURETOR
