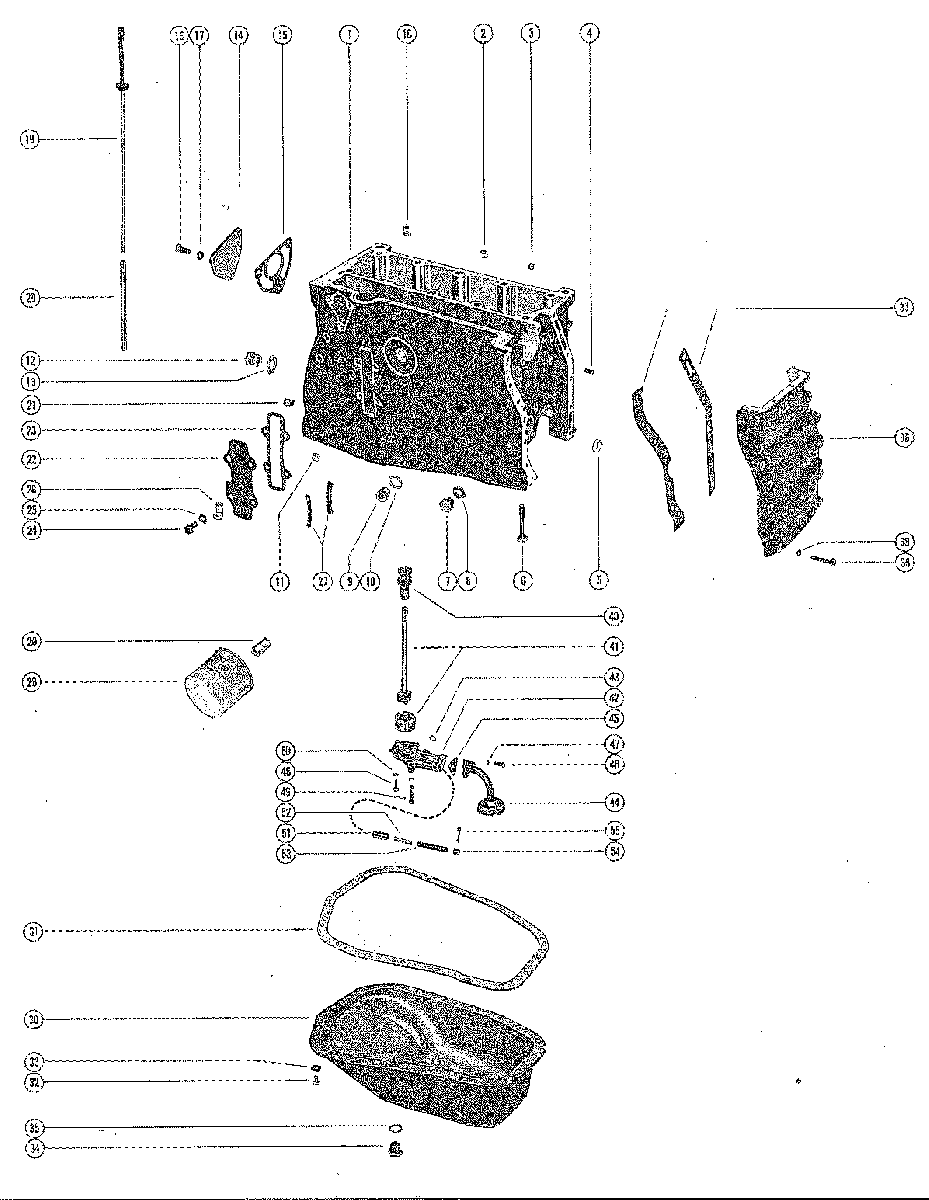

CYLINDER BLOCK, OIL PAN AND OIL PUMP для Mercruiser - 80 (Sterndrive) 1966-1969 2063741 THRU 2898029
-
№АртикулНазвание
-
1845-3304A1 CYLINDER BLOCK ASSEMBLY (SERIAL #2322195 AND BELOW)
SERIAL 00000000-02322195CYLINDER BLOCK ASSEMBLY (SERIAL #2322195 AND BELOW)
SERIAL 00000000-02322195 -
1845-3304A1 CYLINDER BLKOCK ASSEMBLY (SERIAL # 2322196 AND UP)
SERIAL 02322196-09999999CYLINDER BLKOCK ASSEMBLY (SERIAL # 2322196 AND UP)
SERIAL 02322196-09999999 -
219-46516 PLUG, EXPANSION- CYLINDER BLOCK (TOP)PLUG, EXPANSION- CYLINDER BLOCK (TOP)
-
319-46515 PLUG, EXPANSION- CYLINDER BLOCK (TOP)PLUG, EXPANSION- CYLINDER BLOCK (TOP)
-
410-46502 SCREW, PLUG- CYLINDER BLOCKSCREW, PLUG- CYLINDER BLOCK
-
519-46503 PLUG, EXPANSION- CYLINDER BLOCK (FRONT)PLUG, EXPANSION- CYLINDER BLOCK (FRONT)
-
610-46504 BOLT, ,MAIN BEARING CAP TO CYLINDER BLOCK (67.5MM)BOLT, ,MAIN BEARING CAP TO CYLINDER BLOCK (67.5MM)
-
710-46506 PLUG, CYLINDER BLOCKPLUG, CYLINDER BLOCK
-
812-46505 WASHER, CYLINDER BLOCK PLUGWASHER, CYLINDER BLOCK PLUG
-
919-46508 PLUG, CYLINDER BLOCKPLUG, CYLINDER BLOCK
-
1012-46507 WASHER, CYLINDER BLOCK PLUGWASHER, CYLINDER BLOCK PLUG
-
1119-46509 PLUGM EXPANSION- CYLINDER BLOCK (SIDE)PLUGM EXPANSION- CYLINDER BLOCK (SIDE)
-
1219-46512 PLUG, CYLINDER BLOCK- REARPLUG, CYLINDER BLOCK- REAR
-
1312-46513 WASHER, CYLINDER BLOCK REAR PLUGWASHER, CYLINDER BLOCK REAR PLUG
-
1446537 COVER, CAMSHAFT HOLE- CYLINDER BLOCKCOVER, CAMSHAFT HOLE- CYLINDER BLOCK
-
1527-46524 GASKET, CAMSHAFT HOLE COVERGASKET, CAMSHAFT HOLE COVER
-
1610-46517 SCREW, CAMSHAFT HOLE COVER TO CYLINDER BLOCK (20MM)SCREW, CAMSHAFT HOLE COVER TO CYLINDER BLOCK (20MM)
-
1713-37141 LOCKWASHER,CAMSHAFT HOLE COVER SCREWLOCKWASHER,CAMSHAFT HOLE COVER SCREW
-
1823-37127 BUSHING, OIL PUMP SHAFT- CYLINDER BLOCKBUSHING, OIL PUMP SHAFT- CYLINDER BLOCK
-
1946500 GAUGE, OIL LEVEL (DIP STICK)GAUGE, OIL LEVEL (DIP STICK)
-
2032-46501 TUBE, OIL LEVEL GAUGE- CYLINDER BLOCKTUBE, OIL LEVEL GAUGE- CYLINDER BLOCK
-
2123-46689 SPACER, ALIGNMENT- CYLINDER BLOCK TO FLYWHEEL HOUSINGSPACER, ALIGNMENT- CYLINDER BLOCK TO FLYWHEEL HOUSING
-
2246511 COVER, INSPECTION- CYLINDER BLOCKCOVER, INSPECTION- CYLINDER BLOCK
-
2327-46510 GASKET, INSPECTION COVERGASKET, INSPECTION COVER
-
2410-46517 SCREW, INSPECTION COVER TO CYLONDER BLOCK (20MM)SCREW, INSPECTION COVER TO CYLONDER BLOCK (20MM)
-
2513-37141 EWASHER, INSPECTION COVER SCREWEWASHER, INSPECTION COVER SCREW
-
2654-38537 CLIP, INSPECTION COVER SCREW- WIRING HARNESS LEADSCLIP, INSPECTION COVER SCREW- WIRING HARNESS LEADS
-
2723-46527A1 SPACER ASSEMNBLY, MAIN BEARING CAPSPACER ASSEMNBLY, MAIN BEARING CAP
-
28803470Q OILO FILTEROILO FILTER
-
2937125 ADAPTOR, OIL FILTER TO CYLINDER BLOCKADAPTOR, OIL FILTER TO CYLINDER BLOCK
-
3046529 OIL PANOIL PAN
-
3127-46530 GASKET, OIL PANGASKET, OIL PAN
-
3210-46532 SCREW, OIL PAN TO CYLINDER BLOCK (15MM)SCREW, OIL PAN TO CYLINDER BLOCK (15MM)
-
3210-46533 SCREW, OIL PAN TO CYLINDER BLOCK (12MM)SCREW, OIL PAN TO CYLINDER BLOCK (12MM)
-
3312-46531 WASHER, OIL PAN SCREWWASHER, OIL PAN SCREW
-
3422-46534 PLUG, DRAIN-OIL PANPLUG, DRAIN-OIL PAN
-
3527-37105 GASKET, OIL PAN DRAIN PLUGGASKET, OIL PAN DRAIN PLUG
-
3658520 COVER, TIMINGCOVER, TIMING
-
3727-46536 GASKET, TIMING COVERGASKET, TIMING COVER
-
3810-46538 SCREW, TIMING COVER TO CYLINDER BLOCK (40MM)SCREW, TIMING COVER TO CYLINDER BLOCK (40MM)
-
3810-46539 SCREW, TIMING COVER TO CYLINDER BLOCK (30MM)SCREW, TIMING COVER TO CYLINDER BLOCK (30MM)
-
3912-46540 WASHER, TIMING COVER SCREWWASHER, TIMING COVER SCREW
-
40435-4410 SHAFT, PINION-OIL PUMP SHAFT TO DISTRIBUTORSHAFT, PINION-OIL PUMP SHAFT TO DISTRIBUTOR
-
4147166 SHAFT, OIL PUMMP BVODY TO PINION SHAFTSHAFT, OIL PUMMP BVODY TO PINION SHAFT
-
4258562 BODY, OIL PUMPBODY, OIL PUMP
-
4319-46606 PLUG, OIL PUMP BODYPLUG, OIL PUMP BODY
-
4446608 TUBE, PICK-UPTUBE, PICK-UP
-
4527-58565 GASKET, PICK-UP TUBEGASKET, PICK-UP TUBE
-
4610-46609 SCREW, PICK UP TUBE TO OIL PUMP BODY (20MM)SCREW, PICK UP TUBE TO OIL PUMP BODY (20MM)
-
4712-46610 WASHER, PICK-UP TUBE SCREWWASHER, PICK-UP TUBE SCREW
-
4810-46617 SCREW, OIL PUMP BODY TO CYLINDER BLOCK (25MM)SCREW, OIL PUMP BODY TO CYLINDER BLOCK (25MM)
-
4910-46615 SCREW, OIL PUMP BODY TO CYLINDER BLOCK (45MM)SCREW, OIL PUMP BODY TO CYLINDER BLOCK (45MM)
-
5012-46616 WASHER, OIL PUMP BODY SCREWWASHER, OIL PUMP BODY SCREW
-
5123-46614 SLEEVE, OIL PRESSURE RELEASE VALVESLEEVE, OIL PRESSURE RELEASE VALVE
-
5217-46613 PIN, GUIDE-OIL PRESSURE RELEASE VALVEPIN, GUIDE-OIL PRESSURE RELEASE VALVE
-
5324-46612 SPRING, TENSION-OIL PRESSURE RELEASE VALVESPRING, TENSION-OIL PRESSURE RELEASE VALVE
-
5446611 CAP, OIL PRESSURE VALVE SPRINGCAP, OIL PRESSURE VALVE SPRING
-
5518-46605 COTTER PIN, OIL PRESSURE RELEASE VALVE CAPCOTTER PIN, OIL PRESSURE RELEASE VALVE CAP
