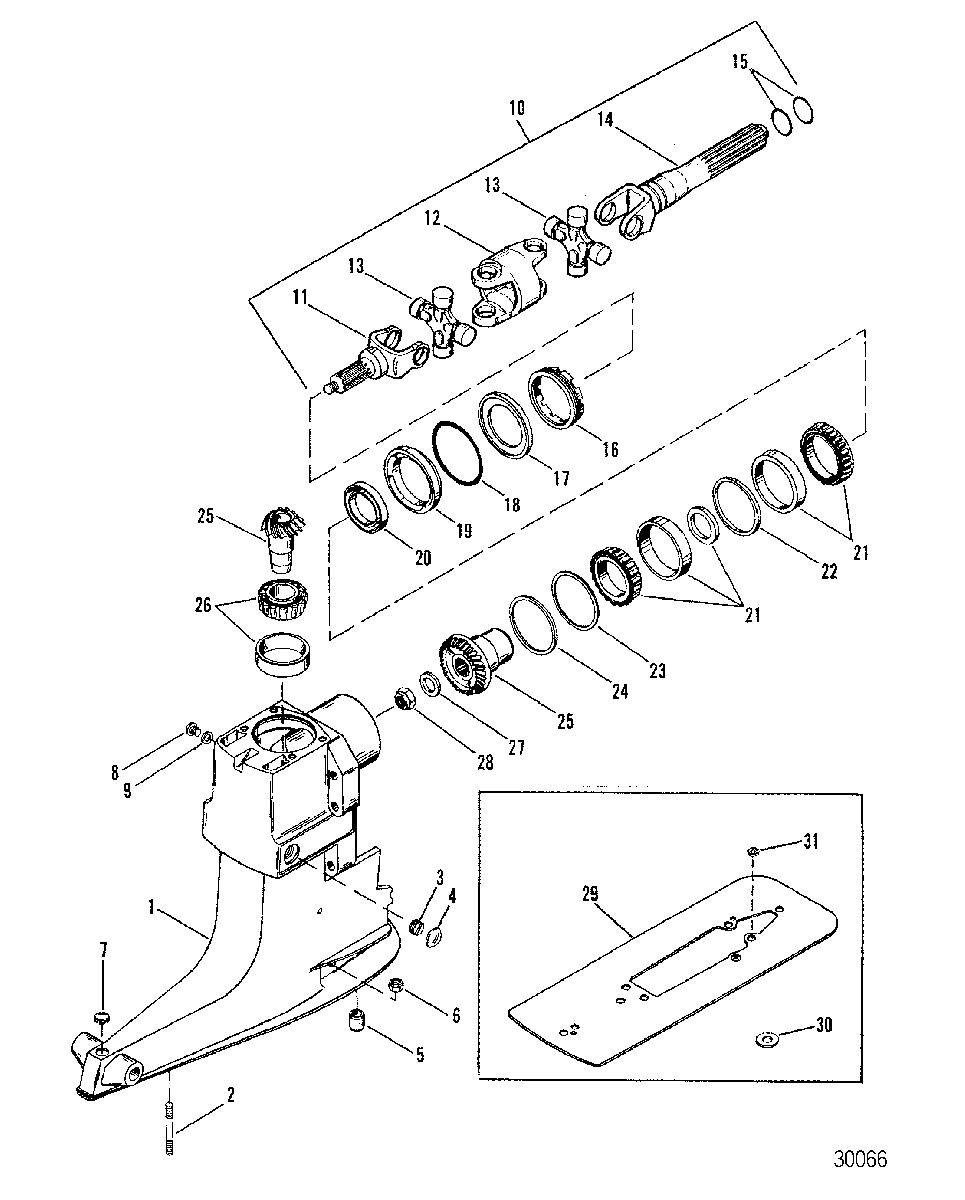

DRIVESHAFT HOUSING AND DRIVE GEARS для Mercruiser - R/MR/ALPHA ONE (Transom Assembly) 1983-1990 6216687 THRU 0D469858
-
№АртикулНазвание
-
11547-9412A18 HOUSING ASSEMBLY, Driveshaft (BLACK)HOUSING ASSEMBLY, Driveshaft (BLACK)
-
216-56295 STUD, (.437 x 2.69)STUD, (.437 x 2.69)
-
322-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
419-32652 WELCH PLUG (7/8 inch O.D.)WELCH PLUG (7/8 inch O.D.)
-
419-42682 WELCH PLUG (1-1/4 inch O.D.)WELCH PLUG (1-1/4 inch O.D.)
-
523-32632 BUSHINGBUSHING
-
611-859116 NUT, (.437-20)NUT, (.437-20)
-
719-47579 PLUG (1/2 inch DIA. HOLE) (BLACK)PLUG (1/2 inch DIA. HOLE) (BLACK)
-
747591 ROD (1/2 inch DIA. HOLE) (OYSTER)ROD (1/2 inch DIA. HOLE) (OYSTER)
-
810-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
912-191833 WASHER
(Component of Gear Repair Kits No. 1 - 5)WASHER
(Component of Gear Repair Kits No. 1 - 5) -
10814819A2 UNIVERSAL JOINTUNIVERSAL JOINT
-
1146020T02 YOKE, GEAR ENDYOKE, GEAR END
-
12393831 SOCKET, CenterSOCKET, Center
-
1375832T1 CROSS AND BEARING
SN# B-418818 & BelowCROSS AND BEARING
SN# B-418818 & Below -
1375832T1 CROSS AND BEARING
SN# B-418819 & UpCROSS AND BEARING
SN# B-418819 & Up -
1459830A7 YOKE ASSEMBLY, COUPLING ENDYOKE ASSEMBLY, COUPLING END
-
1525-25439 O-RING, (.862 x .103)
(Component of Gear Repair Kits No. 1 - 5)O-RING, (.862 x .103)
(Component of Gear Repair Kits No. 1 - 5) -
168168112 RETAINERRETAINER
-
1735983 RINGRING
-
1825-70937 O-RING
(Component of Gear Repair Kits No. 1 - 5)O-RING
(Component of Gear Repair Kits No. 1 - 5) -
1966081A2 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
2026-823894 SEAL, OilSEAL, Oil
-
2131-35988A12 BEARING KIT, Roller
(Component of Gear Repair Kits No. 1-2-3 & 5)BEARING KIT, Roller
(Component of Gear Repair Kits No. 1-2-3 & 5) -
2223-35985 SPACER
(Component of Gear Repair Kits No. 1-2-3 & 5)SPACER
(Component of Gear Repair Kits No. 1-2-3 & 5) -
2131-35988A3 BEARING ASSEMBLY, Tapered Roller (1.32 RATIO ONLY)
(Component of Gear Repair Kit No. 4)BEARING ASSEMBLY, Tapered Roller (1.32 RATIO ONLY)
(Component of Gear Repair Kit No. 4) -
2223-66824 SPACER (1.32 RATIO ONLY)
(Component of Gear Repair Kit No. 4)SPACER (1.32 RATIO ONLY)
(Component of Gear Repair Kit No. 4) -
2131-35988A9 BEARING ASSEMBLY
(1.5O HEAVY DUTY RATIO ONLY)BEARING ASSEMBLY
(1.5O HEAVY DUTY RATIO ONLY) -
2223-66824 SPACER
(1.5O HEAVY DUTY RATIO ONLY)SPACER
(1.5O HEAVY DUTY RATIO ONLY) -
2315-35980A1 SHIM SET
(Component of Gear Repair Kits No. 1-5)SHIM SET
(Component of Gear Repair Kits No. 1-5) -
2423-8M0124132 SHIM, SpacerSHIM, Spacer
-
2543-55778A3 GEAR KIT (1.98 RATIO) (20-24 GEAR RATIO)
(Component of Gear Repair Kit No. 1)GEAR KIT (1.98 RATIO) (20-24 GEAR RATIO)
(Component of Gear Repair Kit No. 1) -
2543-45814A5 GEAR KIT (1.65 RATIO) (24-24 GEAR RATIO)
(Component of Gear Repair Kit No. 2)GEAR KIT (1.65 RATIO) (24-24 GEAR RATIO)
(Component of Gear Repair Kit No. 2) -
2543-75325A3 GEAR KIT (1.84 RATIO) (17-19 GEAR RATIO)
(Component of Gear Repair Kit No. 3)GEAR KIT (1.84 RATIO) (17-19 GEAR RATIO)
(Component of Gear Repair Kit No. 3) -
2543-18411A2 GEAR KIT (1.50 RATIO) (20-22 GEAR RATIO)
(Component of Gear Repair Kit No. 5)GEAR KIT (1.50 RATIO) (20-22 GEAR RATIO)
(Component of Gear Repair Kit No. 5) -
2543-8M0080756 GEAR SET (1.32 RATIO) (16-20 GEAR RATIO)
(Component of Gear Repair Kit No. 4)GEAR SET (1.32 RATIO) (16-20 GEAR RATIO)
(Component of Gear Repair Kit No. 4) -
2543-18411A4 GEAR KIT, With Bearings And Shims
(1.50 RATIO) (20-22 RATIO) (REPLACES HEAVY DUTY KIT)GEAR KIT, With Bearings And Shims
(1.50 RATIO) (20-22 RATIO) (REPLACES HEAVY DUTY KIT) -
2631-35990A1 BEARING ASSEMBLY, Roller (TIMKEN CONE #89449/CUP #89410)
USED W/(1.98, 1.65, 1.84 RATIO) - WAS ALSO USED ON EARLY STYLE 1.50 RATIOS(Component of Gear Repair Kits 1-2 &3)BEARING ASSEMBLY, Roller (TIMKEN CONE #89449/CUP #89410)
USED W/(1.98, 1.65, 1.84 RATIO) - WAS ALSO USED ON EARLY STYLE 1.50 RATIOS(Component of Gear Repair Kits 1-2 &3) -
2631-66818A1 BEARING ASSEMBLY, Tapered Roller (TIMKEN CONE #43131/CUP #43300)
USED WITH 1.32 RATIO(Component of Gear Repair Kit No. 4)BEARING ASSEMBLY, Tapered Roller (TIMKEN CONE #43131/CUP #43300)
USED WITH 1.32 RATIO(Component of Gear Repair Kit No. 4) -
2631-32573A1 BEARING ASSEMBLY, Roller (TIMKEN CONE #24780/CUP #24720)
USED WITH 1.50 RATIO AND 1.50 HEAVY DUTY(Component of Gear Repair Kit 5)BEARING ASSEMBLY, Roller (TIMKEN CONE #24780/CUP #24720)
USED WITH 1.50 RATIO AND 1.50 HEAVY DUTY(Component of Gear Repair Kit 5) -
2712-45810 WASHER
(Component of Gear Repair Kits No.1-5)WASHER
(Component of Gear Repair Kits No.1-5) -
2811-22339 NUT, (.625-18)
(Component of Gear Repair Kits No.1-5)NUT, (.625-18)
(Component of Gear Repair Kits No.1-5) -
2942512A2 SPLASH PLATE KIT (OPTIONAL)SPLASH PLATE KIT (OPTIONAL)
-
3012-8M0042641 WASHER, (.390 x 1.00 x .06) (OPTIONAL)WASHER, (.390 x 1.00 x .06) (OPTIONAL)
-
3126-455771 SEAL (OPTIONAL)SEAL (OPTIONAL)
-
-26-32511A1 SEAL KITSEAL KIT
-
-865436A03 CABLE KIT, ShiftCABLE KIT, Shift
-
-30-803097T1 SEAL KIT, Transom (with Exhaust Bellow)SEAL KIT, Transom (with Exhaust Bellow)
-
-30-803098T1 SEAL KIT, Transom (with Exhaust Tube)SEAL KIT, Transom (with Exhaust Tube)
-
-43-803101T1 REPAIR KIT, Gear - Upper Driveshaft
(1.98 Ratio)(20/24 Gear)REPAIR KIT, Gear - Upper Driveshaft
(1.98 Ratio)(20/24 Gear) -
-43-803112T1 REPAIR KIT, Gear - Upper Driveshaft
(1.65 Ratio)(24/24 Gear)REPAIR KIT, Gear - Upper Driveshaft
(1.65 Ratio)(24/24 Gear) -
-43-803114T1 REPAIR KIT, Gear - Upper Driveshaft
(1.84 Ratio)(17/19 Gear)REPAIR KIT, Gear - Upper Driveshaft
(1.84 Ratio)(17/19 Gear) -
-43-803115T1 REPAIR KIT, Gear - Upper Driveshaft
(1.32 Ratio)(16/20 Gear)REPAIR KIT, Gear - Upper Driveshaft
(1.32 Ratio)(16/20 Gear) -
-43-803116T1 REPAIR KIT, Gear - Upper Driveshaft
(1.50 Ratio)(20/22 Gear)REPAIR KIT, Gear - Upper Driveshaft
(1.50 Ratio)(20/22 Gear)
