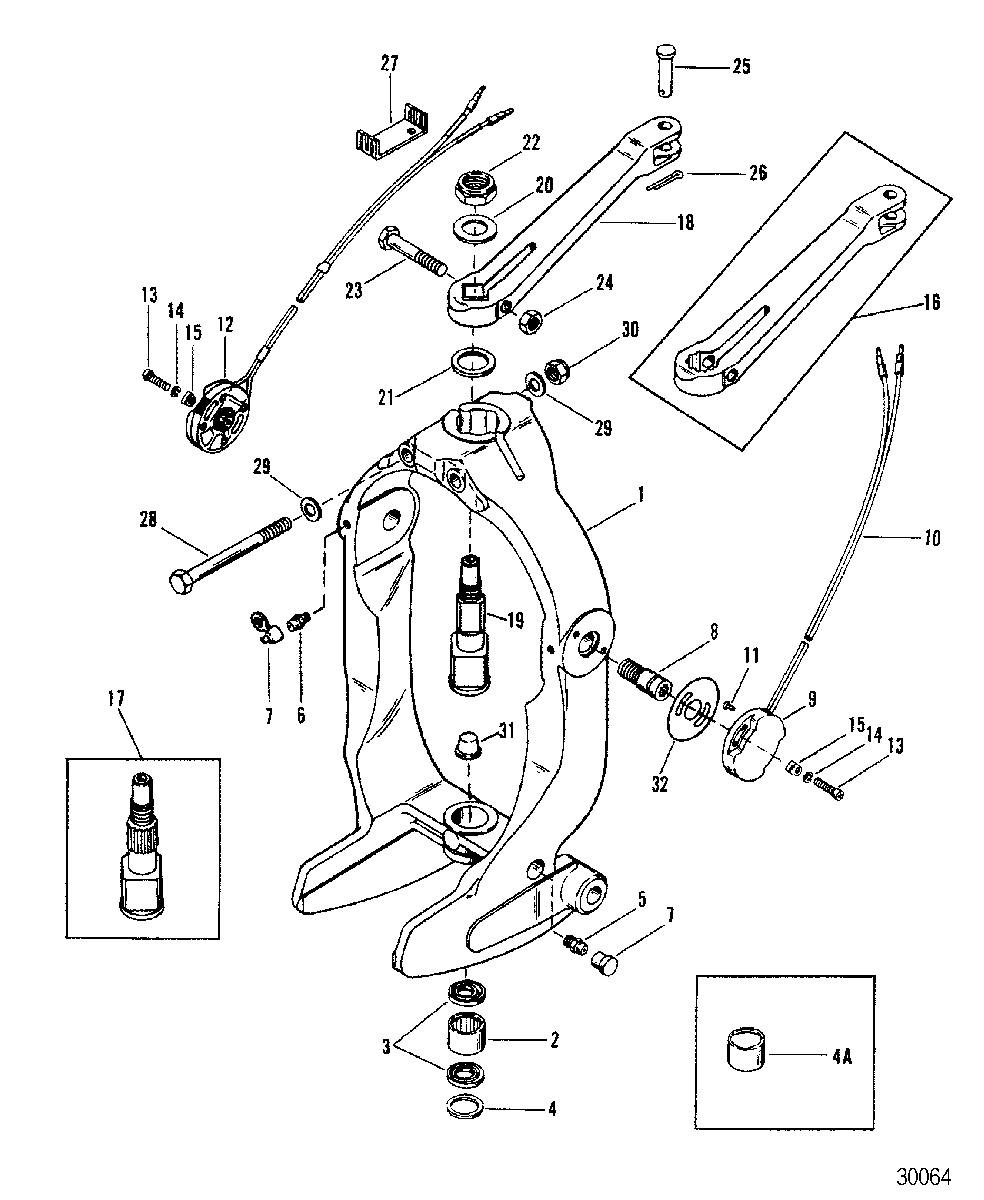

GIMBAL RING AND STEERING LEVER для Mercruiser - R/MR/ALPHA ONE (Transom Assembly) 1983-1990 6216687 THRU 0D469858

№

Артикул

Название
-

94993A12 GIMBAL RING KIT, With Upper Swivel Shaft (use with square steering arm)

GIMBAL RING KIT, With Upper Swivel Shaft (use with square steering arm)

134 530 ₽
-

88302A1 GIMBAL RING KIT, With Upper Swivel Shaft (use with spline steering arm)

GIMBAL RING KIT, With Upper Swivel Shaft (use with spline steering arm)

120 120 ₽
1

94993A7 GIMBAL RING ASSEMBLY (BLACK)

GIMBAL RING ASSEMBLY (BLACK)

117 650 ₽
2

31-32538 BEARING, GIMBAL RING (OLD DESIGN)

BEARING, GIMBAL RING (OLD DESIGN)

2 200 ₽
3

26-32541 SEAL, Oil, GIMBAL RING (OLD DESIGN)

SEAL, Oil, GIMBAL RING (OLD DESIGN)

1 380 ₽
4

23-39273 SPACER, GIMBAL RING (OLD DESIGN)

SPACER, GIMBAL RING (OLD DESIGN)

1 030 ₽
4A

23-99352 BEARING, GIMBAL RING (NYLON) (NEW DESIGN)

BEARING, GIMBAL RING (NYLON) (NEW DESIGN)

2 630 ₽
5

22-69059 FITTING, GIMBAL RING (1/8-27)

FITTING, GIMBAL RING (1/8-27)

720 ₽
6

22-74036 FITTING, Grease, GIMAB RING (1/4-28)

FITTING, Grease, GIMAB RING (1/4-28)

340 ₽
7

19-77633Q LUBRICAP, GIMBAL RING GREASE FITTING

LUBRICAP, GIMBAL RING GREASE FITTING

450 ₽
8

77123 PIN, Hinge, THREADED (WITH GREASE GROOVE)

PIN, Hinge, THREADED (WITH GREASE GROOVE)

3 280 ₽
9

64947 SENDER, DUMMY (STARBOARD) (BLACK)

SENDER, DUMMY (STARBOARD) (BLACK)

2 060 ₽
10

84-19216 HARNESS ASSEMBLY, DUMMY SENDER (STARBOARD)

HARNESS ASSEMBLY, DUMMY SENDER (STARBOARD)

5 920 ₽
11

10-46942 SCREW, (#6-20 x .3125), HARNESS ATTACHING (STARBOARD)

SCREW, (#6-20 x .3125), HARNESS ATTACHING (STARBOARD)

100 ₽
12

805320A03 SWITCH ASSEMBLY, TRIM LIMIT - PORT (BLACK)
NLA- ORDER 805320A 1

SWITCH ASSEMBLY, TRIM LIMIT - PORT (BLACK)
NLA- ORDER 805320A 1

13 140 ₽
13

10-37978 SCREW, (#10-32 x .750) Stainless Steel, SWITCH AND SENDER TO GIMBAL RING

SCREW, (#10-32 x .750) Stainless Steel, SWITCH AND SENDER TO GIMBAL RING

200 ₽
14

13-26996 LOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW

LOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW

60 ₽
15

57008 RETAINER, SWITCH AND SENDER SCREW

RETAINER, SWITCH AND SENDER SCREW

290 ₽
16

94991A1 LEVER ASSEMBLY, Steering (SQUARE/SPLINED SWIVEL SHAFT)

LEVER ASSEMBLY, Steering (SQUARE/SPLINED SWIVEL SHAFT)

0 ₽
17

88302A2 SHAFT, UPPER SWITCH (SQUARE/SPLINED SWIVEL SHAFT)

SHAFT, UPPER SWITCH (SQUARE/SPLINED SWIVEL SHAFT)

32 790 ₽
18

866322A01 LEVER ASSEMBLY (SQUARE SWIVEL SHAFT)

LEVER ASSEMBLY (SQUARE SWIVEL SHAFT)

28 350 ₽
19

98230A1 SHAFT ASSEMBLY, UPPER SWIVEL (SQUARE SWIVEL SHAFT)

SHAFT ASSEMBLY, UPPER SWIVEL (SQUARE SWIVEL SHAFT)

63 660 ₽
20

12-85344 WASHER, (.750 Inside Diameter)

WASHER, (.750 Inside Diameter)

170 ₽
21

12-32997 WASHER (SPLINED SWIVEL SHAFT)

WASHER (SPLINED SWIVEL SHAFT)

0 ₽
21

12-98548 WASHER, (1.125 ) (SQUARE SWIVEL SHAFT)

WASHER, (1.125 ) (SQUARE SWIVEL SHAFT)

510 ₽
22

11-8M2014641 NUT, (.750-16), UPPER SWIVEL SHAFT

NUT, (.750-16), UPPER SWIVEL SHAFT

1 050 ₽
23

10-807204 SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT

SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT

340 ₽
24

11-8M2008293 NUT, (.437-20), STEERING LEVER TO UPPER SWIVEL SHAFT SCREW

NUT, (.437-20), STEERING LEVER TO UPPER SWIVEL SHAFT SCREW

100 ₽
25

17-52798 PIN, Clevis, CABLE TO STEERING LEVER (NON POWER STEERING)

PIN, Clevis, CABLE TO STEERING LEVER (NON POWER STEERING)

560 ₽
26

18-46950 COTTER PIN (NON POWER STEERING)

COTTER PIN (NON POWER STEERING)

250 ₽
27

79146 RETAINER, CONNECTOR, TRIM LIMIT LEADS

RETAINER, CONNECTOR, TRIM LIMIT LEADS

360 ₽
28

10-88432 SCREW, (.375-24 x 4.00), GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10

SCREW, (.375-24 x 4.00), GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10

8 600 ₽
28

10-90126 SCREW, (.375-24 x 3.750), GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10

SCREW, (.375-24 x 3.750), GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10

420 ₽
29

12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, GIMBAL RING SCREW

WASHER, (.406 x .734 x .063) Stainless Steel, GIMBAL RING SCREW

70 ₽
30

11-862903 NUT, (.375-24), GIMBAL RING SCREW

NUT, (.375-24), GIMBAL RING SCREW

250 ₽
31

19-90887 PLUG, UPPER SWIVEL SHAFT

PLUG, UPPER SWIVEL SHAFT

0 ₽
32

85-63990 INSULATOR, TRIM LIMIT SWITCH

INSULATOR, TRIM LIMIT SWITCH

610 ₽
-

805320A03 SWITCH ASSEMBLY (BLACK)

SWITCH ASSEMBLY (BLACK)

13 140 ₽
-

805130A6 SENDER KIT, Dual Station (BLACK)

SENDER KIT, Dual Station (BLACK)

9 220 ₽
