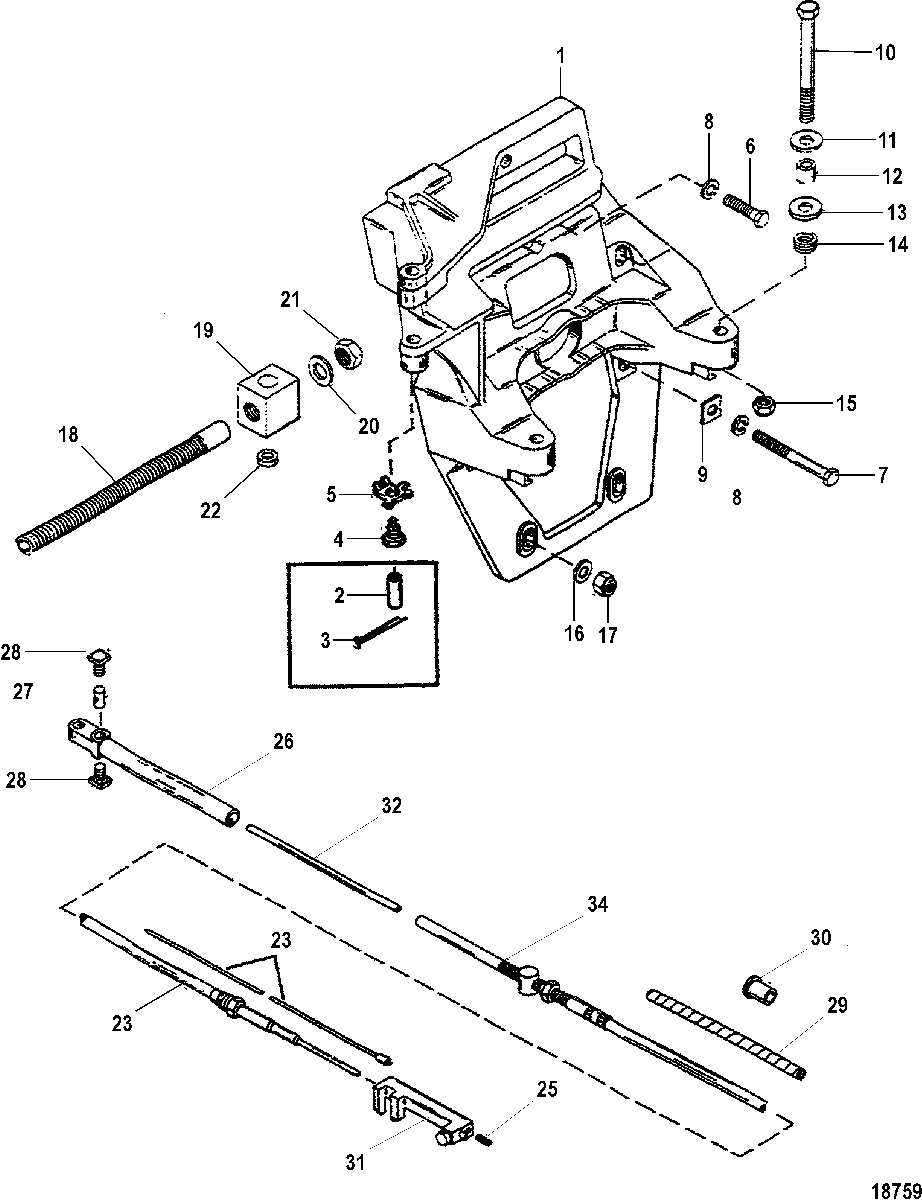

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - R/MR/ALPHA ONE (Transom Assembly) 1983-1990 6216687 THRU 0D469858
-
№АртикулНазвание
-
18M0138839 PLATE ASSEMBLY, TransomPLATE ASSEMBLY, Transom
-
217-99938 PIN, SWIVEL BLOCK (EARLY MODELS)PIN, SWIVEL BLOCK (EARLY MODELS)
-
318-36377 COTTER PIN, RETAINING PIN (EARLY MODELS)COTTER PIN, RETAINING PIN (EARLY MODELS)
-
410-8M0113173 BOLT, SWIVEL BLOCK (LATER MODELS)BOLT, SWIVEL BLOCK (LATER MODELS)
-
514-42254 WASHER, PIVOT BOLT (LATER MODELS)WASHER, PIVOT BOLT (LATER MODELS)
-
610-37269 SCREW, (.437-14 x 2.00), TRANSOM PLATE TO GIMBAL HOUSINGSCREW, (.437-14 x 2.00), TRANSOM PLATE TO GIMBAL HOUSING
-
710-37268 SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSINGSCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING
-
813-32993 LOCKWASHER, (.437), TRANSOM PLATE SCREWLOCKWASHER, (.437), TRANSOM PLATE SCREW
-
912-37271 WASHER, SQUARE - TRANSOM PLATE SCREWWASHER, SQUARE - TRANSOM PLATE SCREW
-
1010-97934 SCREW, (.500-20 x 5.370) Special, TRANSOM PLATE TO FLYWHEEL HOUSINGSCREW, (.500-20 x 5.370) Special, TRANSOM PLATE TO FLYWHEEL HOUSING
-
1112-35777 WASHER, (.5156 x 1.375 x .125) Aluminum, TRANSOM PLATE SCREWWASHER, (.5156 x 1.375 x .125) Aluminum, TRANSOM PLATE SCREW
-
1223-99299 SPACER, (.520 x .870 x .630), TRANSOM PLATE SCREWSPACER, (.520 x .870 x .630), TRANSOM PLATE SCREW
-
1312-32834 WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW (EARLY MODELS)WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW (EARLY MODELS)
-
1413-33734 LOCKWASHER, (.500), TRANSOM PLATE SCREWLOCKWASHER, (.500), TRANSOM PLATE SCREW
-
1511-863332 NUT, (.500-20), TRANSOM PLATE SCREWNUT, (.500-20), TRANSOM PLATE SCREW
-
1612-21900 WASHER, GIMBAL HOUSING BOLTWASHER, GIMBAL HOUSING BOLT
-
1711-34087 NUT, GIMBAL HOUSING BOLTNUT, GIMBAL HOUSING BOLT
-
1896400 TUBE, Steering (NON POWER STEERING)TUBE, Steering (NON POWER STEERING)
-
1995846 SWIVEL BLOCK (NON POWER STEERING)SWIVEL BLOCK (NON POWER STEERING)
-
2012-37985 WASHER, STEERING TUBE (NON POWER STEERING)WASHER, STEERING TUBE (NON POWER STEERING)
-
2111-8M0041651 NUT, (.875-14), STEERING TUBE (NON POWER STEERING)NUT, (.875-14), STEERING TUBE (NON POWER STEERING)
-
2223-95803 BUSHING, BLOCK (NON POWER STEERING)BUSHING, BLOCK (NON POWER STEERING)
-
23865436A02 CABLE ASSEMBLY, ShiftCABLE ASSEMBLY, Shift
-
2510-31700 SCREW, (.250-28 x .750), SHIFT CABLESCREW, (.250-28 x .750), SHIFT CABLE
-
-43433A01 GUIDE KITGUIDE KIT
-
2643433 GUIDE, SHIFT CABLEGUIDE, SHIFT CABLE
-
2743436 ANCHOR, SHIFT CABLEANCHOR, SHIFT CABLE
-
2810-20518 SET SCREW, (#8-32), ANCHORSET SCREW, (#8-32), ANCHOR
-
2938473 WRAPPING, Spiral, SHIFT CABLEWRAPPING, Spiral, SHIFT CABLE
-
3014705 INSERT, NYLON - SHIFT CABLEINSERT, NYLON - SHIFT CABLE
-
31865436A02 SLIDE, SHIFT CABLESLIDE, SHIFT CABLE
-
3232-38377 TUBE, SHIFT CABLE (EARLY MODELS ONLY)TUBE, SHIFT CABLE (EARLY MODELS ONLY)
-
-10-97934A1 BOLT KITBOLT KIT
-
-865436A03 CABLE KIT, ShiftCABLE KIT, Shift
