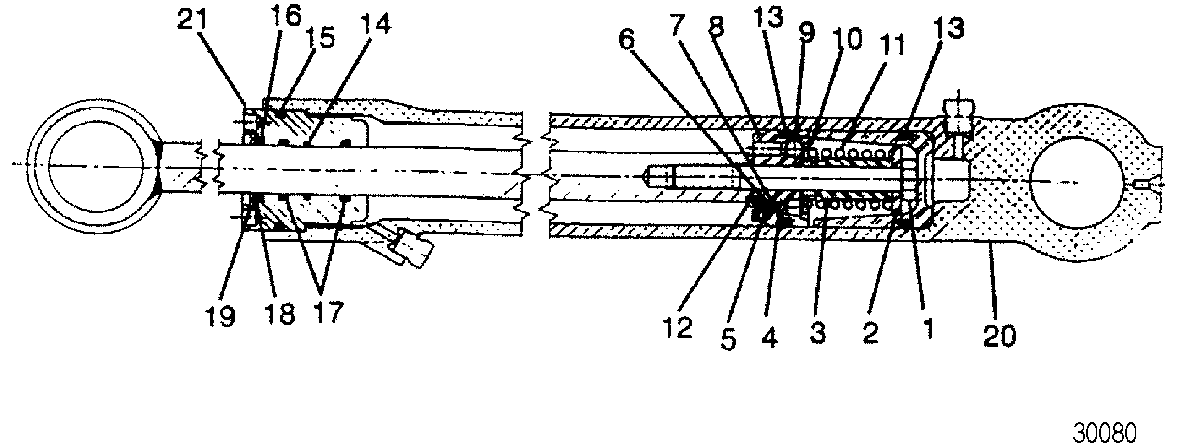

POWER TRIM CYLINDER REPAIR KITS для Mercruiser - R/MR/ALPHA ONE (Transom Assembly) 1983-1990 6216687 THRU 0D469858
-
№АртикулНазвание
-
--87399A2 OVERHAUL KITOVERHAUL KIT
-
1NSS NOT SOLD SEPARATE (10-15 X 3-3/8 inch)NOT SOLD SEPARATE (10-15 X 3-3/8 inch)
-
2NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
3NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
4NSS NOT SOLD SEPARATE, STEEL (.109 DIA.)NOT SOLD SEPARATE, STEEL (.109 DIA.)
-
5NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
6NSS NOT SOLD SEPARATE, COMPRESSIONNOT SOLD SEPARATE, COMPRESSION
-
7NSS NOT SOLD SEPARATE, BALL CHECKNOT SOLD SEPARATE, BALL CHECK
-
8NSS NOT SOLD SEPARATE, SHOCKNOT SOLD SEPARATE, SHOCK
-
9NSS NOT SOLD SEPARATE, STEEL (.250 DIA.)NOT SOLD SEPARATE, STEEL (.250 DIA.)
-
10NSS NOT SOLD SEPARATE, STEEL BALLNOT SOLD SEPARATE, STEEL BALL
-
11NSS NOT SOLD SEPARATE, COMPRESSIONNOT SOLD SEPARATE, COMPRESSION
-
--25-87400A2 SEAL KITSEAL KIT
-
12NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
13NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
14NSS NOT SOLD SEPARATE, CONTINUITYNOT SOLD SEPARATE, CONTINUITY
-
15NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
16NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
17NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
18NSS NOT SOLD SEPARATE, PLAINNOT SOLD SEPARATE, PLAIN
-
19NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
2098703T TUBE (PORT) - CASTING #98703TUBE (PORT) - CASTING #98703
-
2098703A10 TUBE (PORT) - CASTING #98703 1TUBE (PORT) - CASTING #98703 1
-
208M0118960 TUBE (PORT) - CASTING #14035 1 (BLACK)TUBE (PORT) - CASTING #14035 1 (BLACK)
-
2098704T TUBE (STARBOARD) - CASTING #98704TUBE (STARBOARD) - CASTING #98704
-
2098704A10 TUBE (STARBOARD) - CASTING #98704 1TUBE (STARBOARD) - CASTING #98704 1
-
208M0118961 TRIM CYLINDER ASSEMBLY (STARBOARD) - CASTING #14034 1 (BLACK)TRIM CYLINDER ASSEMBLY (STARBOARD) - CASTING #14034 1 (BLACK)
-
2188035 CAP (2.081 O.D.)CAP (2.081 O.D.)
-
2198-8M0118340 CAP (1.89 O.D.) (BLACK)CAP (1.89 O.D.) (BLACK)
