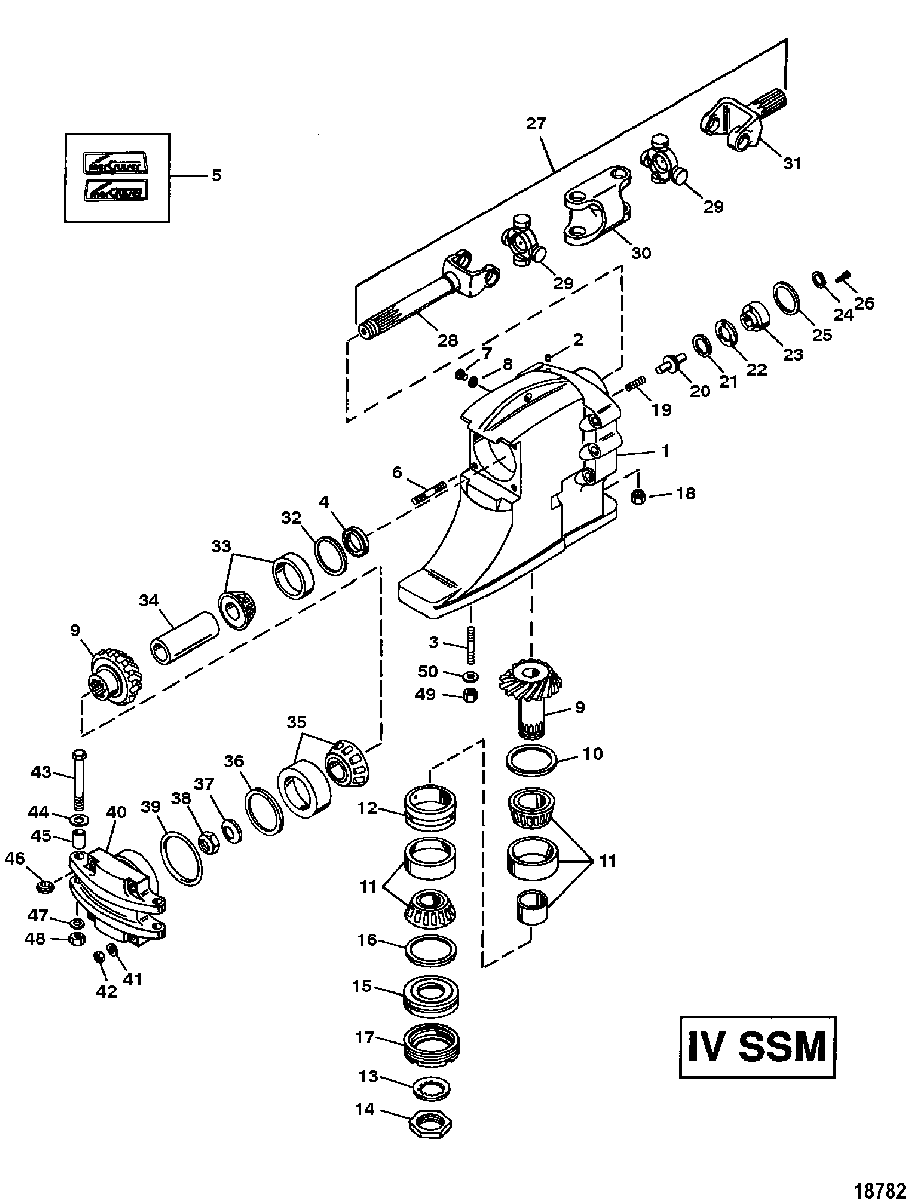

DRIVESHAFT HOUSING AND GEAR ASSEMBLY(IV SSM) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none
-
№АртикулНазвание
-
13509-812421A2 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
222-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
316-57985 STUD (2.810)STUD (2.810)
-
426-38105 SEAL, OilSEAL, Oil
-
537-14489A90 DECAL SETDECAL SET
-
616-13208 STUDSTUD
-
722-8M0058389 SCREW, (.735-16), Vent (.375-16) (Magnetic)SCREW, (.735-16), Vent (.375-16) (Magnetic)
-
812-191833 WASHER, FiberWASHER, Fiber
-
943-813803A3 GEAR SET (Pinion and Drive)
(1.00:1 RATIO)GEAR SET (Pinion and Drive)
(1.00:1 RATIO) -
943-813804A3 GEAR SET (Pinion and Drive)
(1.18:1 RATIO)GEAR SET (Pinion and Drive)
(1.18:1 RATIO) -
943-813806A3 GEAR SET (Pinion and Drive)
(1.25:1 RATIO)GEAR SET (Pinion and Drive)
(1.25:1 RATIO) -
943-813802A3 GEAR SET (Pinion and Drive)
(1.33:1 RATIO)GEAR SET (Pinion and Drive)
(1.33:1 RATIO) -
943-813807A3 GEAR SET (Pinion and Drive)
(1.40:1 RATIO)GEAR SET (Pinion and Drive)
(1.40:1 RATIO) -
943-813805A3 GEAR SET (Pinion and Drive)
(1.50:1 RATIO)GEAR SET (Pinion and Drive)
(1.50:1 RATIO) -
1015-34800A1 SHIM SETSHIM SET
-
1131-34804T4 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1223-47285 SPACERSPACER
-
1312-47451 WASHERWASHER
-
1411-47449 NUT (Special)NUT (Special)
-
15473031 ADAPTORADAPTOR
-
1612-47289 WASHERWASHER
-
1747304 RETAINERRETAINER
-
1811-47302 NUT, (.562-18) Stainless SteelNUT, (.562-18) Stainless Steel
-
1924-48442 SPRINGSPRING
-
2020-48219 CHECK VALVECHECK VALVE
-
2125-48452 QUAD RINGQUAD RING
-
2227-669251 GASKETGASKET
-
2312701A1 VALVE GUIDE ASSEMBLYVALVE GUIDE ASSEMBLY
-
2426-66301 SEAL, OilSEAL, Oil
-
2525-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
2610-56786 SCREW, (#8-32 x .750)SCREW, (#8-32 x .750)
-
2744253T1 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
2844271 YOKE (Driven End)YOKE (Driven End)
-
298M0085593 CROSS AND BEARING ASSEMBLYCROSS AND BEARING ASSEMBLY
-
3063575T SOCKETSOCKET
-
3144253 YOKE (Driving End)YOKE (Driving End)
-
3215-36178A02 SHIM SETSHIM SET
-
3331-39908T1 BEARING ASSEBMLY, Tapered RollerBEARING ASSEBMLY, Tapered Roller
-
3423-8M0050924 SPACERSPACER
-
3531-34804T3 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3615-34822A1 SHIM SETSHIM SET
-
3712-53212 WASHERWASHER
-
3811-82671327 NUT (1.00-14)NUT (1.00-14)
-
3925-47291 O-RINGO-RING
-
4012702T COVER (Rear)COVER (Rear)
-
4112-540121 WASHER, (.530 x .880 x .104) 630 Stainless SteelWASHER, (.530 x .880 x .104) 630 Stainless Steel
-
4211-35000 NUT, (.500-20)NUT, (.500-20)
-
4310-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
4412-540121 WASHER, (.530 x .880 x .104) 630 Stainless SteelWASHER, (.530 x .880 x .104) 630 Stainless Steel
-
4523-85322 SPACERSPACER
-
4623-840229 SPACERSPACER
-
4712-24501 WASHERWASHER
-
4811-35000 NUT, (.500-20)NUT, (.500-20)
-
4911-47302 NUT, (.562-18) Stainless SteelNUT, (.562-18) Stainless Steel
-
5012-180451 WASHERWASHER
-
-1567-8942A8 REBUILD KITREBUILD KIT
