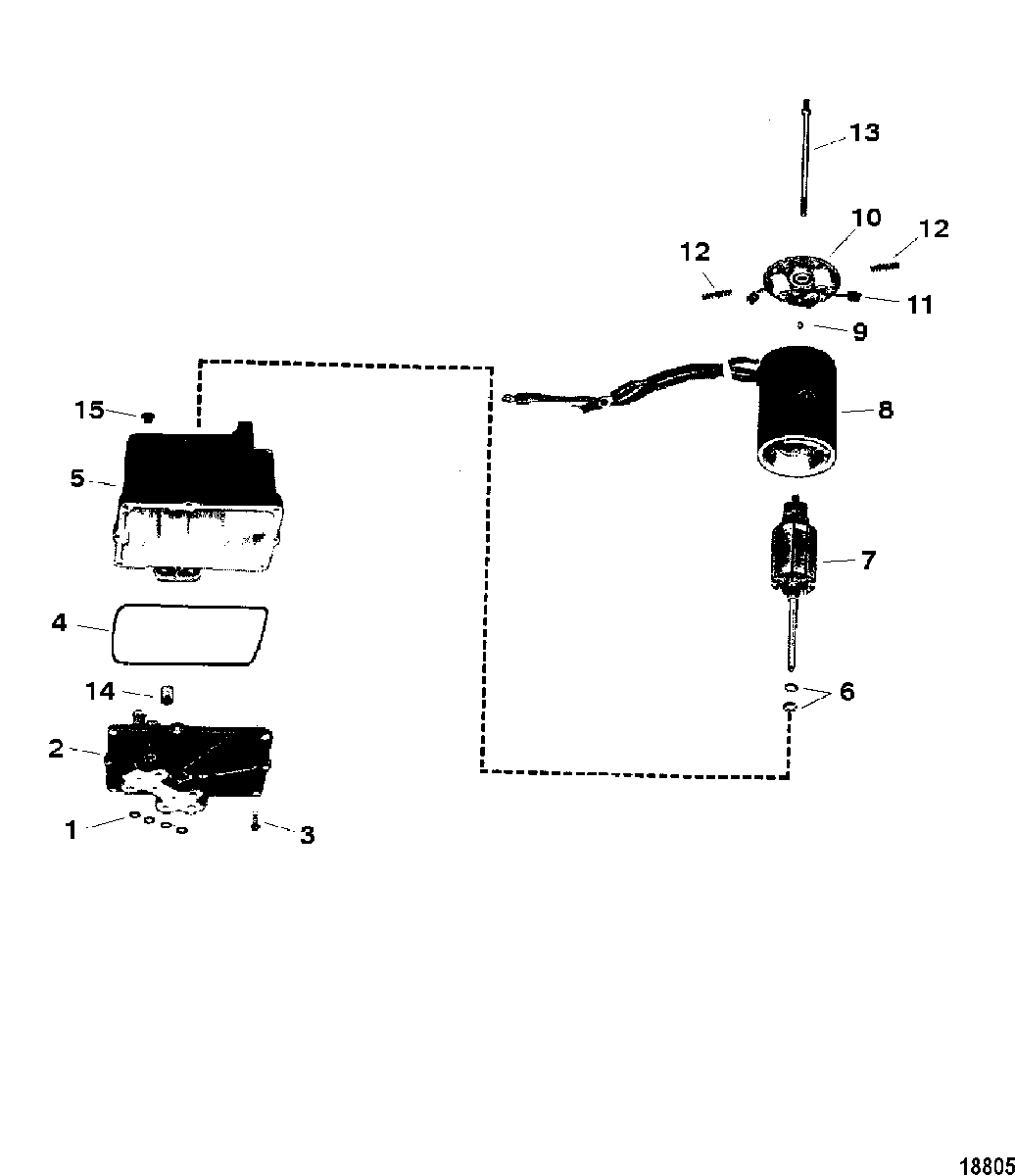

HYDRAULIC PUMP ASSY(III-IV-V) (PRESTOLITE) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none
-
№АртикулНазвание
-
-92975A32 PUMP ASSEMBLY, Hydraulic, Hydraulic
(SEE NOTE)(PRESTOLITE)PUMP ASSEMBLY, Hydraulic, Hydraulic
(SEE NOTE)(PRESTOLITE) -
125-48171 O-RING, (.364. x .070)O-RING, (.364. x .070)
-
292975A32 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
310-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
4392-7735 SEALSEAL
-
5392-7731 RESEROVIR ASSEMBLYRESEROVIR ASSEMBLY
-
6392-7732 WASHERWASHER
-
7392-7729 ARMATUREARMATURE
-
8392-8261 FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
9392-7730 BALL, ThrustBALL, Thrust
-
10392-8262 PLATE ASSEMBLYPLATE ASSEMBLY
-
11392-8989 BRUSH SETBRUSH SET
-
12392-2529 SPRING SETSPRING SET
-
13392-7733 BOLT SETBOLT SET
-
14392-7727 COUPLER AND SHAFTCOUPLER AND SHAFT
-
15392-7728 FILL PLUG, FillFILL PLUG, Fill
