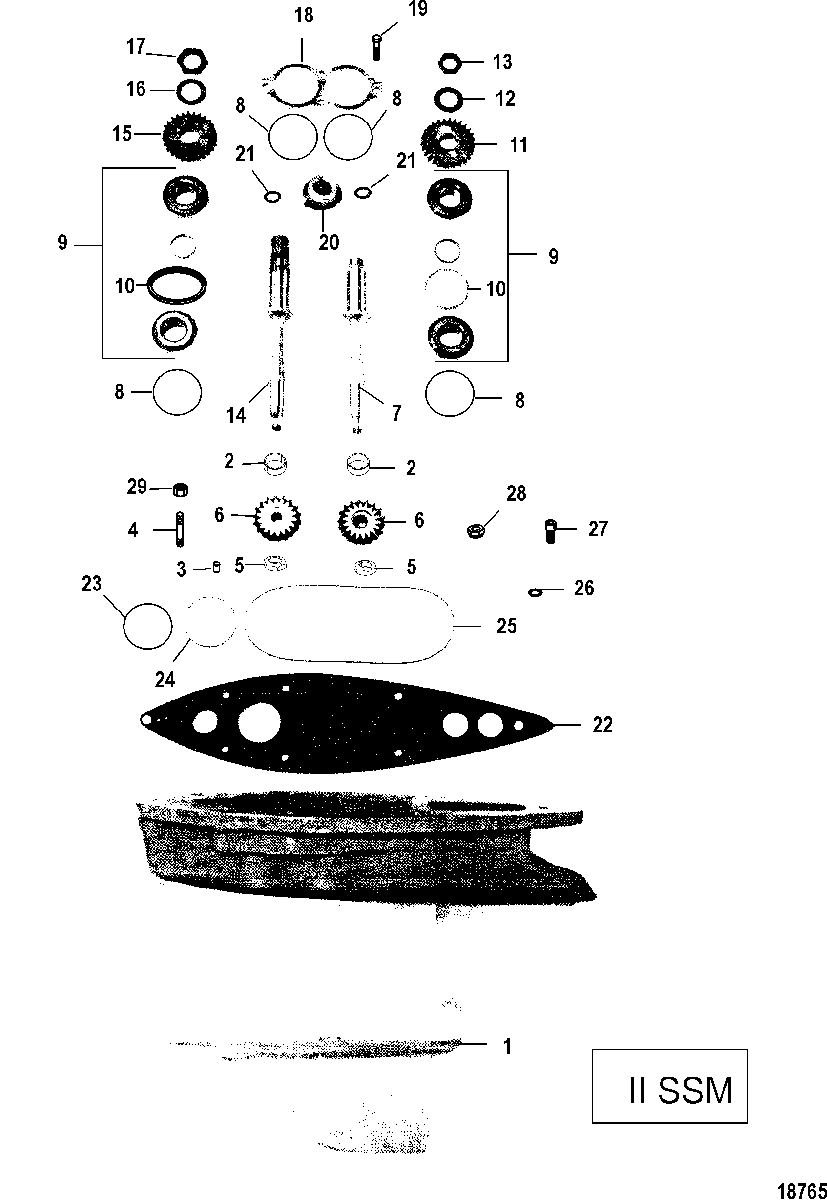

GEAR HOUSING ASSEMBLY(DRIVESHAFT) (II SSM) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none
-
№АртикулНазвание
-
11633-5455A5 GEAR HOUSING ASSEMBLY
(BASIC)GEAR HOUSING ASSEMBLY
(BASIC) -
231-68460 BEARING, NeedleBEARING, Needle
-
317-25104 PIN, DowelPIN, Dowel
-
416-54674 STUD, (.437-14/.437-20 x 2.250)STUD, (.437-14/.437-20 x 2.250)
-
511-35921 NUT, (.625-18)NUT, (.625-18)
-
643-68066A1 GEAR SET
(PINION AND DRIVE) (RH - 1.00:1 RATIO)GEAR SET
(PINION AND DRIVE) (RH - 1.00:1 RATIO) -
643-68060A2 GEAR SET
(PINION AND DRIVE) (LH - 1.00:1 RATIO)GEAR SET
(PINION AND DRIVE) (LH - 1.00:1 RATIO) -
643-95041A1 GEAR SET
(PINION AND DRIVE) (RH - 1.125:1 RATIO)GEAR SET
(PINION AND DRIVE) (RH - 1.125:1 RATIO) -
643-95040A2 GEAR SET
(PINION AND DRIVE) (LH - 1.125:1 RATIO)GEAR SET
(PINION AND DRIVE) (LH - 1.125:1 RATIO) -
745-99159 DRIVESHAFTDRIVESHAFT
-
815-39808A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
931-35990A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1023-39816 SPACERSPACER
-
1143-68081 GEAR, Spur (Rear)GEAR, Spur (Rear)
-
1212-56042 WASHERWASHER
-
1311-53062 NUT (Special)NUT (Special)
-
1445-99158 DRIVESHAFTDRIVESHAFT
-
1543-68079 GEAR, Spur (Front)GEAR, Spur (Front)
-
1612-39820 WASHERWASHER
-
1711-53063 NUT (Special)NUT (Special)
-
1868077 PLATEPLATE
-
1910-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
2068075A1 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
2153-68076 RING, RetainingRING, Retaining
-
2268072 PLATEPLATE
-
2325-54029 O-RING, (2.800 x .103)O-RING, (2.800 x .103)
-
2425-54030 O-RING, (2.987 x .103)O-RING, (2.987 x .103)
-
2525-68073 O-RINGO-RING
-
2625-68074 O-RINGO-RING
-
2710-47557 SCREW, (.500-13 x 1.500)SCREW, (.500-13 x 1.500)
-
2811-35053 NUT, (.437-20)NUT, (.437-20)
-
2911-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
-1633-5455T13 REBUILD KITREBUILD KIT
