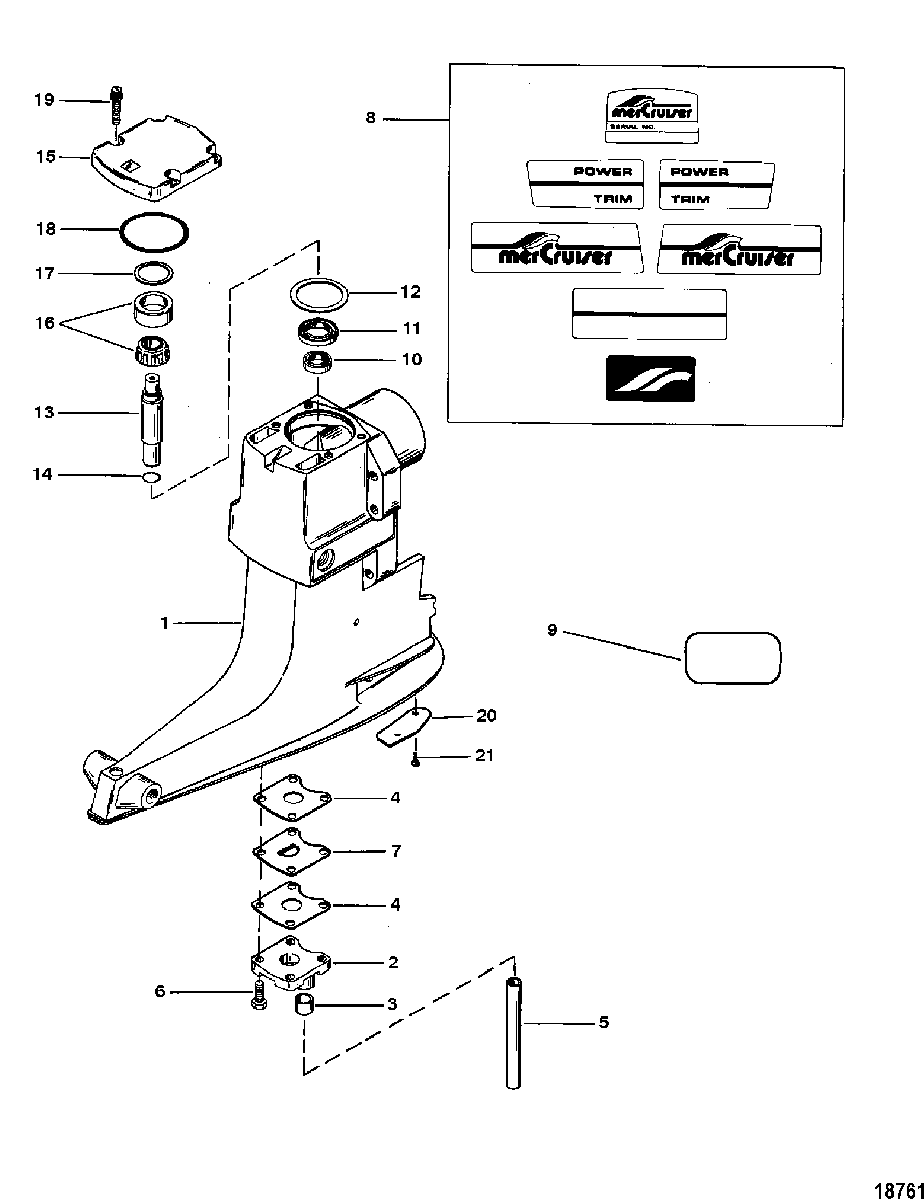

DRIVESHAFT HOUSING ASSEMBLY(ALPHA ONE-SS) для Mercruiser - SSM II/III/IV/V 1982-1995 ALL THRU none
-
№АртикулНазвание
-
13500-9552A5 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
242724A4 COVER ASSEMBLYCOVER ASSEMBLY
-
326-36557 SEAL, Water Inlet TubeSEAL, Water Inlet Tube
-
427-558101 GASKETGASKET
-
532-759146 TUBE, WaterTUBE, Water
-
610-28668 SCREW, (.250-20 x .875) Stainless SteelSCREW, (.250-20 x .875) Stainless Steel
-
712774 PLATE, Water RestrictorPLATE, Water Restrictor
-
837-13682A90 DECAL SETDECAL SET
-
937-13722A10 DECAL SET
(454 MAGNUM) (ALPHA ONE)DECAL SET
(454 MAGNUM) (ALPHA ONE) -
937-16416A87 DECAL
(320) (ALPHA ONE)DECAL
(320) (ALPHA ONE) -
1026-965031 SEAL, OilSEAL, Oil
-
1126-32511 SEAL, OilSEAL, Oil
-
1215-36178A02 SHIM SETSHIM SET
-
1345-55796 DRIVESHAFTDRIVESHAFT
-
1425-55801 O-RINGO-RING
-
1594998A4 COVER ASSEMBLY, TopCOVER ASSEMBLY, Top
-
1631-61100A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1715-45691A1 SHIMSHIM
-
1825-32546 O-RINGO-RING
-
1910-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2014860 WEAR PAD (PORT)WEAR PAD (PORT)
-
2014861 WEAR PAD (STARBOARD)WEAR PAD (STARBOARD)
-
2110-14862 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
-26-32511A1 SEAL KITSEAL KIT
