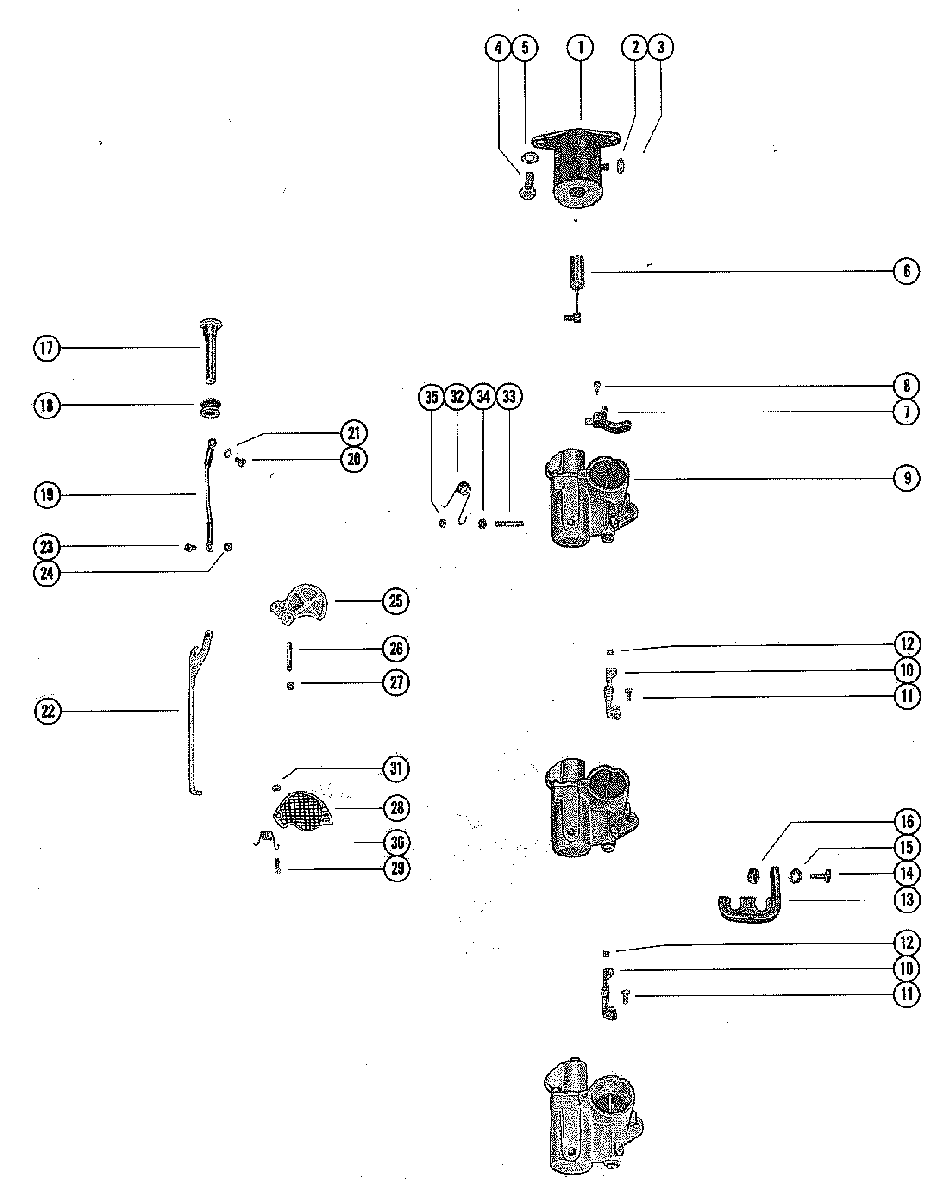

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 1150 2836019 THRU 3525440
-
№АртикулНазвание
-
154293A10 CHOKE SOLENOIDCHOKE SOLENOID
-
213-26996 LOCKWASHER, SOLENOID TERMINALLOCKWASHER, SOLENOID TERMINAL
-
311-68219 NUT, SOLENOID TERMINALNUT, SOLENOID TERMINAL
-
410-25299 SCREW, CHOKE SOLENOID (3/4")SCREW, CHOKE SOLENOID (3/4")
-
513-26993 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
690548A1 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
752518 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
81395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
91352-4510A1 CARBURETOR ASSEMBLY, COMPLETE (KD-6A)
SERIAL 00000000-02928767CARBURETOR ASSEMBLY, COMPLETE (KD-6A)
SERIAL 00000000-02928767 -
91352-4509A1 CARBURETOR ASSEMBLY, COMPLETE (KD-6B)
SERIAL 02928768-02933900CARBURETOR ASSEMBLY, COMPLETE (KD-6B)
SERIAL 02928768-02933900 -
91352-4509A1 CARBURETOR ASSEMBLY, COMPLETE (WMK-3)
SERIAL 03023086-09999999CARBURETOR ASSEMBLY, COMPLETE (WMK-3)
SERIAL 03023086-09999999 -
1053720A2 THROTTLE PICK-UP BRACKET ASSEMBLYTHROTTLE PICK-UP BRACKET ASSEMBLY
-
1110-53651 SCREW, THROTTLE BRACKET MOUNTINGSCREW, THROTTLE BRACKET MOUNTING
-
1228-89694 INSERT, THROTTLE COUPLINGINSERT, THROTTLE COUPLING
-
1359757 BRACKET, COIL LEAD RETAINERBRACKET, COIL LEAD RETAINER
-
1410-64278 SCREW, COIL BRACKET (1")SCREW, COIL BRACKET (1")
-
1512-29245 WASHER, COIL BRACKET SCREWWASHER, COIL BRACKET SCREW
-
1611-20184 NUT, COIL BRACKET SCREWNUT, COIL BRACKET SCREW
-
1790242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1825-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
1949589 STRAP, CHOKE KNOB TO CHOKE RODSTRAP, CHOKE KNOB TO CHOKE ROD
-
2010-48591 SCREW, STRAP TO CHOKE KNOB (1/2")SCREW, STRAP TO CHOKE KNOB (1/2")
-
2113-26996 LOCKWASHER, STRAP SCREWLOCKWASHER, STRAP SCREW
-
2248203 ROD, CHOKEROD, CHOKE
-
2310-48591 SCREW, STRAP TO CHOKE ROD (1/2")SCREW, STRAP TO CHOKE ROD (1/2")
-
2411-46438 NUT, STRAP TO CHOKE ROD SCREWNUT, STRAP TO CHOKE ROD SCREW
-
2548152 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
2616-69037 STUD, CARBURETOR - CHOKE SHUTTER PIVOTSTUD, CARBURETOR - CHOKE SHUTTER PIVOT
-
2711-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
2835-57819 SCREEN ASSEMBLY, FILTER - CARBURETORSCREEN ASSEMBLY, FILTER - CARBURETOR
-
2910-22523 SCREW, LOWER CARBURETOR FILTER SCREEN TO CARBURETOR (5/8")SCREW, LOWER CARBURETOR FILTER SCREEN TO CARBURETOR (5/8")
-
2910-23015 SCREW, UPPER CARBURETOR FILTER SCREEN TO CARBURETOR (1")SCREW, UPPER CARBURETOR FILTER SCREEN TO CARBURETOR (1")
-
3024-57818 SPRING, UPPER FILTER SCREEN SCREWSPRING, UPPER FILTER SCREEN SCREW
-
3111-20110 NUT, CARBURETOR FILTER SCREEN FASTENING SREWNUT, CARBURETOR FILTER SCREEN FASTENING SREW
-
3224-48230 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
3310-657461 STUD, CHOKE ROD SPRING TO CARBURETORSTUD, CHOKE ROD SPRING TO CARBURETOR
-
3423-32427 SPACER, CHOKE ROD SPRING STUDSPACER, CHOKE ROD SPRING STUD
-
3511-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUDNUT, CHOKE ROD SPRING TO CARBURETOR STUD
