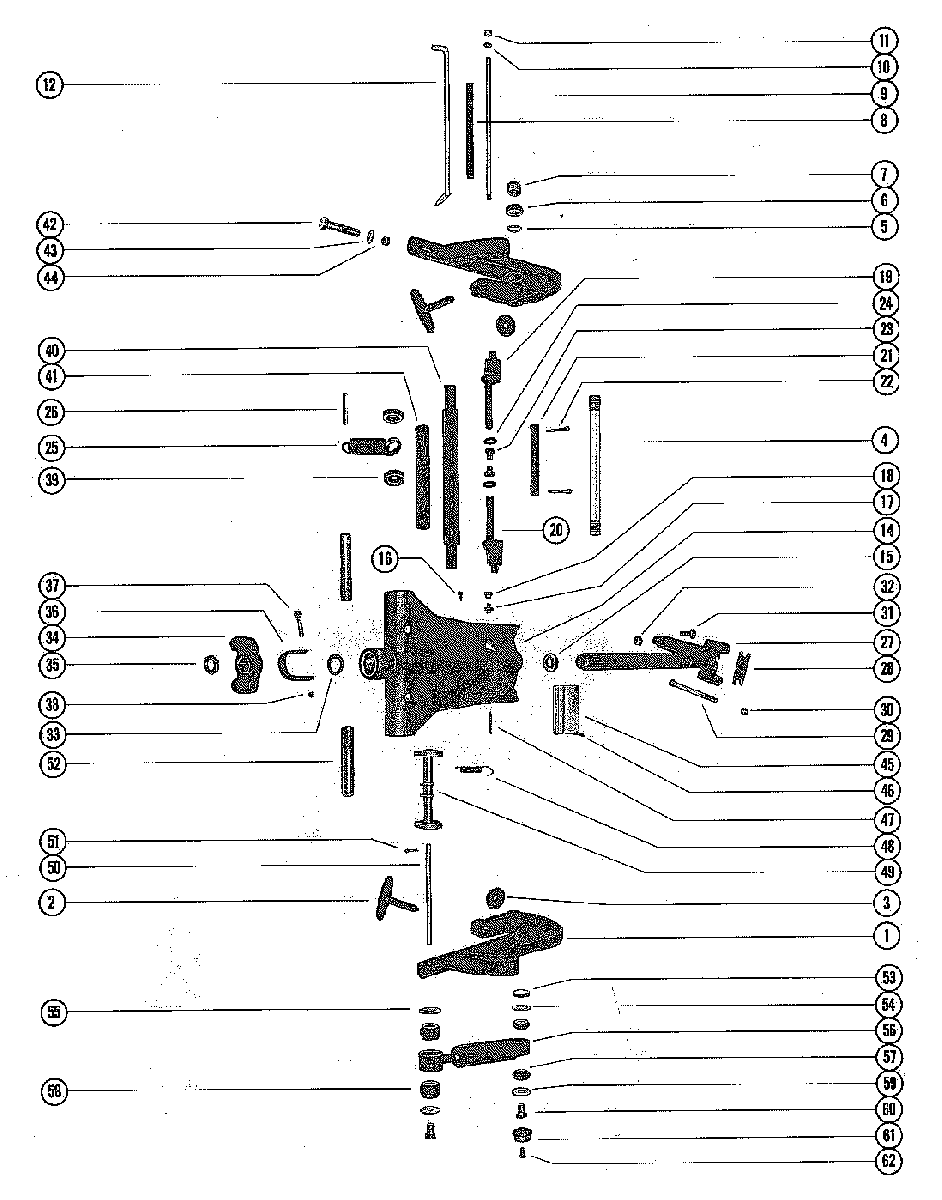

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 1150 2836019 THRU 3525440
-
№АртикулНазвание
-
11440-8394A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
228403A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
312-28404 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 WASHER, CLMAP BRACKET TILT TUBEWASHER, CLMAP BRACKET TILT TUBE
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD, CLAMP BRACKET
(NOT USED WITH FULL POWER TRIM)STUD, CLAMP BRACKET
(NOT USED WITH FULL POWER TRIM) -
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-28770 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
141490-7256A2 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
-
141482-6386A4 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
-
1526-37448 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
1610-47828 SCREW, DRIVE - SWIVEL BRACKETSCREW, DRIVE - SWIVEL BRACKET
-
1722-69059 FITTING, GREASE - SWIVEL BRACKETFITTING, GREASE - SWIVEL BRACKET
-
1819-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTINGLUBRICAP, SWIVEL BRACKET GREASE FITTING
-
1976386 TILT LOCK ASSEMBLY, STARBOARDTILT LOCK ASSEMBLY, STARBOARD
-
2076385T TILT LOCK ASSEMBLY, PORTTILT LOCK ASSEMBLY, PORT
-
2147802 TUBE, TILT LOCKTUBE, TILT LOCK
-
2218-47959 COTTER PIN, TILT LOCK TUBECOTTER PIN, TILT LOCK TUBE
-
2323-47803 BUSHING, TILT LOCK TUBEBUSHING, TILT LOCK TUBE
-
2413-69150 WASHER, WAVE - TILT LOCK TUBEWASHER, WAVE - TILT LOCK TUBE
-
2524-94891 SPRING, COIL - SWIVEL BRACKET
(NOT USED WITH FULL POWER TRIM)SPRING, COIL - SWIVEL BRACKET
(NOT USED WITH FULL POWER TRIM) -
2617-38311 PIN, COIL SPRING MOUNTING
(NOT USED WITH FULL POWER TRIM)PIN, COIL SPRING MOUNTING
(NOT USED WITH FULL POWER TRIM) -
2717-49841A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
-
2717-49840A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
-
2828203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
2910-49554 BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")
-
3011-34933 NUT, STEERING ARM BOLT FASTENINGNUT, STEERING ARM BOLT FASTENING
-
3110-31830 SCREW, RIDE-GUIDE ATTACHINGSCREW, RIDE-GUIDE ATTACHING
-
3211-8M0042636 NUT, RIDE-GUIDE ATTACHING SCREWNUT, RIDE-GUIDE ATTACHING SCREW
-
3312-37429 WASHER, SWIVEL PIN - LOWERWASHER, SWIVEL PIN - LOWER
-
3473984T YOKE, BOTTOMYOKE, BOTTOM
-
3511-37424 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
3628205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
-
3710-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")
-
3811-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
3923-28688 SPACER, RUBBER - COIL SPRING POSITIONINGSPACER, RUBBER - COIL SPRING POSITIONING
-
4055-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
4163473 TUBE, CUSHION - SHOCK PINTUBE, CUSHION - SHOCK PIN
-
4210-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (LOWER)BOLT, CLAMP BRACKET TO BOAT TRANSOM (LOWER)
-
4210-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM (UPPER)BOLT, CLAMP BRACKET TO BOAT TRANSOM (UPPER)
-
4312-46765 WASHER, CLAMP BRACKET BOLT (LOWER)WASHER, CLAMP BRACKET BOLT (LOWER)
-
4312-68300 WASHER, CLAMP BRACKET BOLT (UPPER)WASHER, CLAMP BRACKET BOLT (UPPER)
-
4411-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
4538-56267 SERIAL PLATESERIAL PLATE
-
4610-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKETSCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
-
4717-25598 PIN, REVERSE LOCK SPRING ATTACHING
(NOT USED WITH FULL POWER TRIM)PIN, REVERSE LOCK SPRING ATTACHING
(NOT USED WITH FULL POWER TRIM) -
4824-29821 SPRING, REVERSE LOCK TENSION
(NOT USED WITH FULL POWER TRIM)SPRING, REVERSE LOCK TENSION
(NOT USED WITH FULL POWER TRIM) -
4987431 REVERSE LOCK ASSEMBLY
(NOT USED WITH FULL POWER TRIM)REVERSE LOCK ASSEMBLY
(NOT USED WITH FULL POWER TRIM) -
5056349 SHAFT, REVERSE LOCK PIVOT
(NOT USED WITH FULL POWER TRIM)SHAFT, REVERSE LOCK PIVOT
(NOT USED WITH FULL POWER TRIM) -
5118-45882 COTTER PIN, REVERSE LOCK TO SHAFT
(NOT USED WITH FULL POWER TRIM)COTTER PIN, REVERSE LOCK TO SHAFT
(NOT USED WITH FULL POWER TRIM) -
5255-696531 PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)
-
5255-28414 PIN, LOWER SHOCK MOUNTING LONG SHAFTPIN, LOWER SHOCK MOUNTING LONG SHAFT
-
--10-28424 SCREW, LOWER SHOCK PIN LONG SHAFTSCREW, LOWER SHOCK PIN LONG SHAFT
-
--11-20184 NUT, LOWER SHOCK PIN SCREW LONG SHAFTNUT, LOWER SHOCK PIN SCREW LONG SHAFT
-
5323-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
-
5412-28196 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
5512-59378 WASHER, LOWER BUSHING RETAINER (INNER)
(NOT USED WITH FULL POWER TRIM)WASHER, LOWER BUSHING RETAINER (INNER)
(NOT USED WITH FULL POWER TRIM) -
5655-58780A7 SHOCK ABSORBER
(NOT USED WITH FULL POWER TRIM)SHOCK ABSORBER
(NOT USED WITH FULL POWER TRIM) -
5723-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
(NOT USED WITH FULL POWER TRIM)BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
(NOT USED WITH FULL POWER TRIM) -
5823-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
(NOT USED WITH FULL POWER TRIM)BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
(NOT USED WITH FULL POWER TRIM) -
5912-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
-
6010-69375A1 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN
(NOT USED WITH FULL POWER TRIM)SCREW, UPPER AND LOWER SHOCK MOUNTING PIN
(NOT USED WITH FULL POWER TRIM) -
6170679 COVER, UPPER AND LOWER SHOCK MOUNTING PINCOVER, UPPER AND LOWER SHOCK MOUNTING PIN
-
6210-37655 SCREW, COVER TO SHOCK MOUNTING SCREWSCREW, COVER TO SHOCK MOUNTING SCREW
