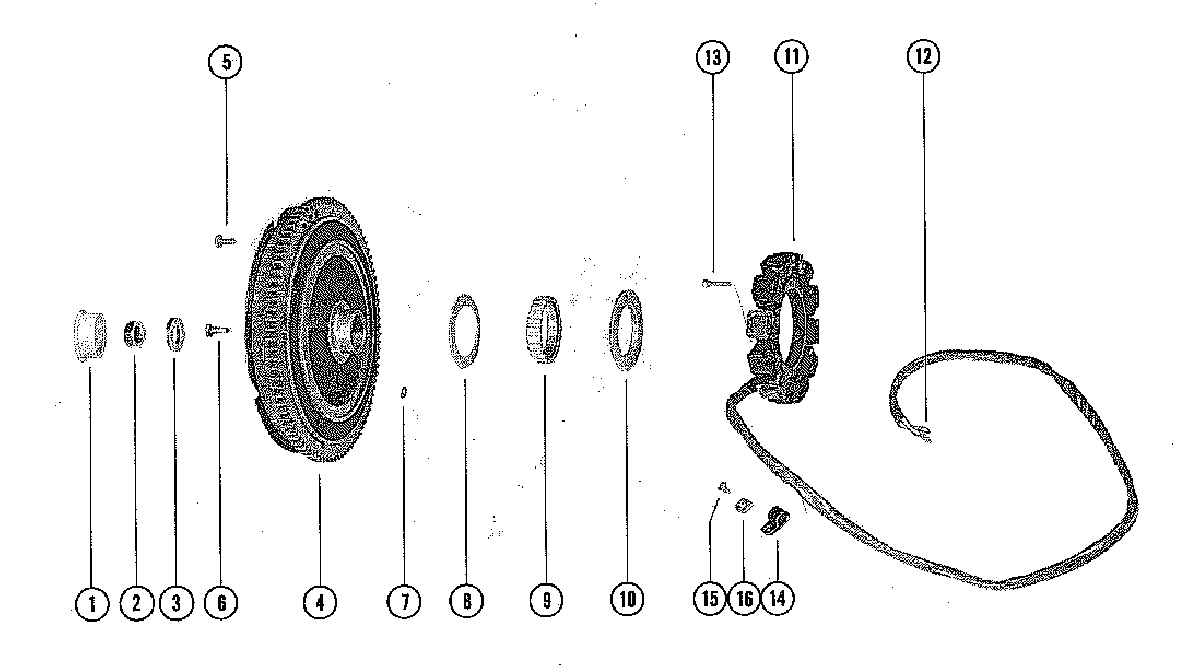

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1150 2836019 THRU 3525440
-
№АртикулНазвание
-
119-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
211-52901 NUT, FLYWHEEL
(PART OF A-436-4842A3 CRANKSHAFT ASSEMBLY)NUT, FLYWHEEL
(PART OF A-436-4842A3 CRANKSHAFT ASSEMBLY) -
312-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE (SERIAL #3114543 AND BELOW)
SERIAL 00000000-03114543FLYWHEEL ASSEMBLY, COMPLETE (SERIAL #3114543 AND BELOW)
SERIAL 00000000-03114543 -
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE (SERIAL #3270480 AND UP)
SERIAL 03270480-09999999FLYWHEEL ASSEMBLY, COMPLETE (SERIAL #3270480 AND UP)
SERIAL 03270480-09999999 -
510-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
-
610-68997 SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")
-
717-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
829788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
930306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1029787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
11398-4793 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
1230050 TERMINAL, STATOR LEAD WIRETERMINAL, STATOR LEAD WIRE
-
1310-63136 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
1454-22875 CLIP, STATOR LEAD FASTENING (7/16")CLIP, STATOR LEAD FASTENING (7/16")
-
1454-26550 CLIP STATOR/WIRING HARNESS LEADS FASTENING (5/16")CLIP STATOR/WIRING HARNESS LEADS FASTENING (5/16")
-
1510-62568 SCREW, STATOR LEAD CLIP FASTENING (3/8")SCREW, STATOR LEAD CLIP FASTENING (3/8")
-
168M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
