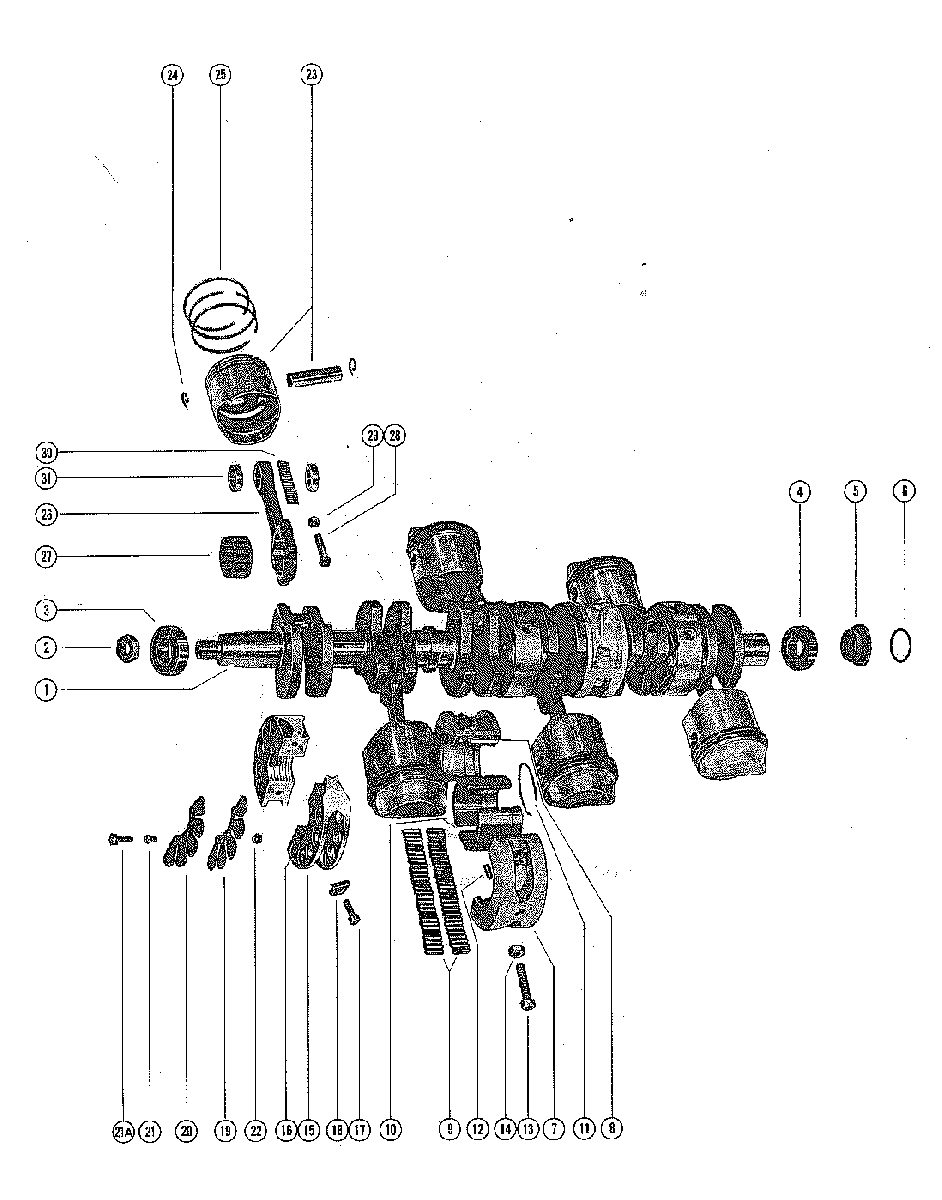

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 1150 2836019 THRU 3525440
-
№АртикулНазвание
-
1436-9072A1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
211-52901 NUT, FLYWHEEL TO CRANKSHAFTNUT, FLYWHEEL TO CRANKSHAFT
-
330-62567T BEARING, BALL - UPPERBEARING, BALL - UPPER
-
430-63742T BEARING, BALL - LOWERBEARING, BALL - LOWER
-
554196A6 CARRIER ASSEMBLY, "O" RING
SERIAL 02933580-09999999CARRIER ASSEMBLY, "O" RING
SERIAL 02933580-09999999 -
625-35126 "O" RING, CARRIER
SERIAL 02933580-09999999"O" RING, CARRIER
SERIAL 02933580-09999999 -
7535-3190A2 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
817-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
929-714221 BEARING, NEEDLE - OUTER RACEBEARING, NEEDLE - OUTER RACE
-
1026113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1153-26933 RING, SNAP - OUTER RACERING, SNAP - OUTER RACE
-
1217-47246 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
1310-22968 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
1411-20184 NUT, BEARING CLAMPING SCREWNUT, BEARING CLAMPING SCREW
-
15540-5266A9 MAIN BEARING ASSEMBLY, VALVE TYPE
SERIAL 00000000-03274149MAIN BEARING ASSEMBLY, VALVE TYPE
SERIAL 00000000-03274149 -
15540-5266A9 MAIN BEARING ASSEMBLY, VALVE TYPE
SERIAL 03274150-09999999MAIN BEARING ASSEMBLY, VALVE TYPE
SERIAL 03274150-09999999 -
1617-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1710-45775 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
1811-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1934-56007A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
2034-57422 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
2110-20055 SCREW, REED STOP MOUNTING
SERIAL 00000000-03274149SCREW, REED STOP MOUNTING
SERIAL 00000000-03274149 -
21A10-62204 SCREW, REED STOP MOUNTING
SERIAL 03274150-09999999SCREW, REED STOP MOUNTING
SERIAL 03274150-09999999 -
2211-53153 NUT, REED STOP MOUNTING SCREW
SERIAL 03274150-09999999NUT, REED STOP MOUNTING SCREW
SERIAL 03274150-09999999 -
23774-9137A12 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2453-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2539-78816A12 RING, PISTON (1/16" THICK)RING, PISTON (1/16" THICK)
-
26624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2731-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2810-54803 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
2911-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
3029-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
3112-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- COWLING AND FRONT COVER
- • CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE
- DISTRIBUTOR HOUSING AND ROTOR
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL ASSEMBLY AND STATOR
- FUEL PUMP AND FUEL LINE ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- HYDRAULIC PUMP AND CONTROL PANEL
- HYDRAULIC PUMP ASSEMBLY
- MISCELLANEOUS PARTS/ACCESSORIES
- OVERSIZE PISTONS AND RINGS
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS
- TOP COWL AND SUPPORT BRACKETS
- TRIM CYLINDERS AND HYDRAULIC HOSES
