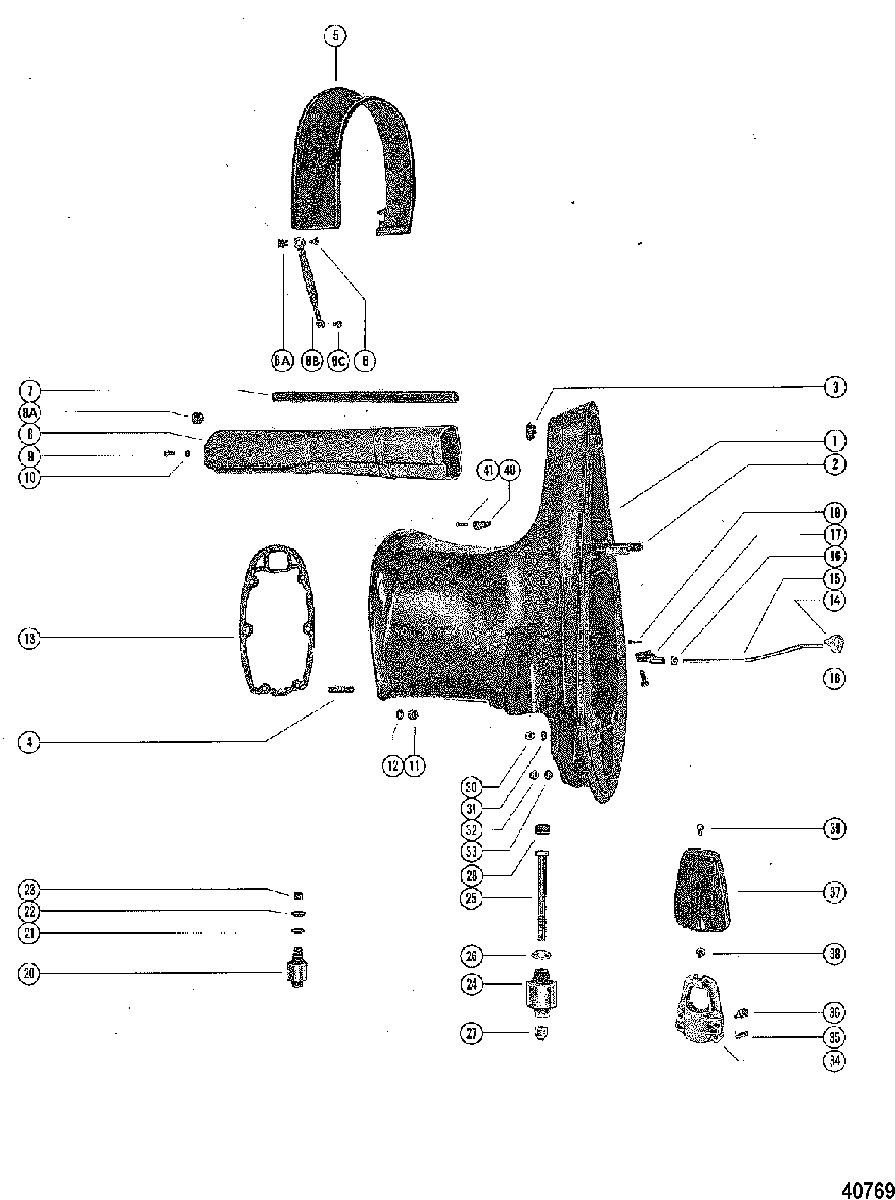

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 1150 8008665 THRU 8051949
-
№АртикулНазвание
-
11575-5240A4 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowHOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
11575-5240A4 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpHOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
11573-5239A4 HOUSING ASSEMBLY, Driveshaft (LONG SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowHOUSING ASSEMBLY, Driveshaft (LONG SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
11573-5239A4 HOUSING ASSEMBLY, Driveshaft - Mercury (LONG SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpHOUSING ASSEMBLY, Driveshaft - Mercury (LONG SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
216-56295 STUD, (.437 x 2.69)STUD, (.437 x 2.69)
-
319-64649 PLUG, PLASTIC
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowPLUG, PLASTIC
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
416-34378 STUD (2-5/16")
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowSTUD (2-5/16")
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
537417 COVER, TRIMCOVER, TRIM
-
610-57807 SCREW, (#10-16 x .750) Stainless SteelSCREW, (#10-16 x .750) Stainless Steel
-
6A25-8M0079730 GROMMET, PLASTICGROMMET, PLASTIC
-
6B46933A2 STRAP ASSEMBLY, GroundSTRAP ASSEMBLY, Ground
-
6C10-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
732-62864 TUBE, WATER INLET
(SHORT SHAFT)TUBE, WATER INLET
(SHORT SHAFT) -
732-60897 TUBE, WATER INLET
(LONG SHAFT)TUBE, WATER INLET
(LONG SHAFT) -
866345A1 TUBE, EXHAUST- (SHORT SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowTUBE, EXHAUST- (SHORT SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
865370 TUBE, EXHAUST- (SHORT SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpTUBE, EXHAUST- (SHORT SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
866344A1 TUBE, EXHAUST- (LONG SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowTUBE, EXHAUST- (LONG SHAFT)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
878184T TUBE, EXHAUST- (LONG SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpTUBE, EXHAUST- (LONG SHAFT)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
8A65638 BOOT, TUBE MOUNT
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpBOOT, TUBE MOUNT
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
910-28636 SCREW, (.250-20 x .750)
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowSCREW, (.250-20 x .750)
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
1013-26992 LOCKWASHER, (.250) Stainless Steel
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowLOCKWASHER, (.250) Stainless Steel
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
1111-69254 NUT, POWERHEAD STUDS (3/8-24)NUT, POWERHEAD STUDS (3/8-24)
-
1212-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1327-66335 GASKET
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowGASKET
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
1327-66335 GASKET
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257GASKET
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257 -
1452887 GUIDE
NOT USED WITH FULL POWER TRIMGUIDE
NOT USED WITH FULL POWER TRIM -
1547591 ROD, PUSH (SHORT SHAFT)
NOT USED WITH FULL POWER TRIMROD, PUSH (SHORT SHAFT)
NOT USED WITH FULL POWER TRIM -
1547558 ROD, PUSH (LONG SHAFT)
NOT USED WITH FULL POWER TRIMROD, PUSH (LONG SHAFT)
NOT USED WITH FULL POWER TRIM -
1611-69254 NUT, JAM
NOT USED WITH FULL POWER TRIMNUT, JAM
NOT USED WITH FULL POWER TRIM -
1747559 YOKE
NOT USED WITH FULL POWER TRIMYOKE
NOT USED WITH FULL POWER TRIM -
1824-78203A2 PIN
NOT USED WITH FULL POWER TRIMPIN
NOT USED WITH FULL POWER TRIM -
1918-25191 COTTER PIN
NOT USED WITH FULL POWER TRIMCOTTER PIN
NOT USED WITH FULL POWER TRIM -
2075296 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2112-47840 WASHER, RUBBERWASHER, RUBBER
-
2212-31263 WASHERWASHER
-
2311-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2449455 MOUNT, RUBBER - LOWER (SHORT SHAFT)MOUNT, RUBBER - LOWER (SHORT SHAFT)
-
2475299 MOUNT, RUBBER - LOWER (LONG SHAFT)MOUNT, RUBBER - LOWER (LONG SHAFT)
-
2510-75284 SCREW, LOWER MOUNT (5-1/2")SCREW, LOWER MOUNT (5-1/2")
-
2612-49339 WASHER, (.8125)WASHER, (.8125)
-
2711-25096 NUTNUT
-
2825067 BUMPER, RUBBERBUMPER, RUBBER
-
3011-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
3112-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
3211-29489 NUTNUT
-
3312-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
3435608 CLAMPCLAMP
-
3524-35522 SPRING, TENSIONSPRING, TENSION
-
3610-29256 SCREW, (.312-18 x .875)SCREW, (.312-18 x .875)
-
3735474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
3811-35521 NUTNUT
-
3910-29722 SCREW, (#12-24 x .625)SCREW, (#12-24 x .625)
-
4062497 BRACKET, SUPPORT - DRIVESHAFT
(LONG SHAFT)BRACKET, SUPPORT - DRIVESHAFT
(LONG SHAFT) -
4110-48409 SCREW, (#10-16 x .625) Stainless Steel
(LONG SHAFT)SCREW, (#10-16 x .625) Stainless Steel
(LONG SHAFT) -
-27-85653A87 GASKET SETGASKET SET
