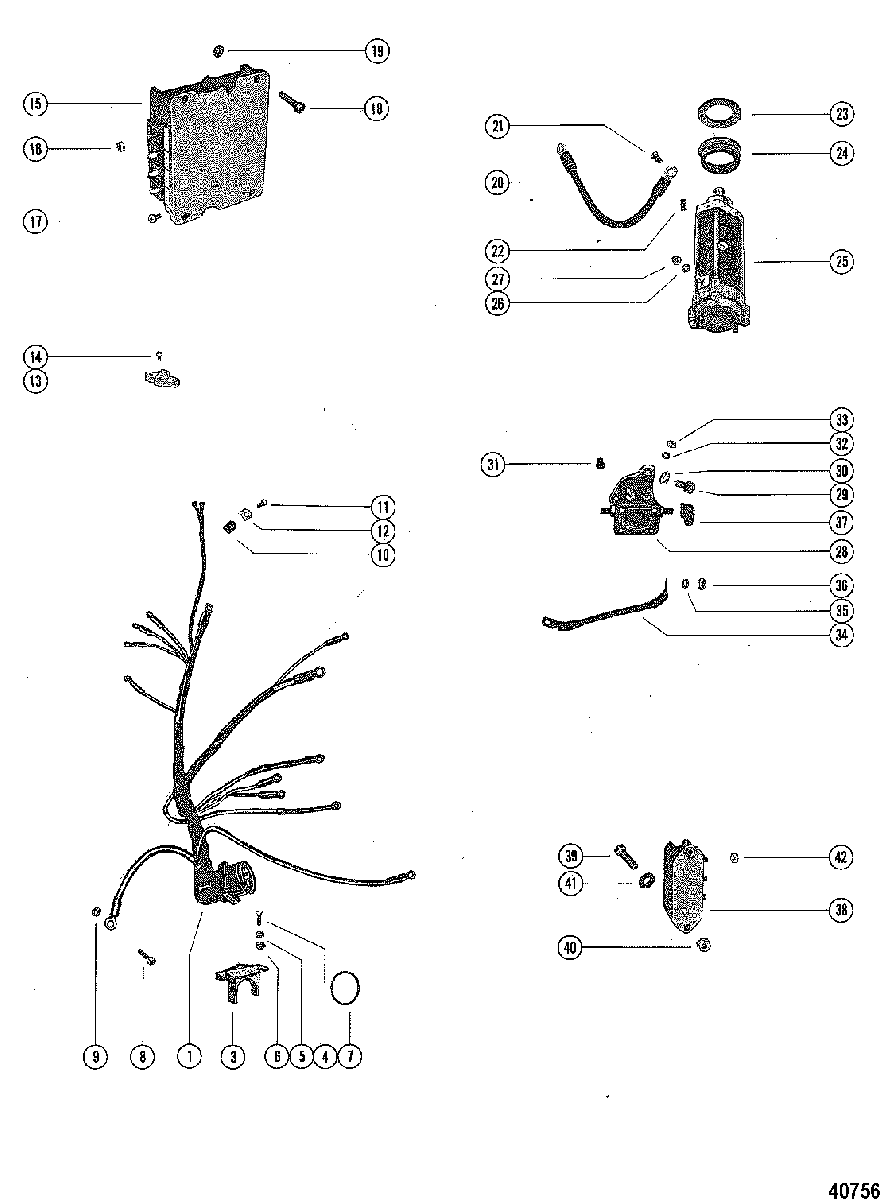

ELECTRICAL COMPONENTS для Mercury - 1150 8008665 THRU 8051949
-
№АртикулНазвание
-
184-69236A1 HARNESS ASSEMBLY
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowHARNESS ASSEMBLY
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
184-69236A1 HARNESS ASSEMBLY
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpHARNESS ASSEMBLY
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
354-76368 CLAMP, WIRING HARNESS TO BOTTOM COWLCLAMP, WIRING HARNESS TO BOTTOM COWL
-
410-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
612-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
724-28975 SPRING, GARTERSPRING, GARTER
-
810-98256 SCREW, (.250-28 x .50)SCREW, (.250-28 x .50)
-
913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1054-648552 CLIP (1/8")CLIP (1/8")
-
1110-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
128M0084613 C WASHERC WASHER
-
1345559 TERMINAL BLOCK, STATOR LEADSTERMINAL BLOCK, STATOR LEADS
-
1410-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
15332-2986A21 SWITCHBOX ASSEMBLY
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowSWITCHBOX ASSEMBLY
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
15332-2986A21 SWITCHBOX ASSEMBLY
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpSWITCHBOX ASSEMBLY
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
1611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1710-29794 SCREW (3/8")SCREW (3/8")
-
1810-64279 SCREW (3/4")SCREW (3/4")
-
1911-20184 NUT, (1/4-28)NUT, (1/4-28)
-
2084-93389A12 CABLECABLE
-
2110-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
228M0043376 STOP, RUBBERSTOP, RUBBER
-
2323-56774 SPACERSPACER
-
2423-8M0034918 COLLAR, RUBBERCOLLAR, RUBBER
-
2550-898265010 STARTER MOTOR ASSEMBLY
(PRESTOLITE)STARTER MOTOR ASSEMBLY
(PRESTOLITE) -
2550-898265010 STARTER MOTOR ASSEMBLY
(BOSCH)STARTER MOTOR ASSEMBLY
(BOSCH) -
2613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2711-64015 NUT, (.250-20)NUT, (.250-20)
-
2825661T1 SOLENOID, STARTER
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSOLENOID, STARTER
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
2889-853654A1 SOLENOID, Starter
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSOLENOID, Starter
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
2910-69028 SCREW, (.250-28 x .750)
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSCREW, (.250-28 x .750)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
2910-38601 SCREW, (.250-28 x 1.250)
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSCREW, (.250-28 x 1.250)
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
3013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
31269011 BUMPER, RUBBERBUMPER, RUBBER
-
3213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
3311-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
3448396 CABLE
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowCABLE
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
3484-93388A8 CABLE
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpCABLE
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
3513-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
3611-68292 NUT, (.312-18)NUT, (.312-18)
-
3746265 BOOT, SOLENOID TERMINALBOOT, SOLENOID TERMINAL
-
3878614A1 RECTIFIER ASSEMBLY
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowRECTIFIER ASSEMBLY
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
388M0058226 RECTIFIER
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpRECTIFIER
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
3910-64278 SCREW, (.250-28 x 1.00)
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSCREW, (.250-28 x 1.00)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
3910-37656 SCREW, (#10-32 x .620)
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSCREW, (#10-32 x .620)
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
4011-20184 NUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowNUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
4112-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpWASHER, (.192 x .375 x .0312) Stainless Steel
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
4211-45076 NUT, (#10-32) Brass
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowNUT, (#10-32) Brass
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
4211-45076 NUT, (#10-32) Brass
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpNUT, (#10-32) Brass
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARB, USA-3761034/Aus.-8014004/Canada-7025597 and Below
- CARB, USA-3761035/Aus.-8014005/Canada-7025598 and Up
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET AND REVERSE LOCK
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE
- DISTRIBUTOR HOUSING AND ROTOR
- DRIVESHAFT HOUSING ASSEMBLY
- • ELECTRICAL COMPONENTS
- END CAP, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE
- FLYWHEEL ASSEMBLY AND STATOR
- FUEL PUMP, USA-3761034/Aus.-8014004/Canada-7025597 and Below
- FUEL PUMP, USA-3761035/Aus.-8014005/Canada-7025598 and Up
- GEAR HOUSING ASSEMBLY, DRIVESHAFT
- GEAR HOUSING ASSEMBLY, Propshaft
- HYDRAULIC PUMP AND CONTROL PANEL
- HYDRAULIC PUMP ASSEMBLY
- IGNITION COIL
- MISCELLANEOUS PARTS
- POWER TRIM CYLINDER REPAIR KITS
- PROPELLERS
- SWIVEL BRACKET ASSEMBLY
- TOP COWL AND SUPPORT BRACKETS
- TRIM CYLINDERS AND HYDRAULIC HOSES
