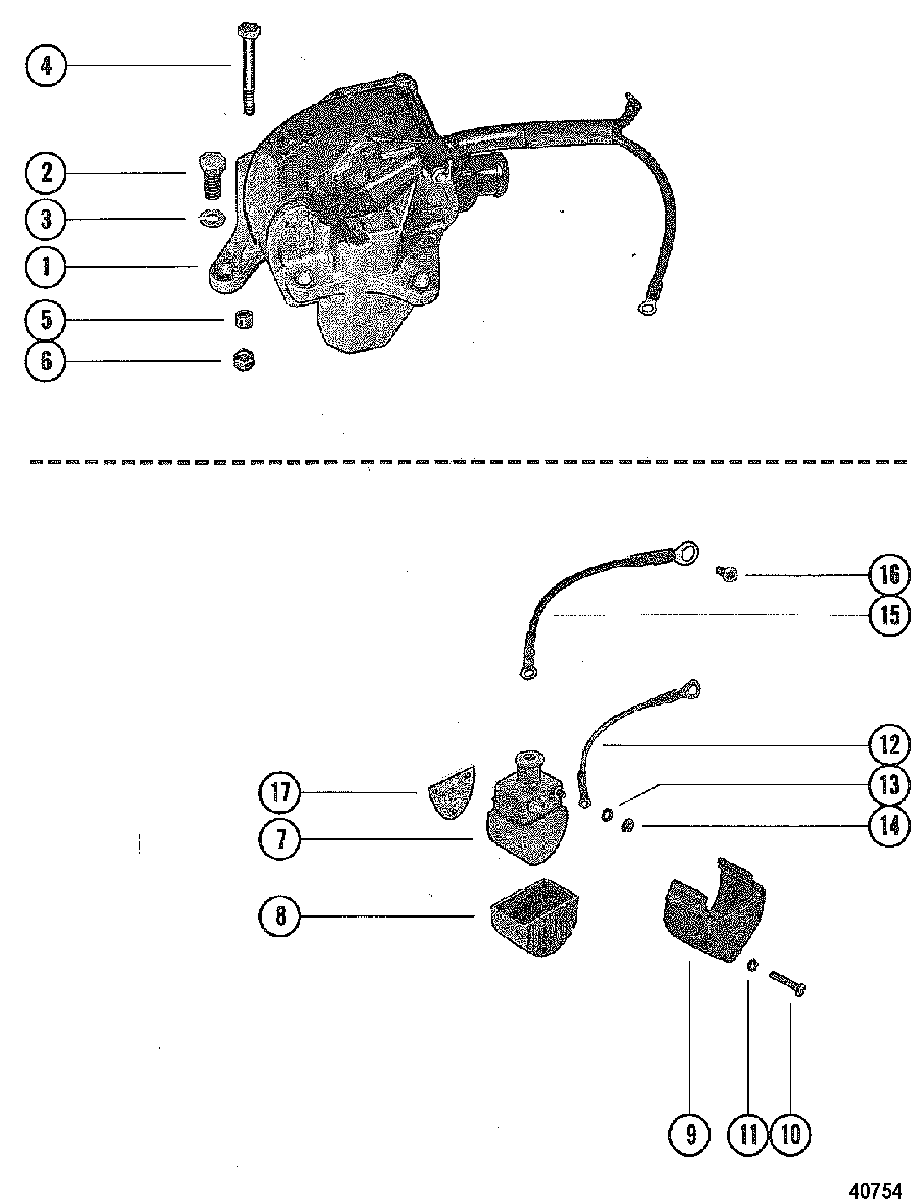

IGNITION COIL для Mercury - 1150 8008665 THRU 8051949
-
№АртикулНазвание
-
1332-4895A5 COIL ASSEMBLY, Ignition, COMPLETE
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowCOIL ASSEMBLY, Ignition, COMPLETE
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
210-37941 SCREW, (.250 x 1.750)
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSCREW, (.250 x 1.750)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
313-26992 LOCKWASHER, (.250) Stainless Steel
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowLOCKWASHER, (.250) Stainless Steel
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
410-88488 SCREW (3-1/4")
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSCREW (3-1/4")
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
523-52933 SPACER
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSPACER
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
611-20184 NUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowNUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
7332-4895T2 COIL ASSEMBLY, Ignition
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpCOIL ASSEMBLY, Ignition
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
872015 PAD, RUBBER
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpPAD, RUBBER
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
963195 COVER, IGNITION COIL
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpCOVER, IGNITION COIL
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1010-88856 SCREW (2")
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSCREW (2")
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1112-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpWASHER, (.192 x .375 x .0312) Stainless Steel
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1284-60466A1 CABLE ASSEMBLY, Black (2.50 Inches)
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpCABLE ASSEMBLY, Black (2.50 Inches)
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1313-26996 LOCKWASHER, (#10) Stainless Steel, IGNITION COIL TERMINAL
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpLOCKWASHER, (#10) Stainless Steel, IGNITION COIL TERMINAL
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1411-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINAL
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpNUT, (#10-32) Brass, IGNITION COIL TERMINAL
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1584-66054A2 CABLE ASSEMBLY, COIL TO SWITCH BOX
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpCABLE ASSEMBLY, COIL TO SWITCH BOX
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1610-62568 SCREW, (#10-16 x .375)
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSCREW, (#10-16 x .375)
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1769190 PLATE, COIL MOUNTING
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpPLATE, COIL MOUNTING
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
