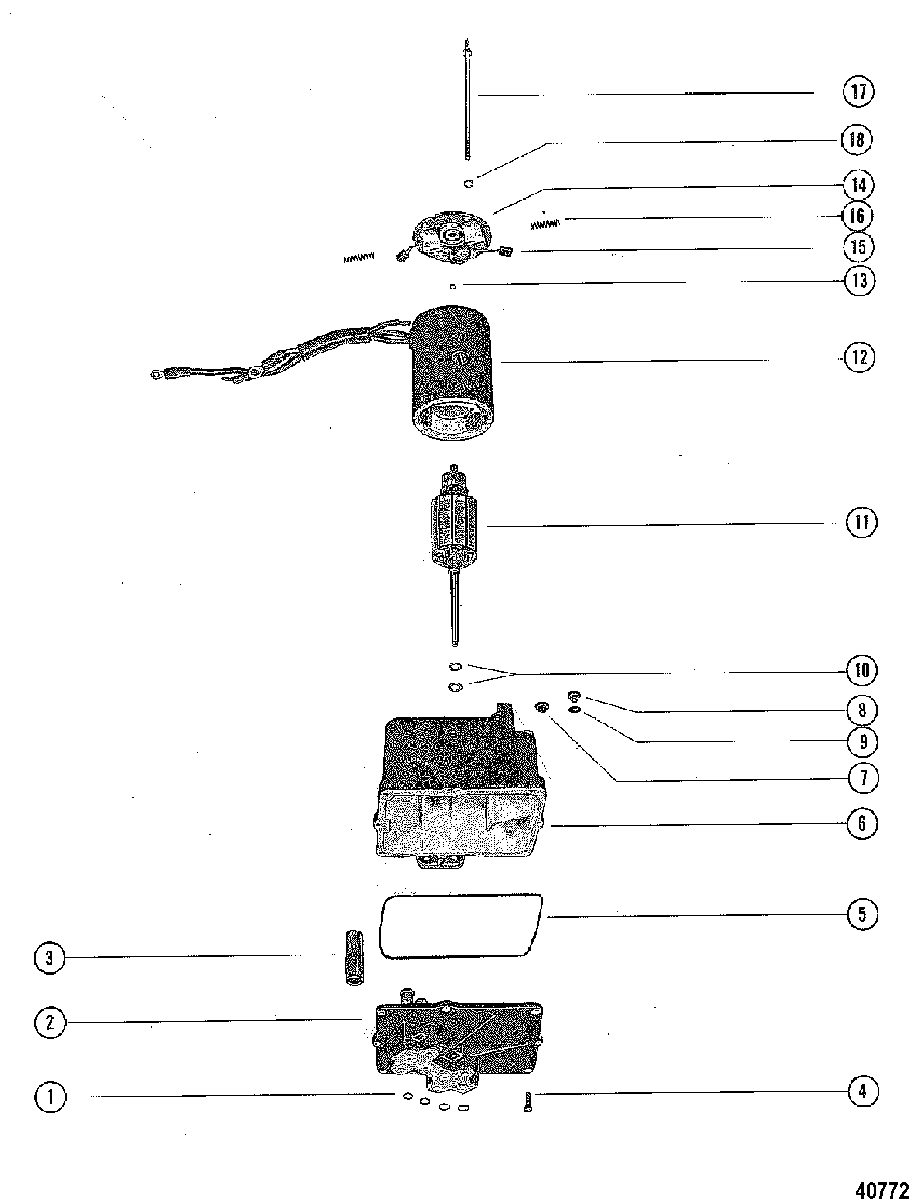

HYDRAULIC PUMP ASSEMBLY для Mercury - 1150 8008665 THRU 8051949
-
№АртикулНазвание
-
-45060A7 PUMP ASSEMBLY, Hydraulic, COMPLETEPUMP ASSEMBLY, Hydraulic, COMPLETE
-
125-48171 O-RING, HYDRAULIC PUMPO-RING, HYDRAULIC PUMP
-
2392-7734 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
3392-2618 CAN, VALVE BODYCAN, VALVE BODY
-
410-20411 SCREW, (.190-24 x .62), VALVE BODY TO RESERVIORSCREW, (.190-24 x .62), VALVE BODY TO RESERVIOR
-
5392-7735 SEAL, RESERVIOR TO VALVE BODY AND GEARSEAL, RESERVIOR TO VALVE BODY AND GEAR
-
6392-2939 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
710-62269 SCREW, VENT - HYDRAULIC PUMPSCREW, VENT - HYDRAULIC PUMP
-
810-79953Q04 SCREW, (.375-16), FILLER - HYDRAULIC PUMPSCREW, (.375-16), FILLER - HYDRAULIC PUMP
-
912-191833 WASHER, SEALING - FILLER SCREWWASHER, SEALING - FILLER SCREW
-
10392-2623 WASHER, THRUST - ARMATUREWASHER, THRUST - ARMATURE
-
11392-2943 ARMATURE, FIELD AND FRAMEARMATURE, FIELD AND FRAME
-
12392-2942 FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
13392-2944 BALL, COMMUTATOR END PLATEBALL, COMMUTATOR END PLATE
-
14392-2940 PLATE ASSEMBLY, COMMUTATOR ENDPLATE ASSEMBLY, COMMUTATOR END
-
15392-8989 BRUSH SET, COMMUTATOR END PLATEBRUSH SET, COMMUTATOR END PLATE
-
16392-2529 SPRING SET, BRUSH TENSIONSPRING SET, BRUSH TENSION
-
17392-2938 BOLT SET, THRU - PLATE AND FRAME TO RESERVOIRBOLT SET, THRU - PLATE AND FRAME TO RESERVOIR
-
1813-26996 LOCKWASHER, (#10) Stainless Steel, THRU BOLTLOCKWASHER, (#10) Stainless Steel, THRU BOLT
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARB, USA-3761034/Aus.-8014004/Canada-7025597 and Below
- CARB, USA-3761035/Aus.-8014005/Canada-7025598 and Up
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET AND REVERSE LOCK
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE
- DISTRIBUTOR HOUSING AND ROTOR
- DRIVESHAFT HOUSING ASSEMBLY
- ELECTRICAL COMPONENTS
- END CAP, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE
- FLYWHEEL ASSEMBLY AND STATOR
- FUEL PUMP, USA-3761034/Aus.-8014004/Canada-7025597 and Below
- FUEL PUMP, USA-3761035/Aus.-8014005/Canada-7025598 and Up
- GEAR HOUSING ASSEMBLY, DRIVESHAFT
- GEAR HOUSING ASSEMBLY, Propshaft
- HYDRAULIC PUMP AND CONTROL PANEL
- • HYDRAULIC PUMP ASSEMBLY
- IGNITION COIL
- MISCELLANEOUS PARTS
- POWER TRIM CYLINDER REPAIR KITS
- PROPELLERS
- SWIVEL BRACKET ASSEMBLY
- TOP COWL AND SUPPORT BRACKETS
- TRIM CYLINDERS AND HYDRAULIC HOSES
