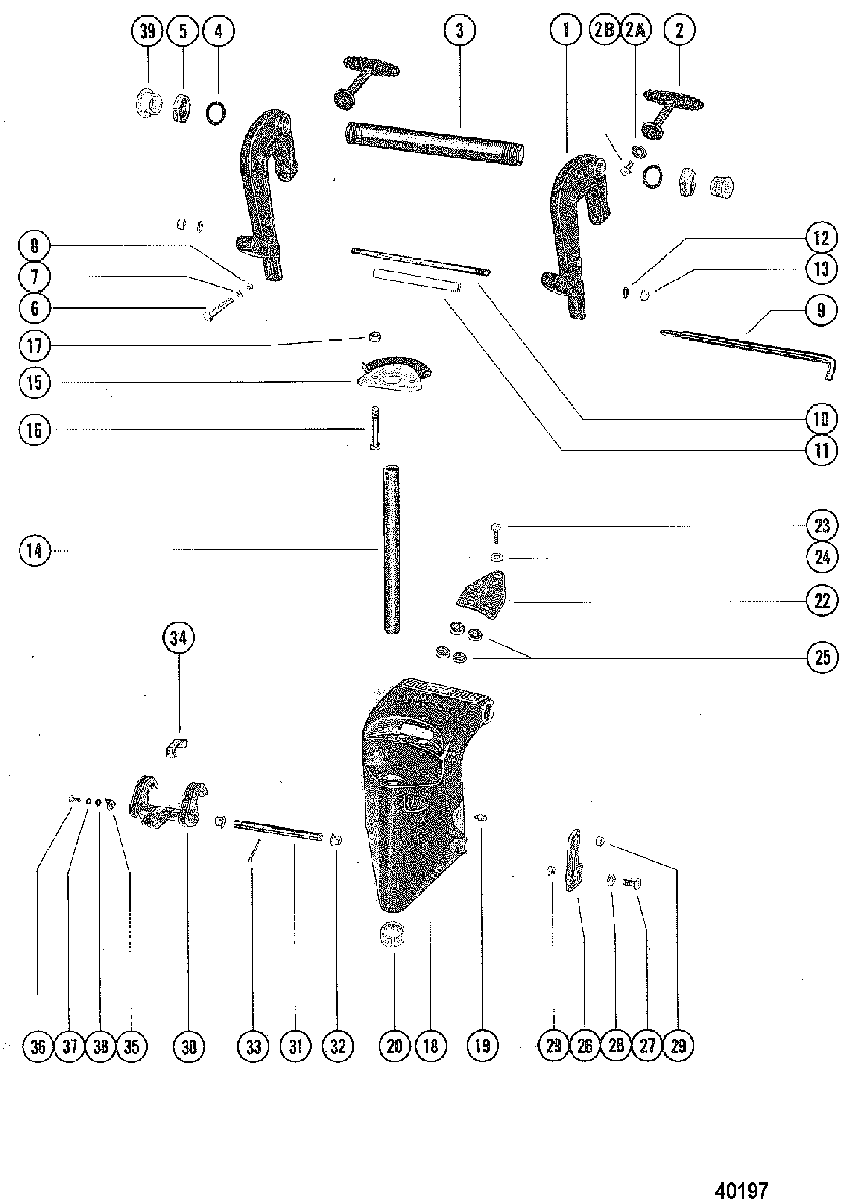

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 200, 20 8045199 & Up
-
№АртикулНазвание
-
11427-5632A3 CLAMP BRACKET ASSEMBLY
WASHER ATTACHER WITH A RETAINING RINGCLAMP BRACKET ASSEMBLY
WASHER ATTACHER WITH A RETAINING RING -
210-77190A3 THUMB SCREW ASSEMBLY
WASHER ATTACHER WITH A RETAINING RINGTHUMB SCREW ASSEMBLY
WASHER ATTACHER WITH A RETAINING RING -
11427-5632A3 CLAMP BRACKET ASSEMBLY
WASHER ATTACHED WITH A SCREWCLAMP BRACKET ASSEMBLY
WASHER ATTACHED WITH A SCREW -
210-77190A3 THUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A SCREWTHUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A SCREW -
2A12-818884 WASHER
WASHER ATTACHED WITH A SCREWWASHER
WASHER ATTACHED WITH A SCREW -
2B10-768042 SCREW
WASHER ATTACHED WITH A SCREWSCREW
WASHER ATTACHED WITH A SCREW -
374249 TILT TUBE, CLAMP BRACKETTILT TUBE, CLAMP BRACKET
-
412-71421 WASHER, Nylon, CLAMP BRACKET TILT TUBEWASHER, Nylon, CLAMP BRACKET TILT TUBE
-
511-858869 NUT, (.875-14), TILT TUBE FASTENINGNUT, (.875-14), TILT TUBE FASTENING
-
610-67979 BOLT, CLAMP BRACKET TO TRANSOM(2 3/4")BOLT, CLAMP BRACKET TO TRANSOM(2 3/4")
-
712-67981 WASHER, CLAMP BRACKET SCREWWASHER, CLAMP BRACKET SCREW
-
811-82670910 NUT, (.312-18), CLAMP BRACKET SCREWNUT, (.312-18), CLAMP BRACKET SCREW
-
917-56373A2 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
1016-59620 STUD, CLAMP BRACKET (8")STUD, CLAMP BRACKET (8")
-
1123-59621T SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
1213-26993 LOCKWASHER, (.312), CLAMP BRACKET STUDLOCKWASHER, (.312), CLAMP BRACKET STUD
-
1311-28770 NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUDNUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD
-
1466557 SWIVEL PINSWIVEL PIN
-
1533423 DISC, Co-PilotDISC, Co-Pilot
-
1610-26132 SCREW (2 1/2")
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & BelowSCREW (2 1/2")
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below -
1610-35385 SCREW, (.312-18 x 1-3/4)
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & UpSCREW, (.312-18 x 1-3/4)
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up -
1711-29250 NUT, (5/16-24)
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & BelowNUT, (5/16-24)
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below -
181461-6667A1 SWIVEL BRACKET ASSEMBLY
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & BelowSWIVEL BRACKET ASSEMBLY
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below -
181461-6667A1 SWIVEL BRACKET ASSEMBLY
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & UpSWIVEL BRACKET ASSEMBLY
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up -
1922-74036 FITTING, GreaseFITTING, Grease
-
2023-64651 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
2273014A1 PLATE ASSEMBLY, CO-PILOTPLATE ASSEMBLY, CO-PILOT
-
2310-78841 SCREW, (.312-24 x 1.500)SCREW, (.312-24 x 1.500)
-
2412-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
2520203 DISCDISC
-
2663310A1 LEVER ASSEMBLY, TILT STOPLEVER ASSEMBLY, TILT STOP
-
2710-41433 SCREW, RETAINING - LEVER TO SWIVEL BRACKETSCREW, RETAINING - LEVER TO SWIVEL BRACKET
-
2813-31030 WAVE WASHERWAVE WASHER
-
2911-36069 NUT, TILT STOP LEVER SCREWNUT, TILT STOP LEVER SCREW
-
3061012 LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
3126092 ROD, REVERSE LOCK LEVERROD, REVERSE LOCK LEVER
-
3223-26841 BUSHING, NYLON - REVERSE LOCK LEVER RODBUSHING, NYLON - REVERSE LOCK LEVER ROD
-
3318-45882 COTTER PIN, REVERSE LOCK LEVER RODCOTTER PIN, REVERSE LOCK LEVER ROD
-
3461007 RETAINER, ROD - REVERSE LOCKRETAINER, ROD - REVERSE LOCK
-
3570241 STOP, REVERSE LOCKSTOP, REVERSE LOCK
-
3610-71056 SCREW, (.250-28 x .560), REVERSE STOP TO SWIVEL BRACKETSCREW, (.250-28 x .560), REVERSE STOP TO SWIVEL BRACKET
-
3713-26992 LOCKWASHER, (.250) Stainless Steel, REVERSE STOP SCREWLOCKWASHER, (.250) Stainless Steel, REVERSE STOP SCREW
-
3812-71055 WASHER, REVERSE STOP SCREWWASHER, REVERSE STOP SCREW
-
3919-39333 PLUG, TILT TUBEPLUG, TILT TUBE
