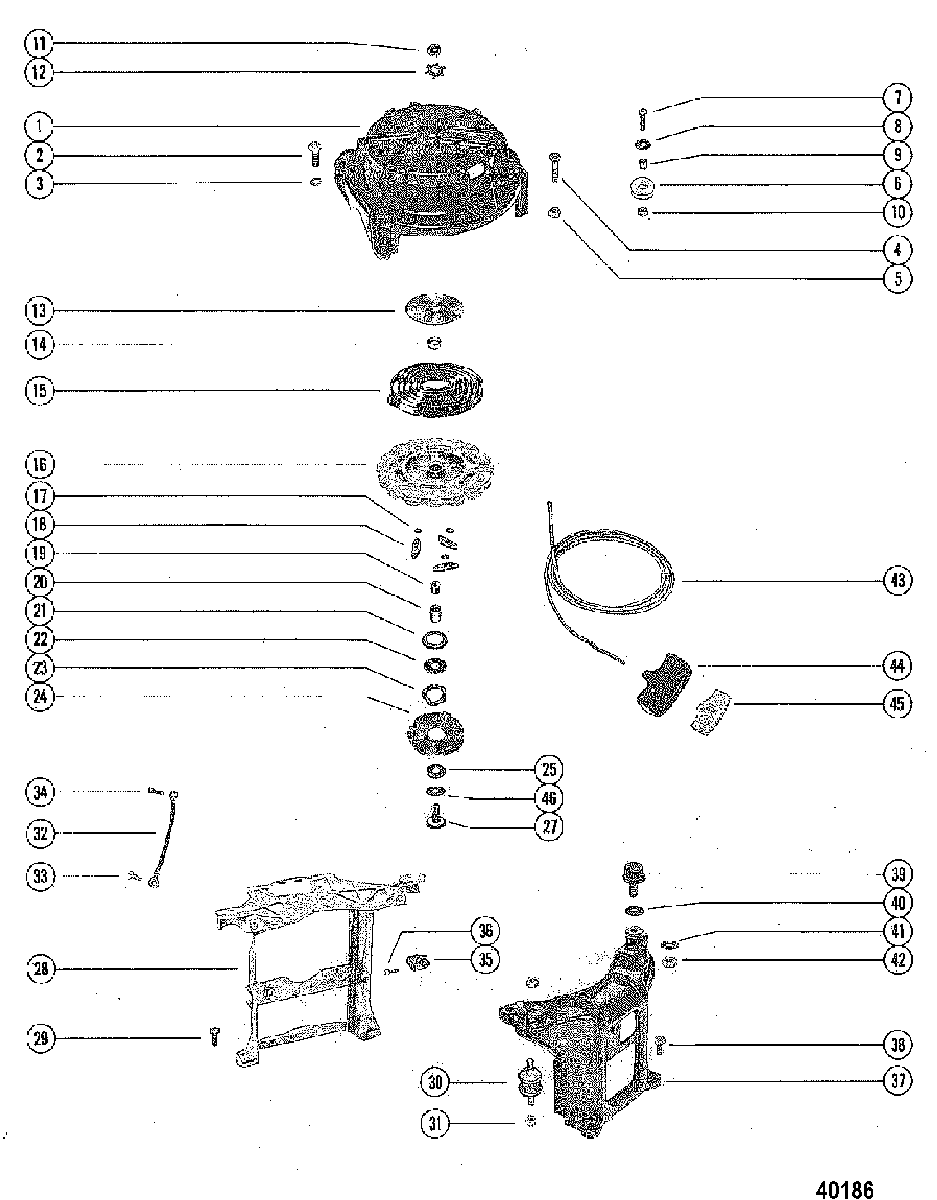

STARTER ASSEMBLY для Mercury - 200, 20 8045199 & Up
-
№АртикулНазвание
-
175349A2 HOUSING ASSEMBLY, STARTER (MANUAL)HOUSING ASSEMBLY, STARTER (MANUAL)
-
210-37562 SCREW, (.312-18 x 1.00) Stainless SteelSCREW, (.312-18 x 1.00) Stainless Steel
-
313-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
410-56500 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
410-69029 SCREW, (.250-28 x 1.750)SCREW, (.250-28 x 1.750)
-
511-35888 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
655860 PULLEY, STARTER CABLEPULLEY, STARTER CABLE
-
710-37892 SCREW, (.190-32 x 1.00), PULLEY TO STARTERSCREW, (.190-32 x 1.00), PULLEY TO STARTER
-
894121 RETAINER, PULLEY SCREWRETAINER, PULLEY SCREW
-
923-309772 SPACER, PULLEY SCRWSPACER, PULLEY SCRW
-
1011-20110 NUT, (#10-32), PULLEY SCREWNUT, (#10-32), PULLEY SCREW
-
1111-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
1214-61004 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
1365890 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
1423-28912 BUSHING, SHEAVE SHAFTBUSHING, SHEAVE SHAFT
-
1524-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1676321A1 SHEAVE ASSEMBLY, StarterSHEAVE ASSEMBLY, Starter
-
1713-36206 WAVE WASHER, WAVE - STARTER PAWLWAVE WASHER, WAVE - STARTER PAWL
-
1830596 PAWL, STARTERPAWL, STARTER
-
1923-28919 BUSHING, NYLON - SHEAVE SHAFT SPACERBUSHING, NYLON - SHEAVE SHAFT SPACER
-
2023-61005 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
2126179 RETAINERRETAINER
-
2212-35559 WASHERWASHER
-
2313-20160 WAVE WASHERWAVE WASHER
-
2430595 PLATEPLATE
-
2512-57860 WASHERWASHER
-
2761003 SHAFT, SHEAVESHAFT, SHEAVE
-
2876300 BRACKET, MOUNTING - TOP COWL (REAR)BRACKET, MOUNTING - TOP COWL (REAR)
-
2910-37562 SCREW, (.312-18 x 1.00) Stainless SteelSCREW, (.312-18 x 1.00) Stainless Steel
-
3057927 MOUNT, RUBBER - SUPPORT BRACKETMOUNT, RUBBER - SUPPORT BRACKET
-
3111-8267089 NUT, (.250-28)NUT, (.250-28)
-
3246934A1 WIRE ASSEMBLY, Ground, REAR BRACKETWIRE ASSEMBLY, Ground, REAR BRACKET
-
3284-76181 WIRE ASSEMBLY, Ground, REAR BRACKETWIRE ASSEMBLY, Ground, REAR BRACKET
-
3310-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
3410-98256 SCREWSCREW
-
3560299 RETAINER, HIGH TENSION WIRESRETAINER, HIGH TENSION WIRES
-
3610-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
3776097 BRACKET, MOUNTING - TOP COWL (FRONT)BRACKET, MOUNTING - TOP COWL (FRONT)
-
3810-37562 SCREW, (.312-18 x 1.00) Stainless SteelSCREW, (.312-18 x 1.00) Stainless Steel
-
3960577 MOUNT, RUBBER - SUPPORT BRACKETMOUNT, RUBBER - SUPPORT BRACKET
-
4012-69056 WASHER, (.255 x .625 x .0312), RUBBER MOUNTWASHER, (.255 x .625 x .0312), RUBBER MOUNT
-
4113-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNTLOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
-
4211-29598 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
4350-12066Q10 CABLE ASSEMBLY, Starter (MANUAL)CABLE ASSEMBLY, Starter (MANUAL)
-
4430782 HANDLE, STARTER CABLE (MANUAL)
SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947HANDLE, STARTER CABLE (MANUAL)
SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947 -
4479470A1 HANDLE, START CABLE (MANUAL)
SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 THRU USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212HANDLE, START CABLE (MANUAL)
SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 THRU USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 -
4579470A1 RETAINER (MANUAL)
SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947RETAINER (MANUAL)
SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947 -
4579470A1 RETAINER ASSEMBLY
SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 THRU USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212RETAINER ASSEMBLY
SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 THRU USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 -
44/4579470A1 RETAINER KIT, Rope (MANUAL)
SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & UpRETAINER KIT, Rope (MANUAL)
SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up -
4615-20219 SHIM, SHEAVE SHAFT - MANUALSHIM, SHEAVE SHAFT - MANUAL
