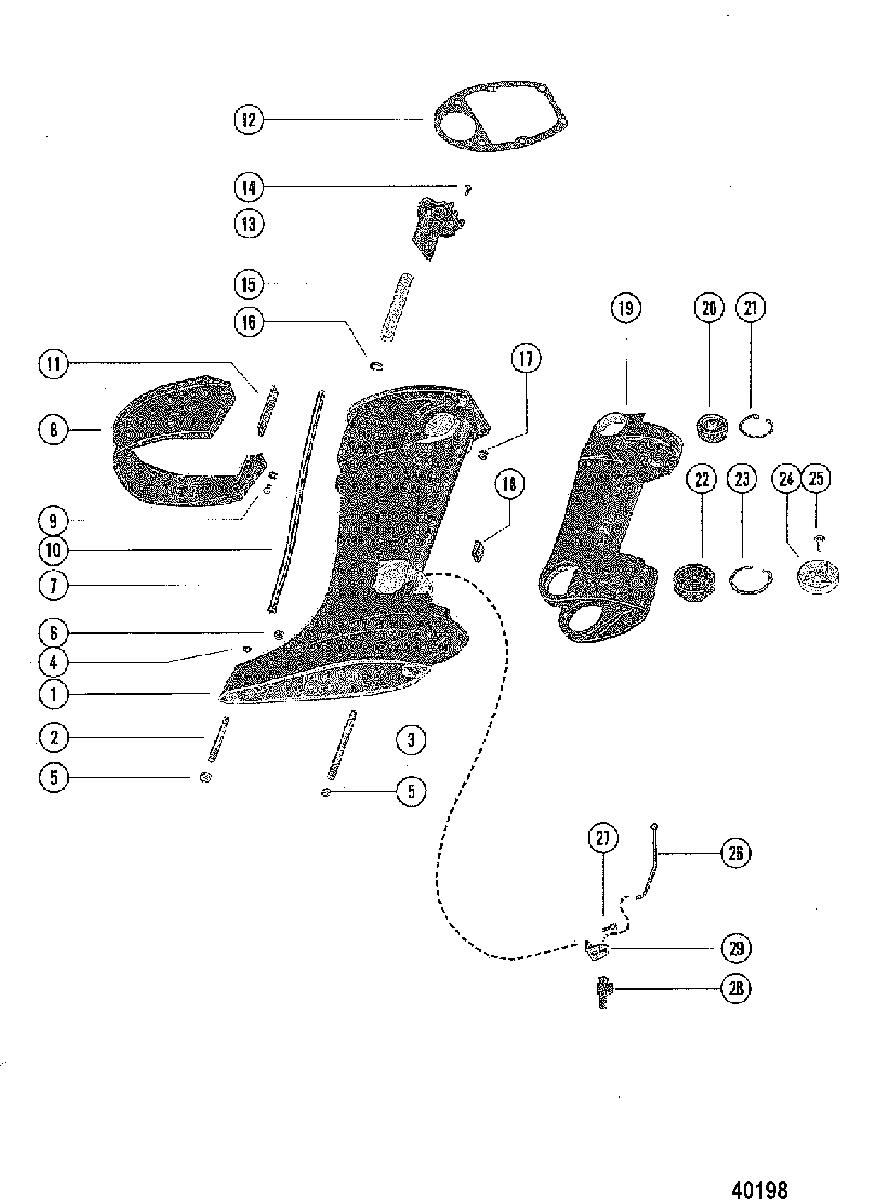

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 200, 20 8045199 & Up
-
№АртикулНазвание
-
11561-6007A2 HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT)HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT) -
11560-7679A3 HOUSING ASSEMBLY, Driveshaft
(LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & BelowHOUSING ASSEMBLY, Driveshaft
(LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below -
11560-7679A3 HOUSING ASSEMBLY, Driveshaft
(LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & UpHOUSING ASSEMBLY, Driveshaft
(LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up -
216-66373 STUD, DRIVESHAFT HSG. TO GEAR HSG. (2 5/16")STUD, DRIVESHAFT HSG. TO GEAR HSG. (2 5/16")
-
316-58134 STUD, DRIVESHAFT HSG. TO GEAR HSG. (3 15/16")STUD, DRIVESHAFT HSG. TO GEAR HSG. (3 15/16")
-
419-32298 PLUG, DRIVESHAFT HOUSING STUDPLUG, DRIVESHAFT HOUSING STUD
-
511-82670911 NUT, (.312-24) Stainless Steel, DRIVESHAFT HOUSING STUDNUT, (.312-24) Stainless Steel, DRIVESHAFT HOUSING STUD
-
611-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
732-39586 TUBE, WATER OUTLET
(SHORT SHAFT)TUBE, WATER OUTLET
(SHORT SHAFT) -
732-39587 TUBE, WATER OUTLET
(LONG SHAFT)TUBE, WATER OUTLET
(LONG SHAFT) -
839301 COVER, TRIMCOVER, TRIM
-
910-69013 SCREW, (#10-16 x .880)SCREW, (#10-16 x .880)
-
1025-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
-
1139353 SEAL, RUBBER-TRIM COVERSEAL, RUBBER-TRIM COVER
-
1227-39402 GASKETGASKET
-
1339492 PLATE, IDLE RELIEFPLATE, IDLE RELIEF
-
1410-35519 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1532-45054 TUBE, NYLON-IDLE RELIEF TUBETUBE, NYLON-IDLE RELIEF TUBE
-
1625-201951 O-RING, IDLE RELIEF TUBEO-RING, IDLE RELIEF TUBE
-
1711-29250 NUT, (.312-24), POWERHEAD STUDSNUT, (.312-24), POWERHEAD STUDS
-
1864076 BUMPER, RUBBER-SADDLEBUMPER, RUBBER-SADDLE
-
191562-7098A1 SADDLE ASSEMBLY
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & BelowSADDLE ASSEMBLY
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below -
191562-7098A1 SADDLE ASSEMBLY
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & UpSADDLE ASSEMBLY
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up -
2085003 MOUNT, RUBBER
(SHORT SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & BelowMOUNT, RUBBER
(SHORT SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below -
2085002 MOUNT, RUBBER
(LONG SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & BelowMOUNT, RUBBER
(LONG SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below -
2085003 MOUNT, RUBBER
(SHORT SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & UpMOUNT, RUBBER
(SHORT SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up -
2085002 MOUNT, RUBBER
(LONG SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & UpMOUNT, RUBBER
(LONG SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up -
2153-23720 RING, RetainingRING, Retaining
-
2279948A1 MOUNT, RUBBER-LOWER
(SHORT SHAFT SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & BelowMOUNT, RUBBER-LOWER
(SHORT SHAFT SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below -
2279947A1 MOUNT, RUBBER-LOWER
(LONG SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & BelowMOUNT, RUBBER-LOWER
(LONG SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below -
2279948A1 MOUNT, RUBBER-LOWER
(SHORT SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & UpMOUNT, RUBBER-LOWER
(SHORT SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up -
2279947A1 MOUNT, RUBBER-LOWER
(LONG SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & UpMOUNT, RUBBER-LOWER
(LONG SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up -
2353-8M0051043 RING, RetainingRING, Retaining
-
2470317 COVER, LOWER MOUNT
SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & BelowCOVER, LOWER MOUNT
SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below -
2479908 COVER, LOWER MOUNT
SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & UpCOVER, LOWER MOUNT
SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up -
2510-28638 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2676536 LINK ROD, REVERSE LOCKLINK ROD, REVERSE LOCK
-
2710-65414 SCREW, CAM RETAINER TO DRIVESHAFT HOUSING (3/4")SCREW, CAM RETAINER TO DRIVESHAFT HOUSING (3/4")
-
2865216 CAM, REVERSE LOCKCAM, REVERSE LOCK
-
2972007 RETAINER, REVERSE LOCK CAMRETAINER, REVERSE LOCK CAM
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR AND CHOKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- • DRIVESHAFT HOUSING ASSEMBLY
- ELECTRIC COMPONENTS
- FLYWHEEL, IGNITION COIL AND SWITCH BOX
- GEAR HOUSING ASSEMBLY, DRIVESHAFT
- GEAR HOUSING ASSEMBLY, PROPELLER SHAFT
- MISCELLANEOUS PARTS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- REMOTE CONTROL ATTACHMENT PARTS(ELECTRIC)
- SHIFT CONTROL LINKAGE
- STARTER ASSEMBLY
- STEERING HANDLE ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL, WRAP AROUND COWL AND FRONT COVER
- VOLTAGE REGULATOR(BELGUIM ONLY)
