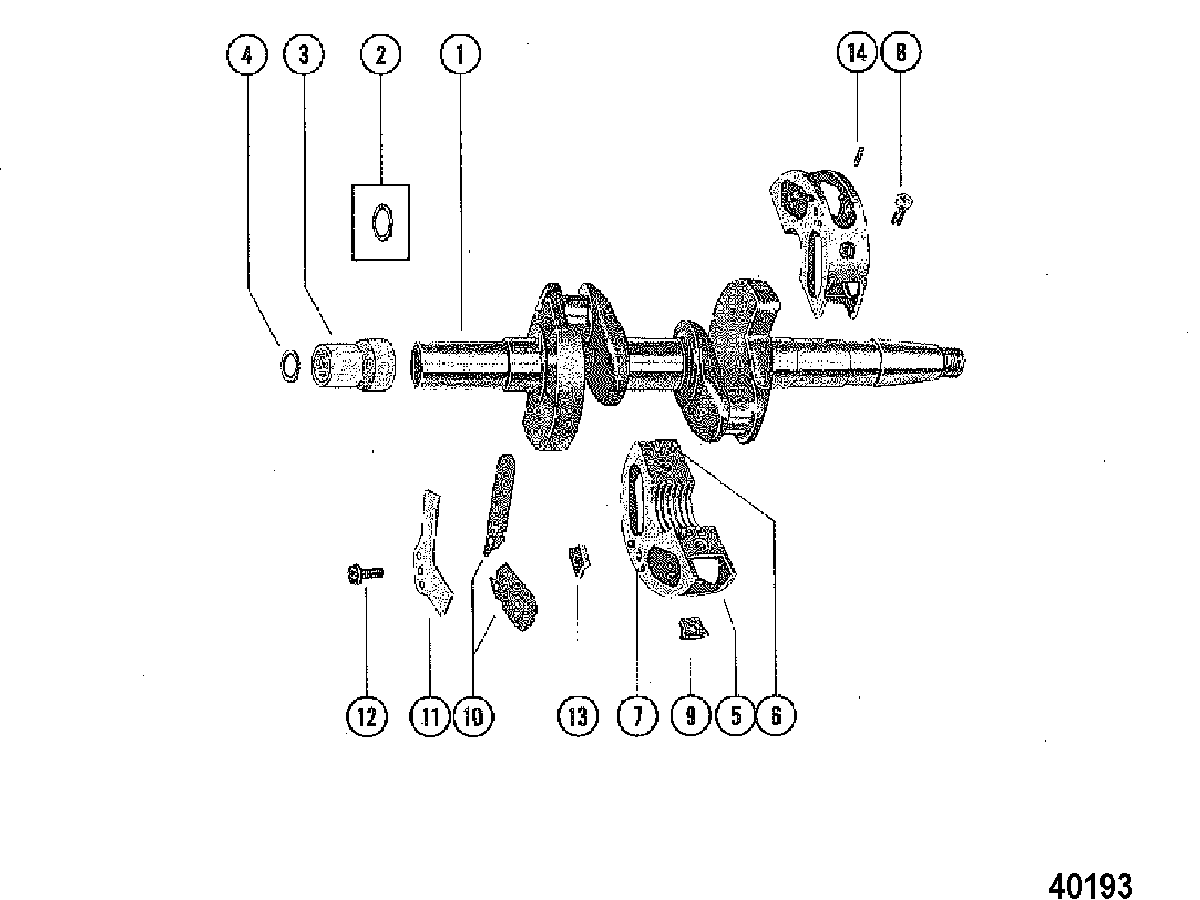

CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY для Mercury - 200, 20 8045199 & Up
-
№АртикулНазвание
-
1415-6099 CRANKSHAFT
SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & BelowCRANKSHAFT
SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below -
226-73315 SEAL, CRANKSHAFT
SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & BelowSEAL, CRANKSHAFT
SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below -
1415-7631A1 CRANKSHAFT ASSEMBLY
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & UpCRANKSHAFT ASSEMBLY
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up -
388224A1 CARRIER ASSEMBLY
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & UpCARRIER ASSEMBLY
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up -
412-88740 WASHER, FELT - CARRIER
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & UpWASHER, FELT - CARRIER
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up -
5534-3267T25 BEARING ASSEMBLY, MainBEARING ASSEMBLY, Main
-
617-20032 PIN, Dowel, CENTER MAIN BEARINGPIN, Dowel, CENTER MAIN BEARING
-
717-65855 PIN, Dowel, REED STOPPIN, Dowel, REED STOP
-
810-45775 SCREW, (#12-28 x .560)SCREW, (#12-28 x .560)
-
911-45774 NUT, CENTER MAIN BEARING CLAMPING SCREWNUT, CENTER MAIN BEARING CLAMPING SCREW
-
1034-88498A1 REED SET, CENTER MAIN BEARING (MATCHED)REED SET, CENTER MAIN BEARING (MATCHED)
-
1134-64632 STOP, Reed, MAIN BEARING REED VALVESTOP, Reed, MAIN BEARING REED VALVE
-
1210-77280 SCREW, (.190-32 x .560), REED STOP MOUNTINGSCREW, (.190-32 x .560), REED STOP MOUNTING
-
1311-20110 NUT, (#10-32), REED STOP MOUNTING SCREWNUT, (#10-32), REED STOP MOUNTING SCREW
-
1417-20032 PIN, Dowel, MAIN BEARING TO CYLINDER BLOCKPIN, Dowel, MAIN BEARING TO CYLINDER BLOCK
